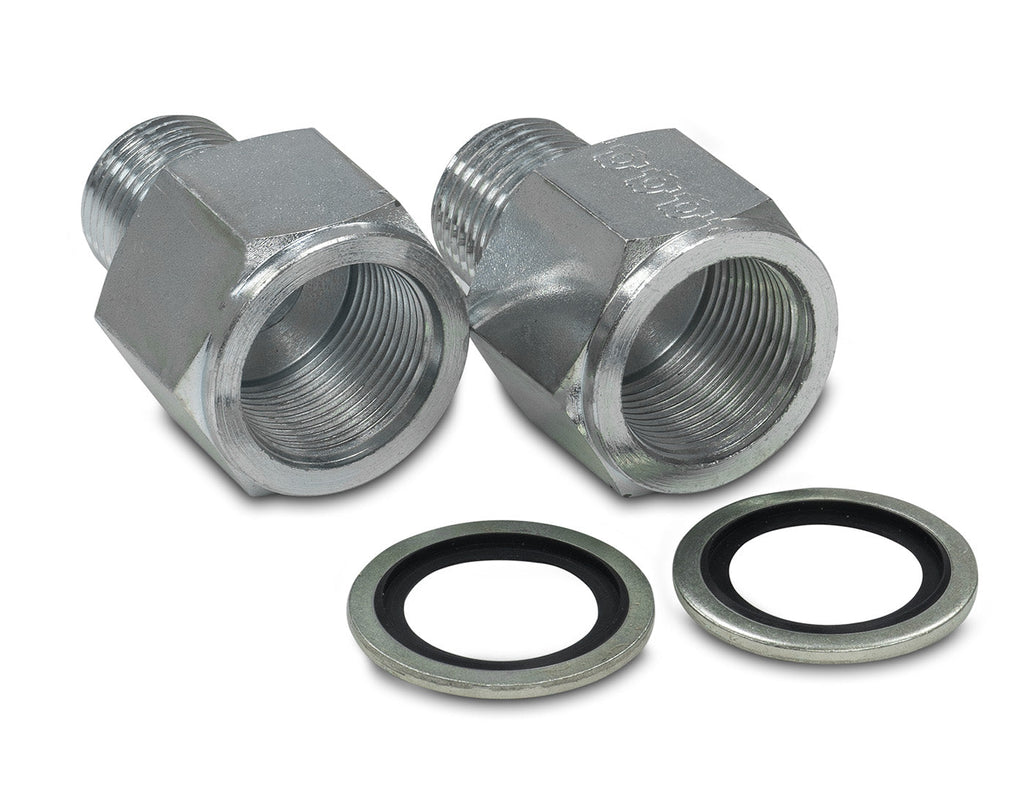

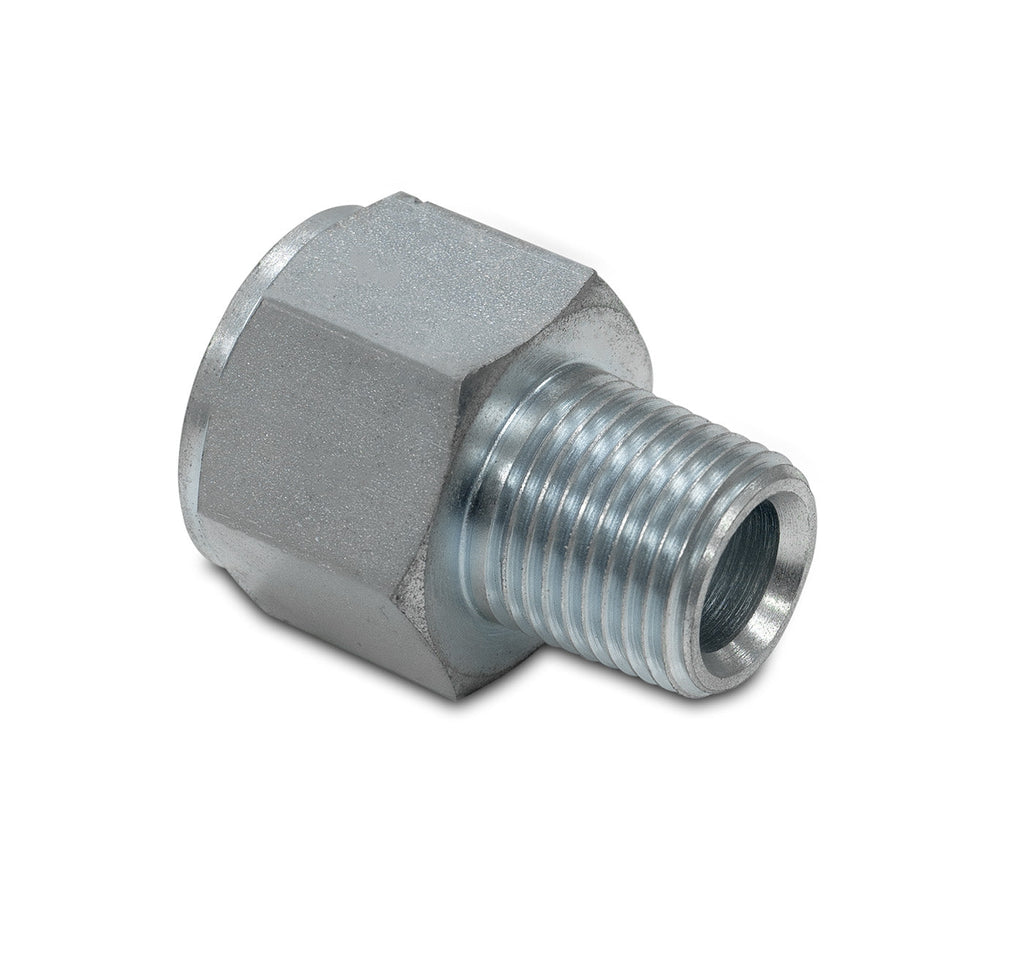

BVV M24 - 1/2" MNPT Huber Adapter
This zinc plated adapter is meant to be used on Huber Unistats with male M24 threads to adapt to 1/2" MNPT. These fittings must be used in conjunction with M24 Bonded seal washers to create a complete seal.

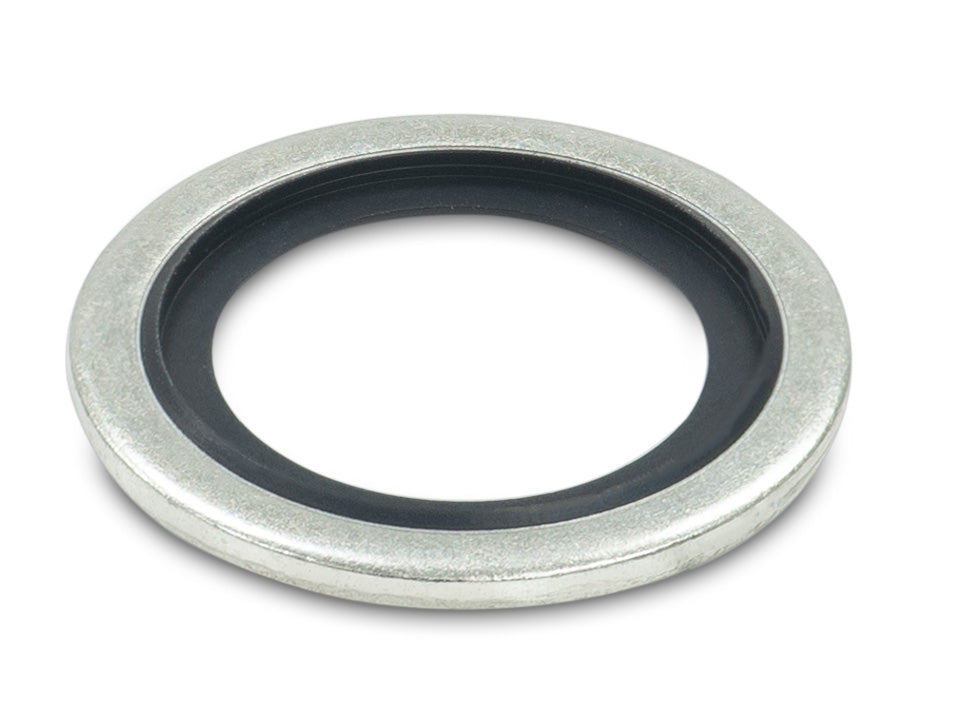

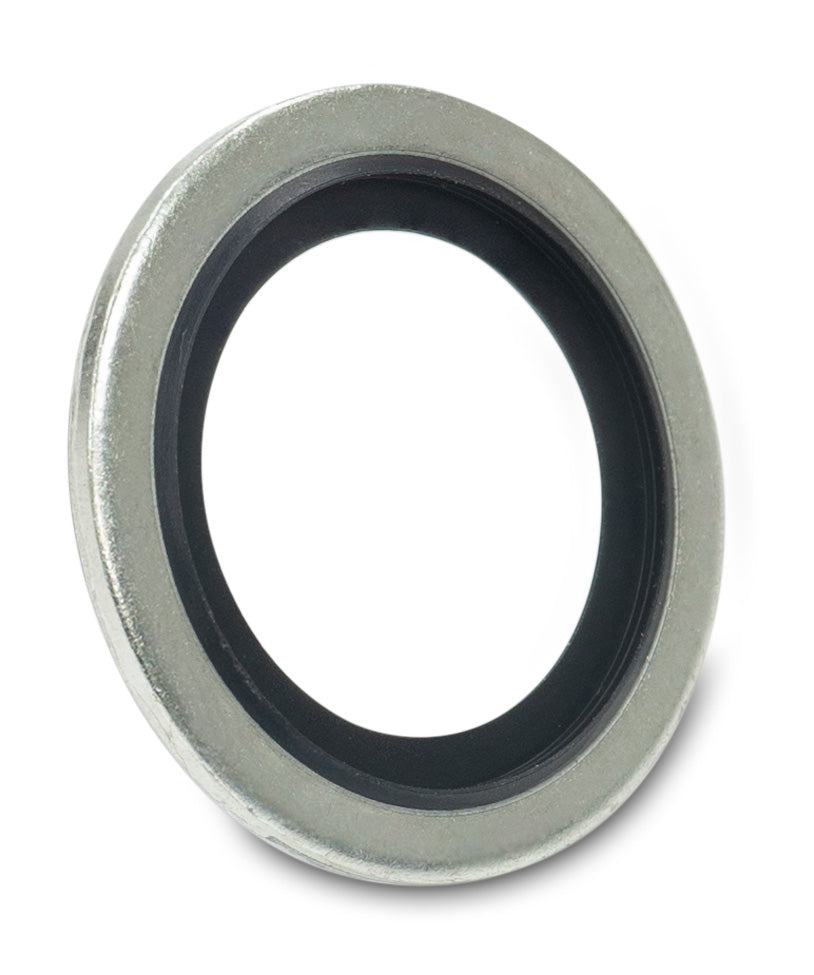

| Bonded Seal Specifications | |
|---|---|
| For Thread Type | Metric |
| For Gender | Male |
| For Thread Size | M24 |
| Washer Material | Steel |
| Gasket Material | Buna-N Rubber |
| Temperature Range | -20° to 230° F |
| Thickness | 2mm |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
