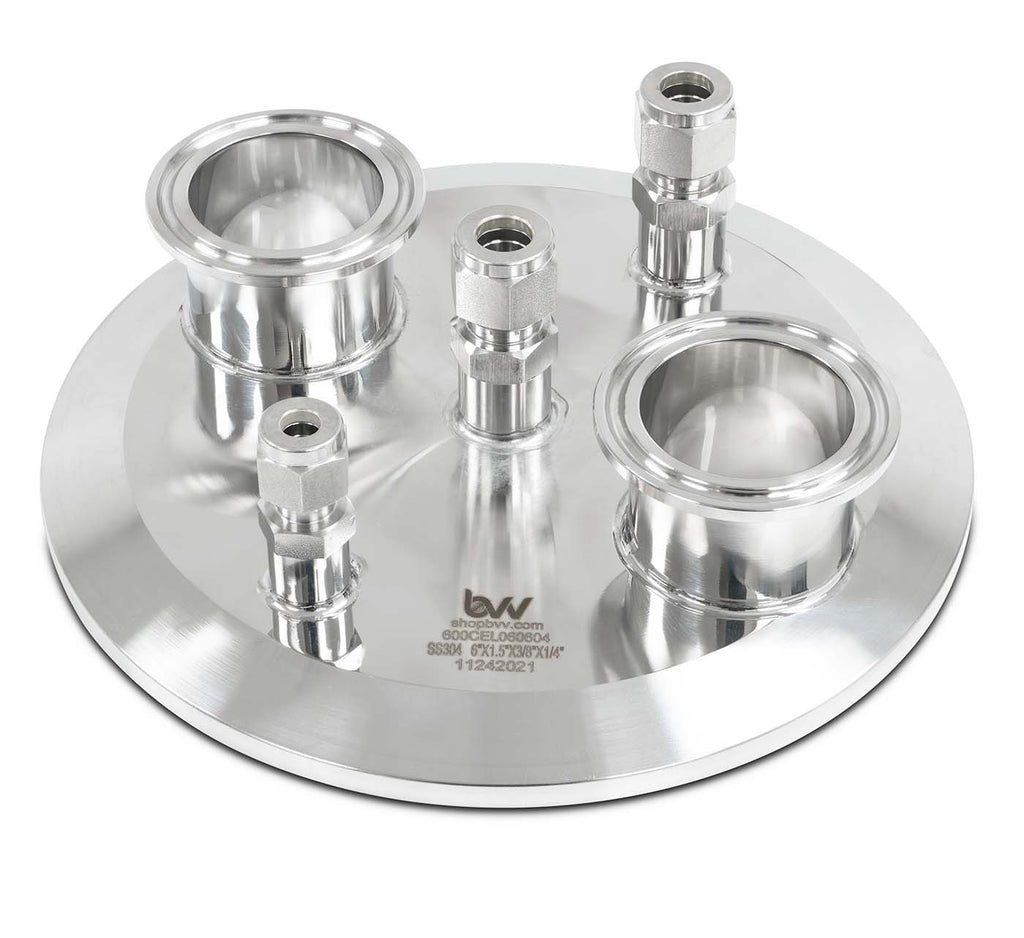

BVV Compression Extractor End Cap (2) 1.5" x (2) 3/8" Compression x 1/4" Compression
This End Cap come with (2) 3/8" and (1) 1/4" Female Compression Connection and (2) 1.5" Tri-Clamp ferrule welded to the end cap. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 3 connections are welded on a 6" Tri-Clamp End Cap.
| Specification | |
|---|---|
| Material: | 304 Stainless Steel |
| Connection Types: | (2) 1.5" Tri-Clamp |
| 6" Tri-Clamp | |
| (2) 3/8" and (1) 1/4" Female Compression Connection | |
| Standard: | 3A |
