Stop losing time, energy, and yield to outdated solvent recovery methods. The BVV 2540 Nanofiltration Skid delivers industrial-grade ethanol recovery at up to 30 gallons per hour — without heat, without compromise. Engineered for Class 1 Division 1 environments, this skid is built for serious extraction operations that demand throughput, precision, and energy efficiency in a single compact footprint.
Why the BVV 2540 Nanofiltration Skid
Traditional rotary evaporators are slow, labor-intensive, and thermally destructive to sensitive compounds. The BVV 2540 Nanofiltration Skid replaces up to 7× 50L rotary evaporators with a single, automated system — recovering ethanol at scale without applying heat. This means your target cannabinoids, terpenes, and botanical extracts remain intact while you dramatically cut energy costs and labor overhead.
Unlike falling film evaporators that consume significant power and require constant thermal management, the 2540 Skid operates on membrane-based nanofiltration technology driven by a Variable Frequency Drive pump. The result is a system that qualifies for energy-saving rebates, runs continuously with minimal operator intervention, and scales with your production demands — available in 15 GPH and 30 GPH configurations with Solvent Recovery or Purification membrane options.
Key Benefits
- Heat-Free Solvent Recovery – Recovers ethanol and methanol without thermal degradation, preserving sensitive target compounds throughout the process.
- Replace Up to 7× Rotary Evaporators – Consolidate your extraction floor and eliminate bottlenecks with a single high-throughput skid.
- Energy Rebate Eligible – Dramatically lower energy consumption compared to falling film evaporators qualifies this unit for utility energy-saving rebate programs.
- C1D1 Certified Design – Built to Class 1 Division 1 standards for safe operation in solvent-rich, hazardous environments.
- Variable Frequency Drive Control – Precise, adjustable flow control via VFD for optimized membrane performance across varying feed concentrations.
- Dual Configuration Options – Choose Solvent Recovery or Purification membranes to match your specific extraction workflow.
- Integrated Chiller & Heat Exchanger – Inline retentate cooling maintains optimal operating temperatures without external equipment.
- Compact Industrial Footprint – At 30"×39"×79" and 400 lbs, this skid fits into existing extraction suites without major facility modifications.
Use Cases
- Large-Scale Ethanol Extraction Facilities – Replace multiple rotary evaporators and recover ethanol continuously at 15 or 30 GPH to keep pace with high-volume biomass processing.
- Botanical Extract Purification – Use the Purification membrane configuration to concentrate and refine botanical extracts with minimal thermal impact.
- Solvent Recycling Operations – Recover and recycle ethanol or methanol for reuse, reducing solvent costs and waste disposal requirements.
- Cannabis & Hemp Processors – Ideal for winterized crude processing where preserving cannabinoid and terpene profiles is critical.
- Commercial Extraction Labs Scaling Up – Upgrade from batch-based evaporation to continuous-flow nanofiltration without rebuilding your entire facility.
- Energy-Conscious Operations – Facilities seeking to reduce their carbon footprint and qualify for utility rebates through lower-energy solvent recovery.
Directions for Use
- Position the skid in a C1D1-rated area with adequate ventilation and access to 230V/60Hz/1-phase power (13A).
- Connect 1.5" intake and retentate lines to your feed tank and collection vessel.
- Connect 1/2" permeate and pressure relief lines per the included plumbing diagram.
- Power on the Polyscience chiller and allow the heat exchanger to reach operating temperature before starting the pump.
- Use the VFD panel to set target flow rate; adjust manual pressure controls to achieve desired transmembrane pressure.
- Monitor the dual 0–1000 PSI pressure gauges and C1D1 flowmeter throughout operation.
- The 700 PSI pressure relief valve with diversion line provides automatic overpressure protection.
- Note: This unit is designed for bulk solvent recovery (approximately 90% of total solvent volume). An additional solvent recovery apparatus is recommended to evaporate to dryness.
Specifications
- Configurations: 15 GPH or 30 GPH
- Membrane Options: Solvent Recovery | Purification
- Compatible Solvents: Ethanol, Methanol
- Nanofiltration Housings: 4× 2540 housings
- Pump: Stainless steel 6 GPM with PTFE seals
- Motor: 7.5HP C1D1 1750 RPM
- VFD: 7.5HP, 1/60/230V, NEMA 4X enclosure (13A)
- Heat Exchanger: Insulated 2"×18"
- Chiller: Polyscience 1.5HP, 230/60/1/23.1A
- Pressure Relief Valve: 700 PSI
- Pressure Gauges: 2× 0–1000 PSI
- Inlet/Retentate Lines: 1.5"
- Permeate/Relief Lines: 1/2"
- Footprint (D×W×H): 30"×39"×79"
- Weight: 400 lbs
- Maximum Pressure Rating: 700 PSI
- Lead Time: 8–12 weeks
- Certifications: Class 1 Division 1 (C1D1)
What Growers Are Saying
"We replaced four rotary evaporators with this single skid and haven't looked back. Throughput is up, energy costs are down, and the extract quality speaks for itself."
— Marcus T., Commercial Extraction Facility
"The heat-free recovery was the deciding factor for us. Our terpene retention improved noticeably compared to our old falling film setup."
— Sarah P., Botanical Extract Producer
"Solid build quality, straightforward controls, and the VFD makes dialing in the right pressure easy. Worth every dollar for a high-volume operation."
— Daniel R., Cannabis Processing Lab
Frequently Asked Questions
What is the difference between the Solvent Recovery and Purification membrane configurations?
The Solvent Recovery configuration is optimized for separating and recovering ethanol or methanol from your extract stream at maximum throughput. The Purification configuration uses membranes designed to concentrate and refine botanical extracts, removing unwanted compounds for a cleaner end product.
Can this skid replace my falling film evaporator entirely?
The 2540 Skid handles approximately 90% of bulk solvent recovery without heat. For complete evaporation to dryness, a supplemental solvent recovery apparatus is recommended. In most operations, it significantly reduces or eliminates the need for a falling film evaporator.
What solvents are compatible with this system?
The BVV 2540 Nanofiltration Skid is designed for use with ethanol and methanol. Contact BVV before using any other solvents to confirm membrane and seal compatibility.
What power requirements does this skid need?
The unit requires 230V/60Hz/1-phase power at 13A for the VFD enclosure. Ensure your facility has appropriate electrical infrastructure before installation.
How do I maintain the nanofiltration membranes?
Membrane lifespan depends on feed quality, operating pressure, and solvent type. Regular flushing with clean solvent after each run and periodic integrity testing are recommended. Replacement membranes are available through BVV.
Does this unit qualify for energy rebates?
Yes — the dramatically lower energy consumption compared to thermal evaporation methods makes this skid eligible for many utility energy-saving rebate programs. Check with your local utility provider for specific program requirements.
What is the lead time for this product?
The BVV 2540 Nanofiltration Skid carries an 8–12 week lead time from order confirmation. Plan accordingly for facility integration and production scheduling.

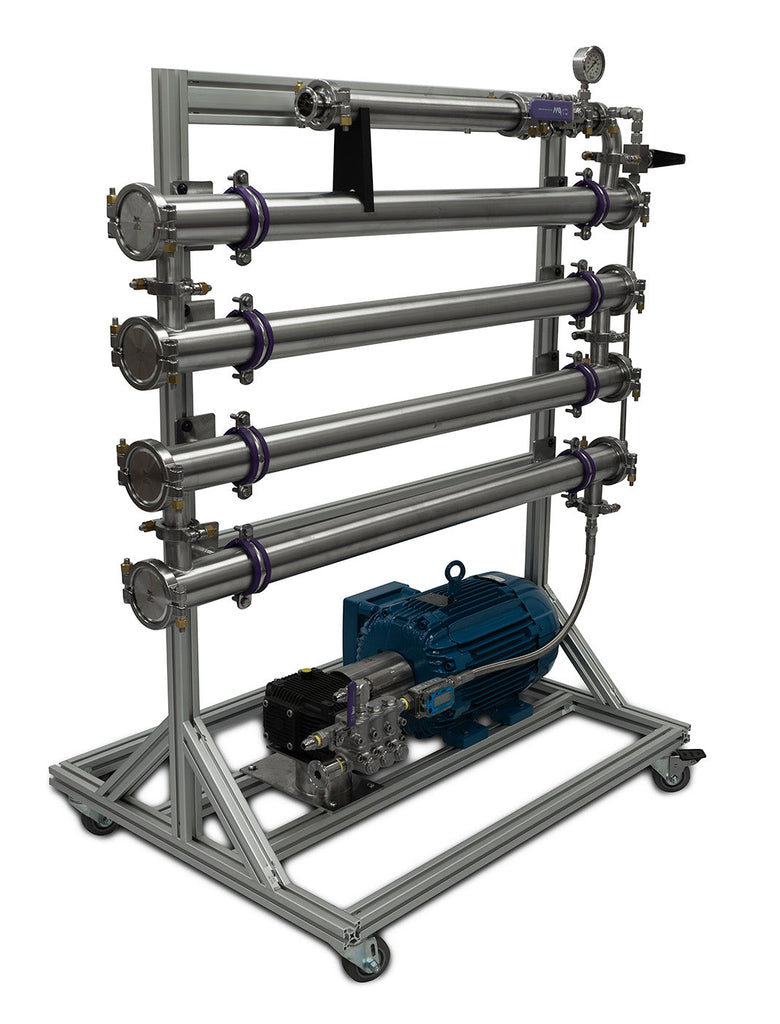

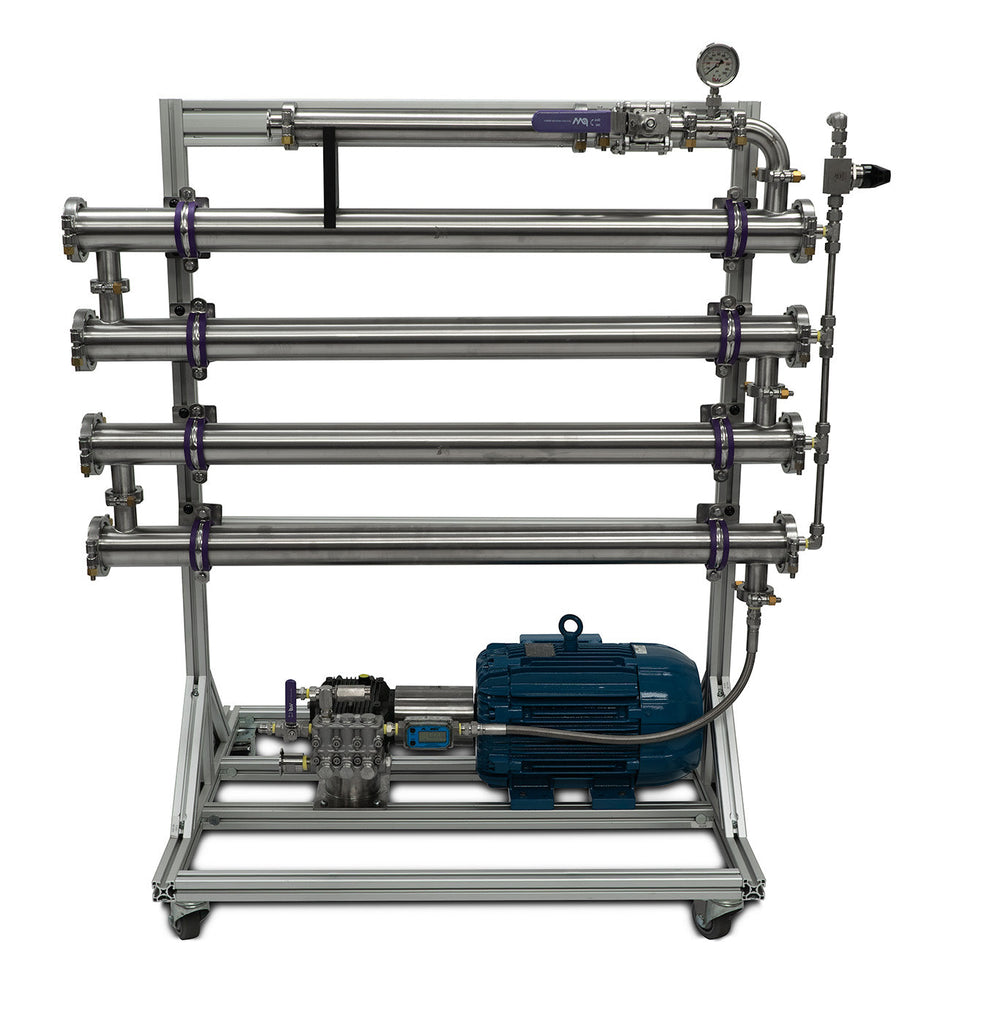

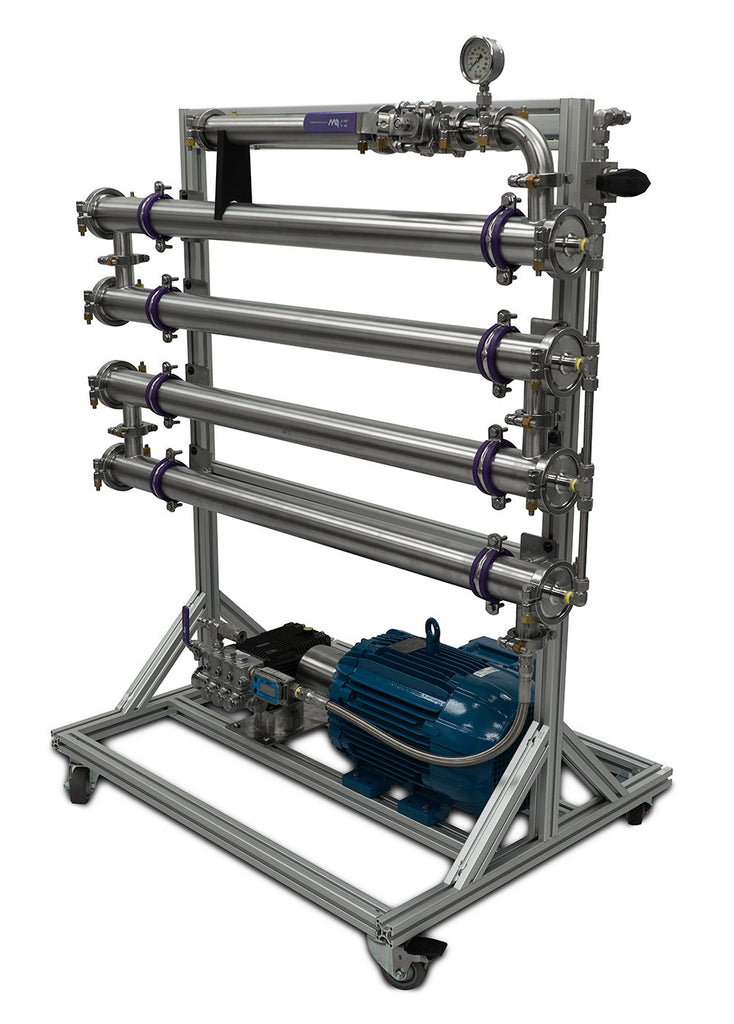

BVV 2540 Nanofiltration Skid
Note: This product carries 8 - 12 week lead time
Perform organic solvent recovery or botanical extract purification with ease with our 2540 nanofiltration skid. Replace up to 7X 50L Rotary evaporators with a single Skid. BVV's 2540 Nanofiltration Skid is designed to meet Class 1 Division 1 standards. With the ability to recover 30 gallons of ethanol per hour without the application of heat, preserving target compounds and utilizing a fraction of the energy consumption of a traditional falling film qualifying our 2540 Nanofiltration Skid for energy saving rebates.
Processing Power
- Capacity: 15 GPH or 30 GPH of solvent recovery.
- Solvents: Ethanol, Methanol
Specifications
- 4X 2540 nanofiltration housings
- Stainless steel 6GPM pump with PTFE seals
- 7.5HP C1D1 1750 RPM Motor
- 7.5HP VFD 1/60/230 NEMA 4X enclosure (13A)
- Insulated 2"x18" Heat Exchanger
- Polyscience 1.5HP Chiller 230/60/1/23.1
- 700PSI Pressure Relief Valve
- C1D1 Flowmeter
- 2X 0-1000 PSI Pressure Gauges
- 1.5" Intake & Retentate Lines
- 1/2" Permeate & Pressure Relief Lines
- Footprint (DxWxH) 30"x39"x79"
- Weight: 400 lb
- Maximum Pressure Rating: 700PSI
Performance
- Variable Frequency Drive-based flow control
- Complete pressure control with manual pressure controls
- Retentate cooling with inline Heat exchanger & chiller
- 700PSI pressure relief valve with diversion line
*Components shown are subject to change*
*This unit is meant for bulk solvent recovery, 90% of the total volume of solvent an additional solvent recovery apparatus is recommended to evaporate to dryness*
