Borosilicate Tri-Clamp Sight Glass Kit
***Note:(Only comes with 1 sight glass.)
FOR 2" Version please see our upgraded sight glass NESG200
3 piece borosilicate sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the borosilicate glass disc, Viton or Silicone gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 800 (pending 3rd party peer review). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures.
***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip.

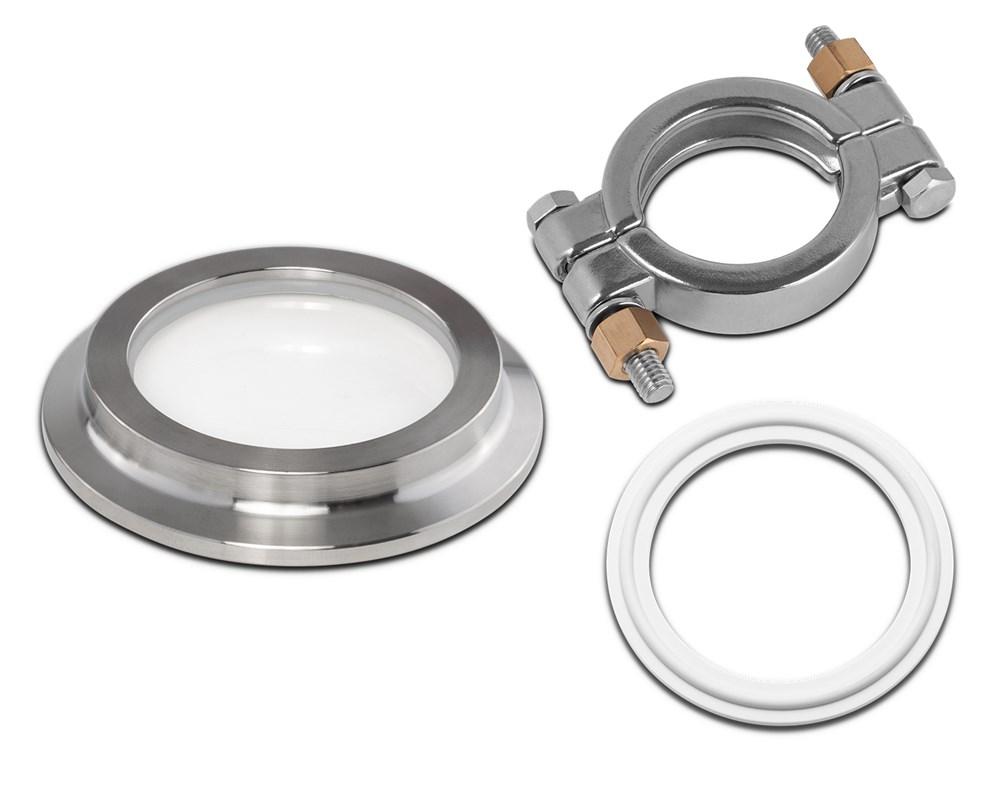

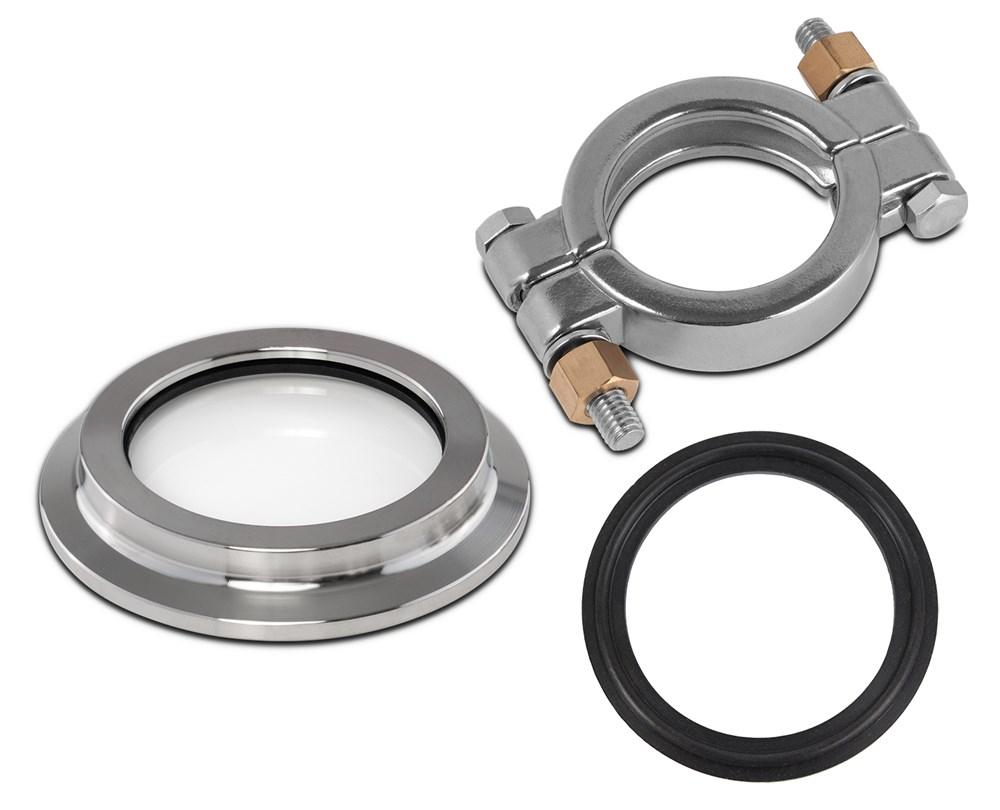

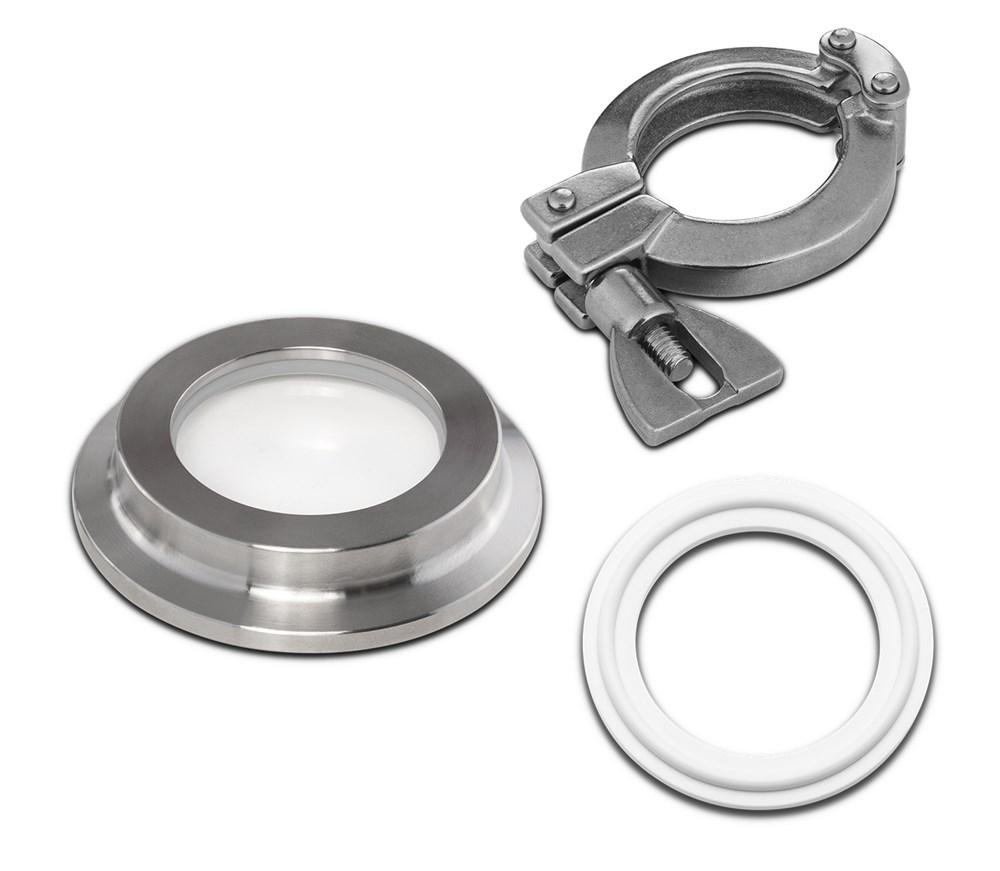

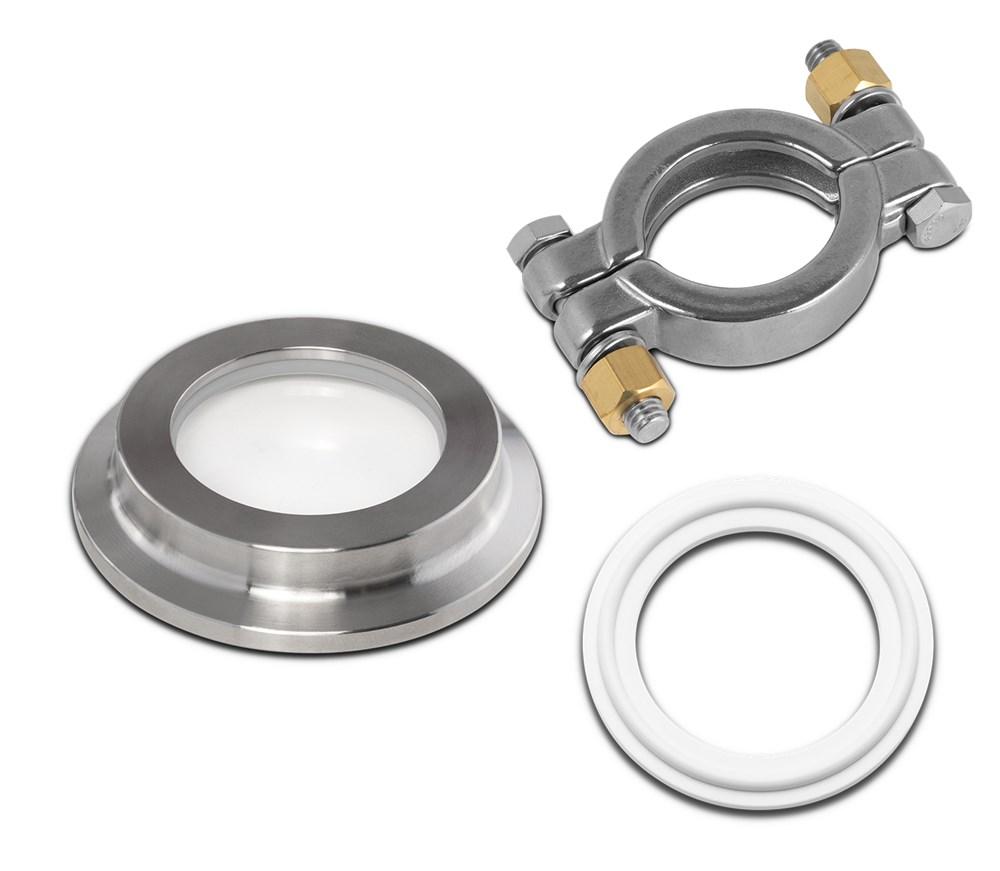

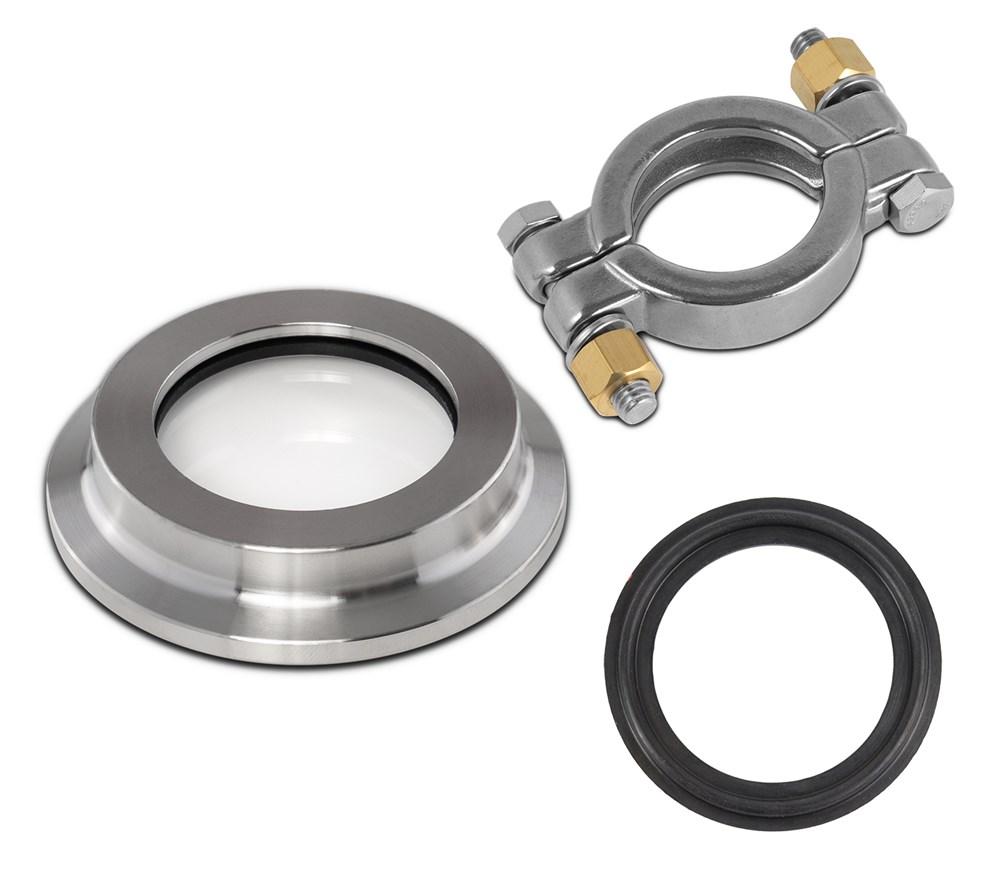

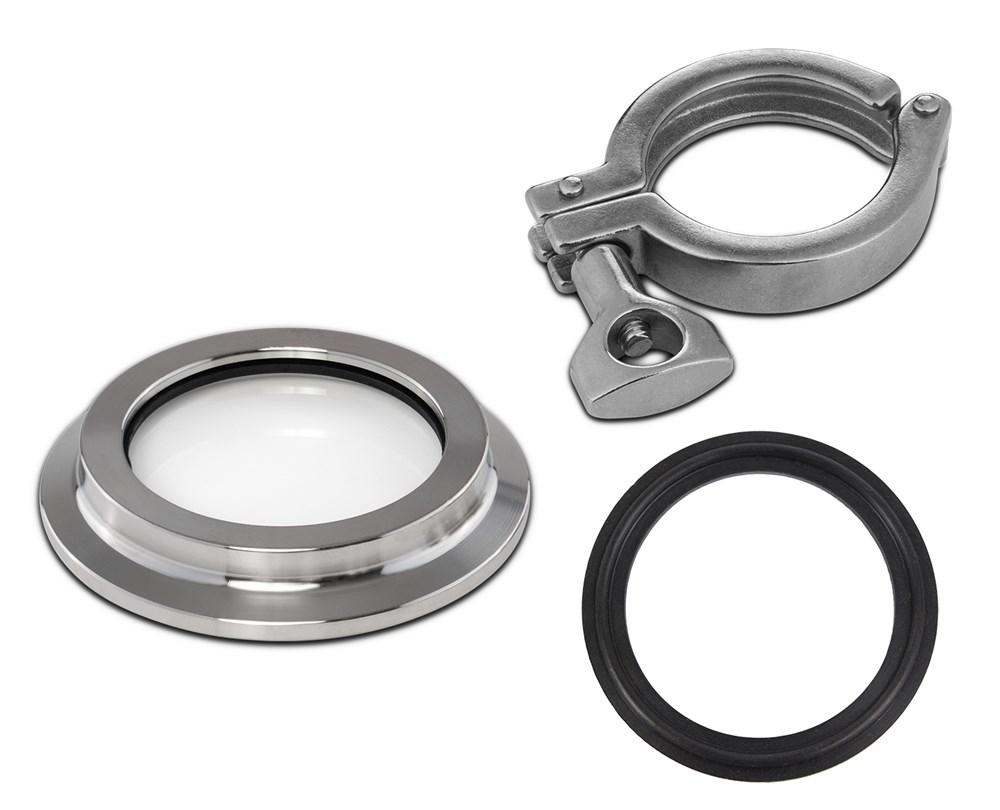

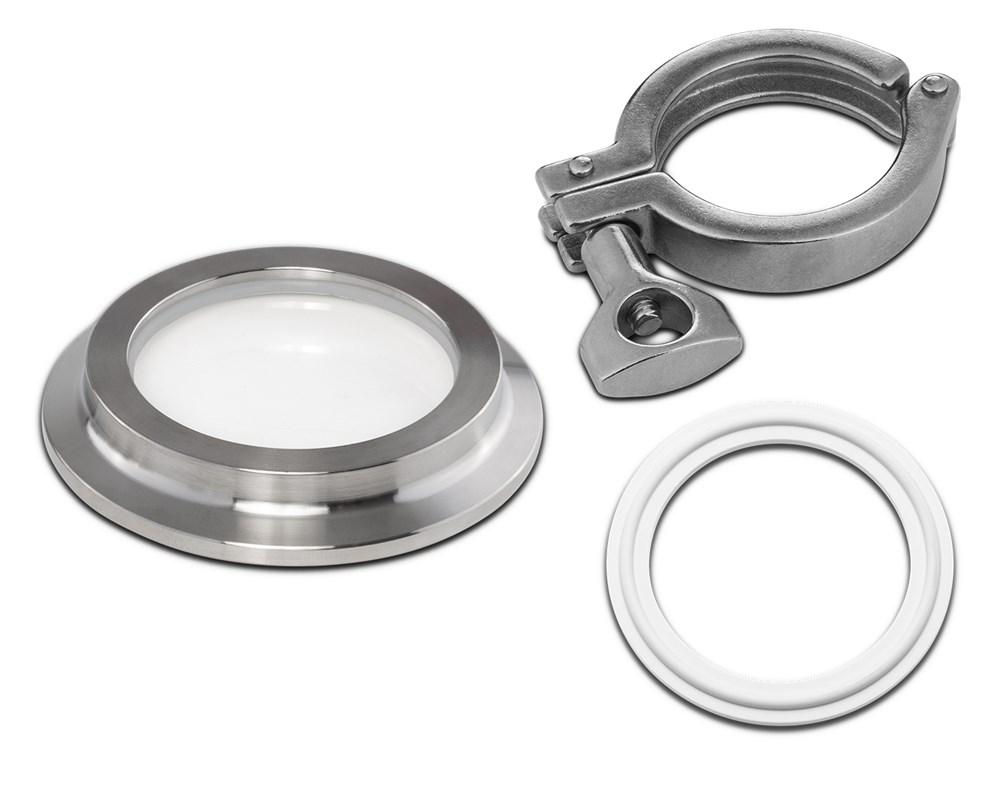

This Kit Includes the Following:
- 1x - BVV Borosilicate Tri-Clamp Sight Glass
- 1x - Standard Pressure Clamp or High Pressure Clamp
- 1x - BUNA-N Gasket or Silicone Gasket
| Sight Glass Specifications: | |
| Ferrule Material | 304 Stainless Steel |
| Glass Material | BOROFLOAT |
| Gasket Material | Viton(FKM) or Silicone |
| Connection Type(s) | Tri-Clamp |
| PSI Rating | 800 (pending peer review) |
