Description

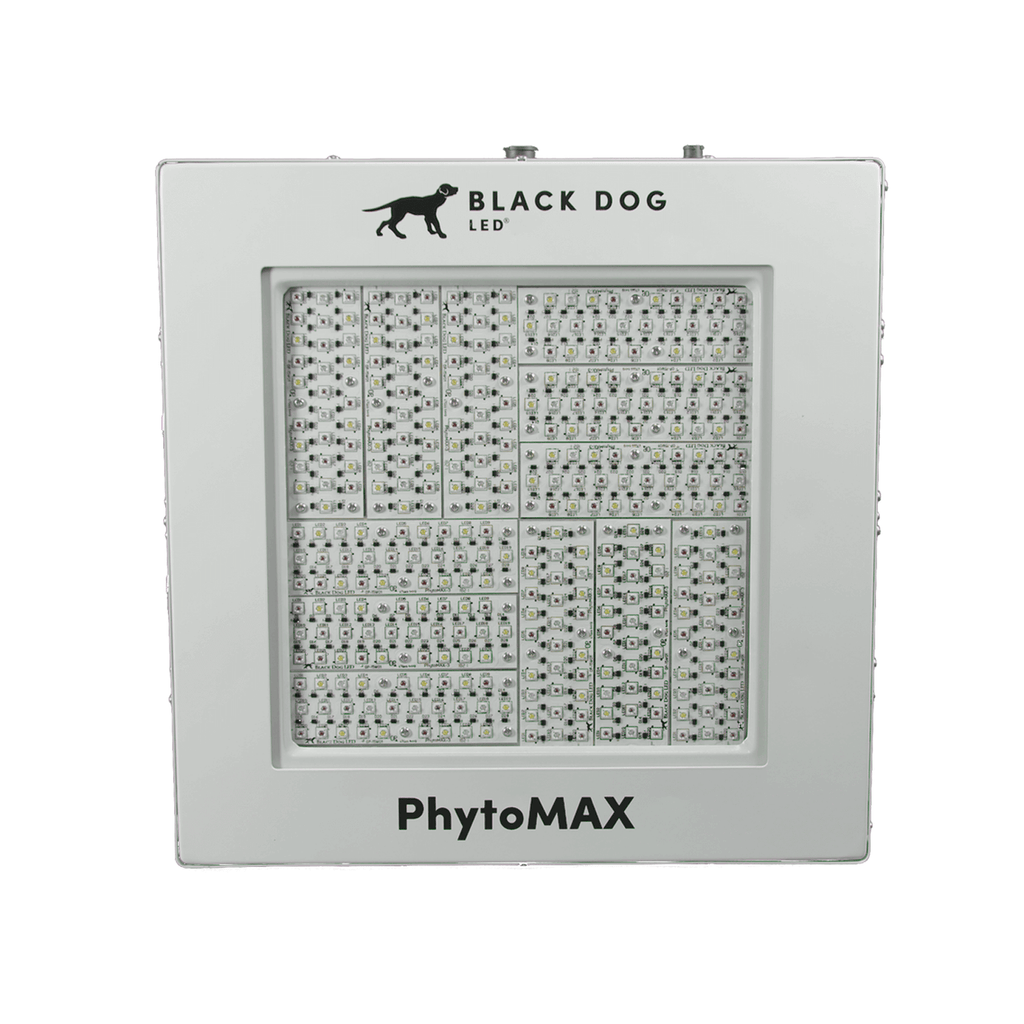

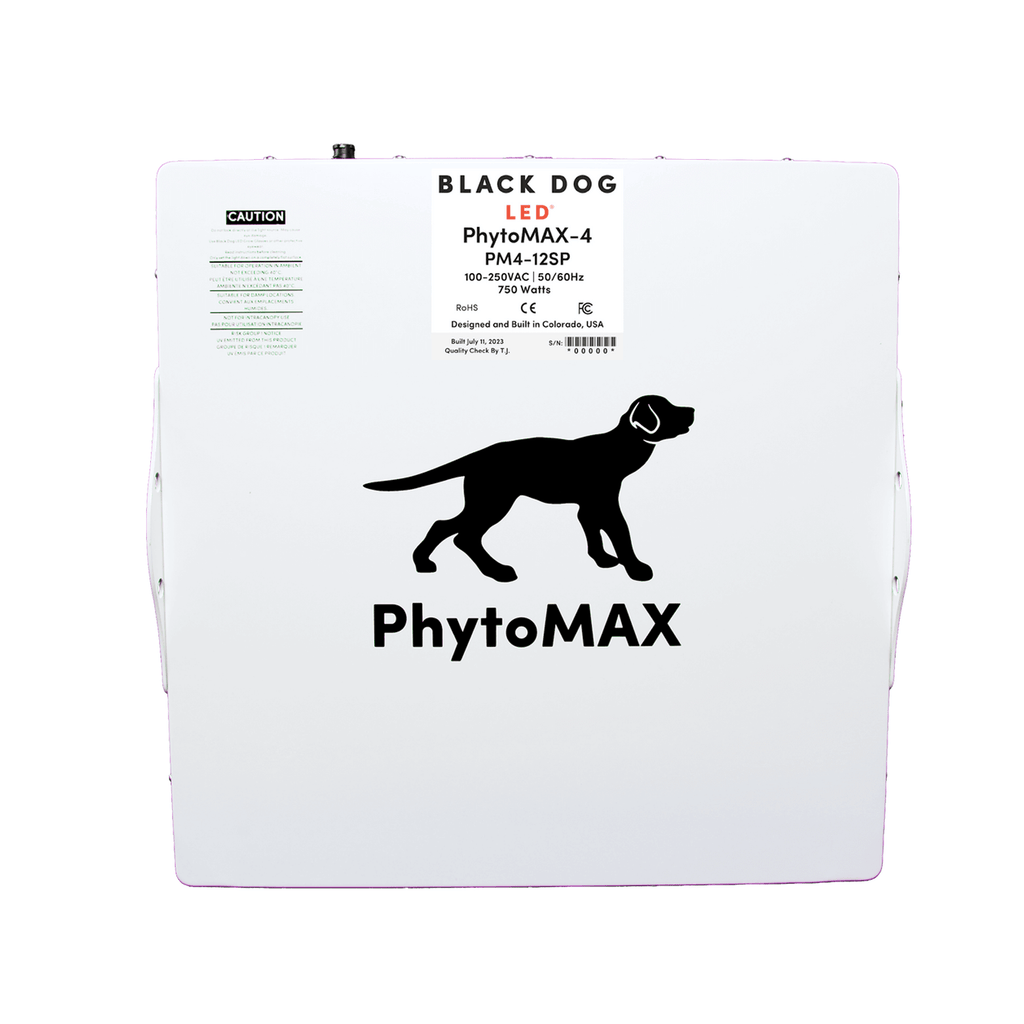

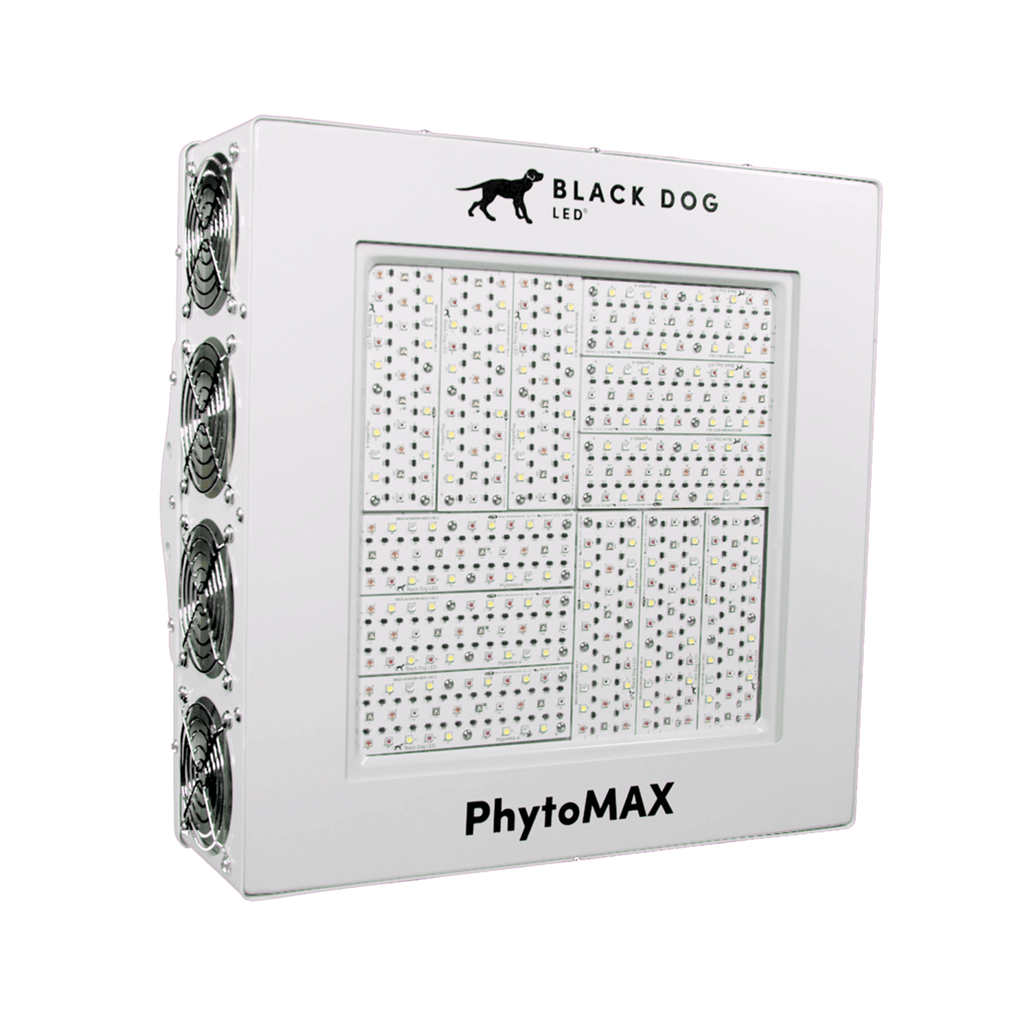

Selected Model: Black Dog LED PhytoMAX-4 12SP 750W LED Grow Light. The SP model uses an IEC power cord and is rated for 100-250V.
Application Condition: The manufacturer does not recommend the SP model for greenhouse use.
- PhytoMAX-4 12S LED Grow Light: PhytoMAX-4 12S uses 750 watts.
- PhytoMAX-4 Features
- Unparalleled Yield and Quality: PhytoMAX-4 lights are deliberately engineered to yield the highest quality and quantity harvests. While most competitors focus primarily on delivering the highest possible photons per watt, the design of PhytoMAX-4 prioritizes yield per watt and the amplification of the production of terpenes and pigments.
- Dimmable: These grow lights can be dimmed anywhere from 15% to 100%, adapting to the plant's light needs with the industry-standard 0-10V dimming controllers.

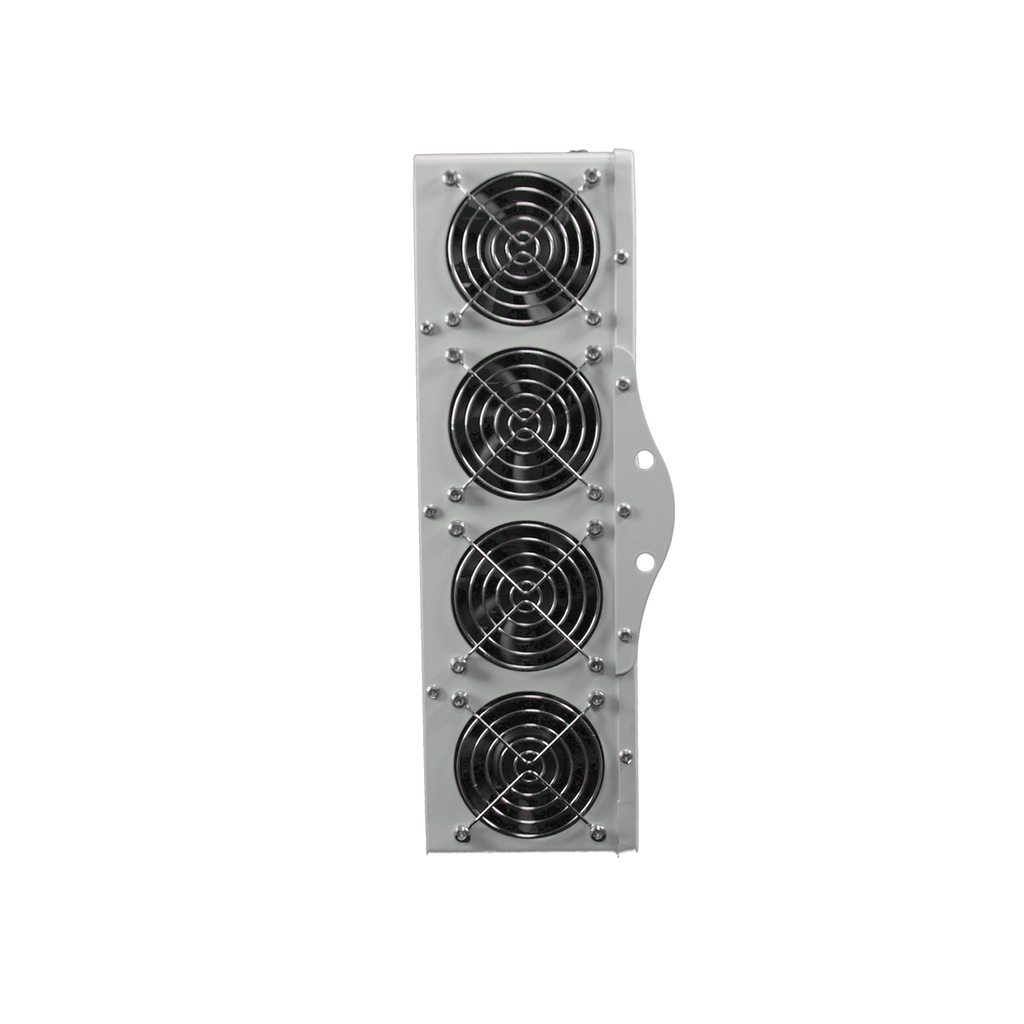

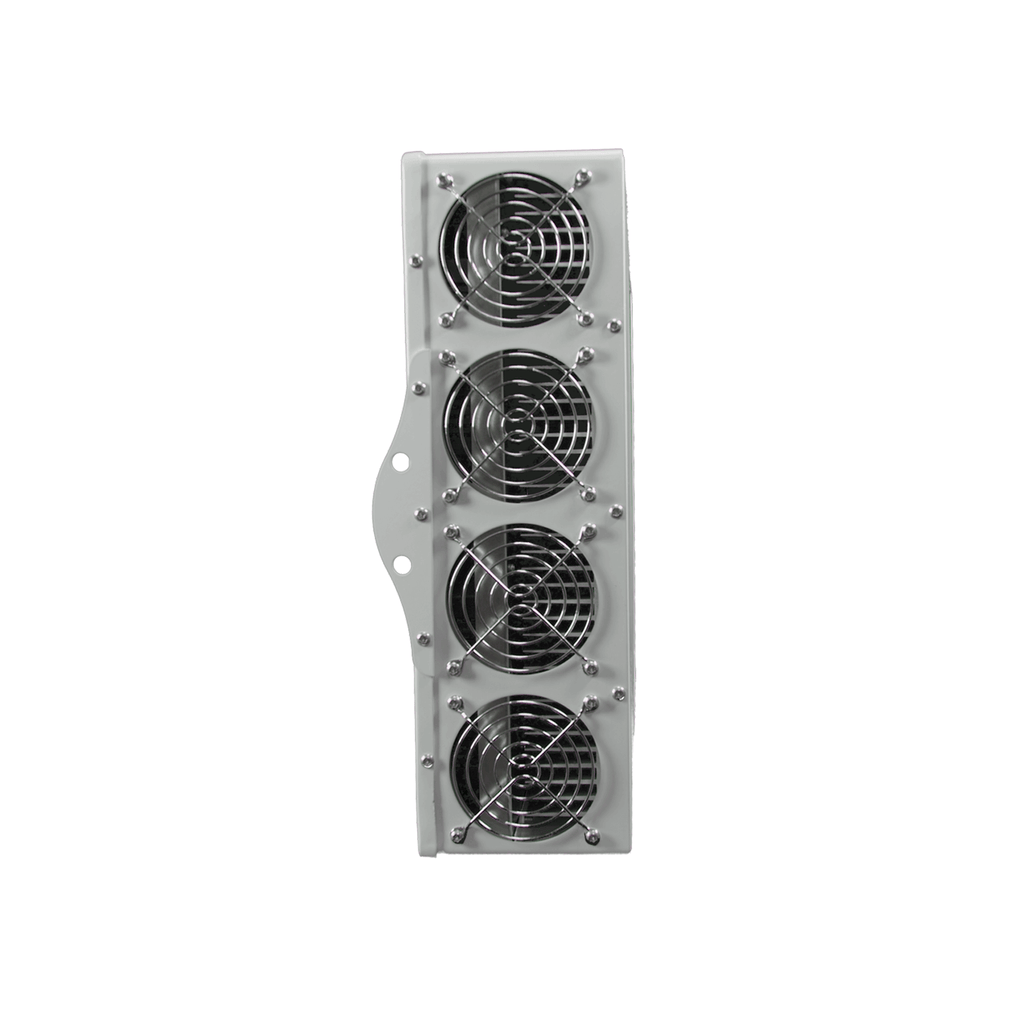

- Reliable Active Cooling: PhytoMAX-4 optimizes efficiency and extends lifespan by actively cooling the LEDs. The patented design includes multiple redundant fans to ensure your light will continue running perfectly, even if a fan were to fail.
- Designed and Assembled in Colorado: These lights are built to stand the test of time!
- Hanging Hardware Included: With every light purchased, a pair of V-hooks and ratcheting rope hangers are included.
Specifications
Photon Flux (umol/s)
- PBAR (280-800nm): 1594 umol/s
- UV (280-400nm): 47 umol/s
- PAR (400-700nm): 1428 umol/s
- IR (700-800nm): 119 umol/s
- Dimming: 0-10V, 15-100%
- Dimensions: 15" x 15" x 4.5" 37 x 37 x 11 cm
- Weight: 28lb 12.7kg
- Power: 750 Watts
- Standards and Marks: UL 1598, UL 8800, ETL, CE, FCC, RoHS
- Mean Time Before Failure: greater than 70,000 hours
- Number of LEDs: 336
- Amp Draw: 7.5 @ 100V 6.25 @ 120V 3.61 @ 208V 3.26 @ 230V 3.12 @ 240V 2.71 @ 277V (SC model only)
- Included Power Cord Length: 8 ft 2.4 meters
- Power Cord Options: NEMA 5-15, NEMA 6-15, NEMA 7-15 (SC model only), Pigtails
- AC Voltage Range by Model: SP Model: 100-250V (50 / 60 Hz) SC Model: 100-277V (50 / 60 Hz) SX Model (special order): 347V
- Power Factor: 0.99
- Operating Ambient Temperature Range: -4 to 104 degrees F -20 to 40 degrees C
- BTU: 2558
- Fans Expected Life: greater than 70,000 hours
- Warranty: 5 Years
