Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.
Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
92 x 92 x 38 mm (3.6 x 3.6 x 1.5 in.) | 100 to 120V AC | Airflow: 47 CFM | Noise: 40 dBA | Speed: 2600 RPM

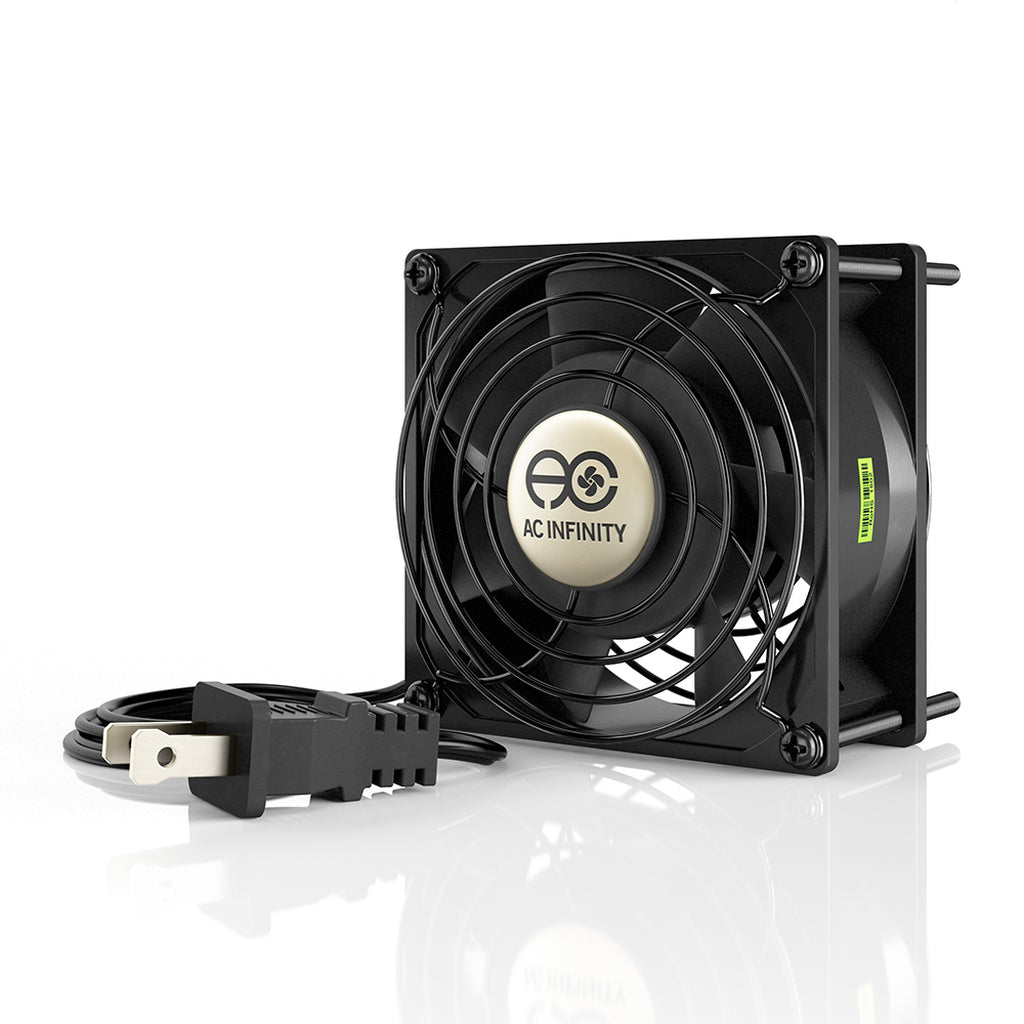

The heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 92 millimeter metal fan guards and a mounting screw set. AC Infinity fans are certified by CE and RoHS.
HEAVY DUTY CONSTRUCTION
The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contains windings that have a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.
This high speed fan is suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.
