AC-Infinity

AXIAL 2060, Muffin 120V AC Cooling Fan, 200mm x 200mm x 60mm

SKU: ACIN-HS2060A-X
  • Sale
  • Regular price $44.99
Shipping calculated at checkout.


Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

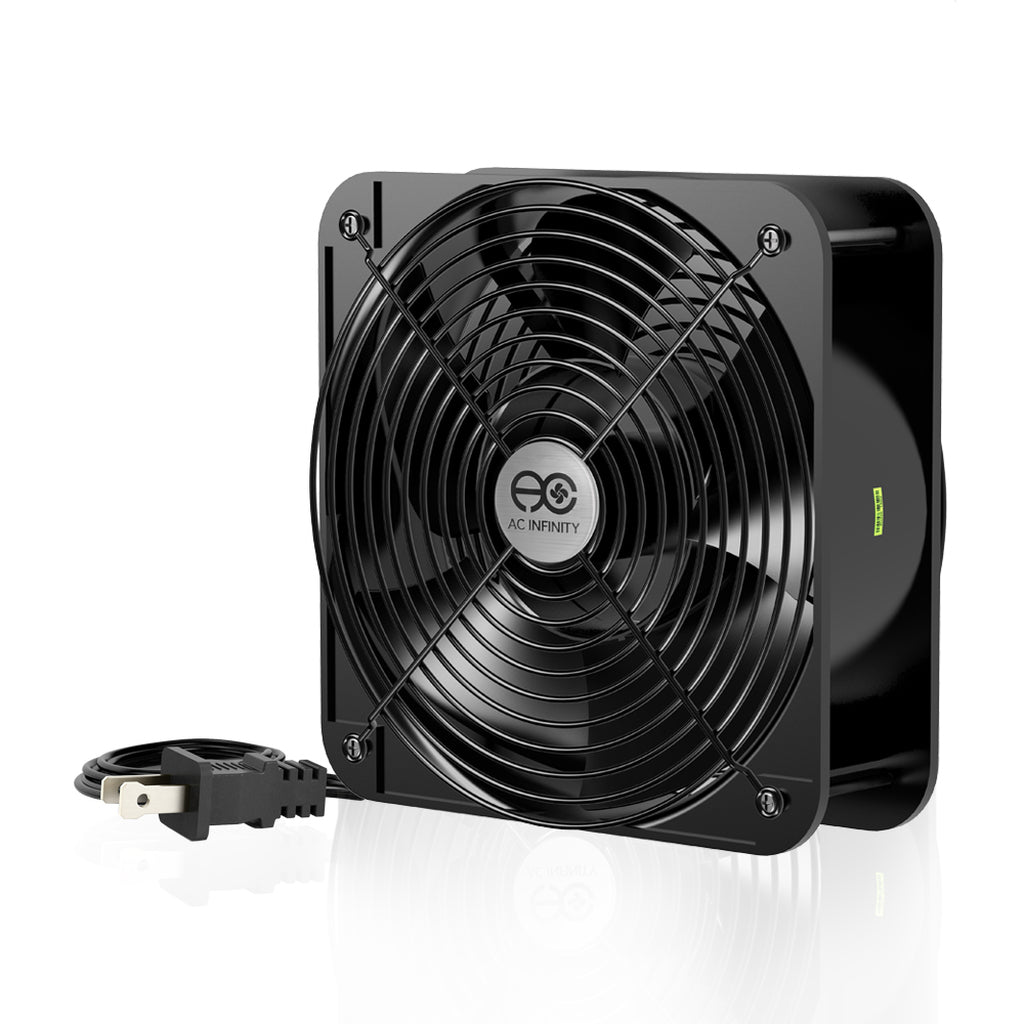

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.
Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
200 x 200 x 60 mm (7.87 x 7.87 x 2.36 in.) | 100 to 120V AC | Airflow: 425 CFM | Noise: 65 dBA | Speed: 3200 RPM

PRODUCT DESCRIPTION
The heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 200 millimeter metal fan guards and a mounting screw set.

HEAVY DUTY CONSTRUCTION
The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contain windings that has a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

APPLICATIONS
This high-speed fan is suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.
