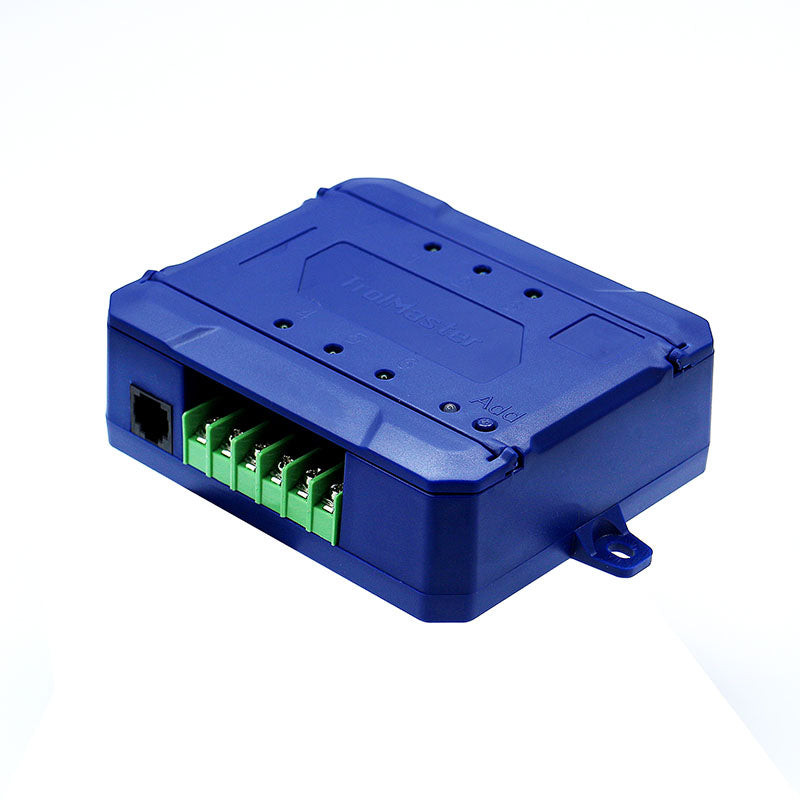

TrolMaster - Aqua-X Control Board 24V, 6 individual 24V controlled output for solenoid valve control

SKU: OA6-24
Shipping calculated at checkout.

The OA6-24 control board is designed to control multiple 24vac solenoid valves. It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.


LED Power Indicator

Addressing Button

6 Individually-Controlled 24V Outputs

ndividual LED Indicator for Each Output

Double RJ12 Cable Sockets for Daisy Chain Connectivity

Included In Box:

1 x 24V Control Board

1 x 16ft RJ12 Cable

Technical Specifications:

Input Voltage:                                    110-240 VAC

Max Input Current:                             0.2A

Max Output Voltage/Current:            24VAC/0.2A per output

Working Environments:                    Temperature 32°-122°F, Humidity=90%

Packaging Dimensions:                    275mm(L) x 164mm(W) x 40mm(H)

Manual Link:
