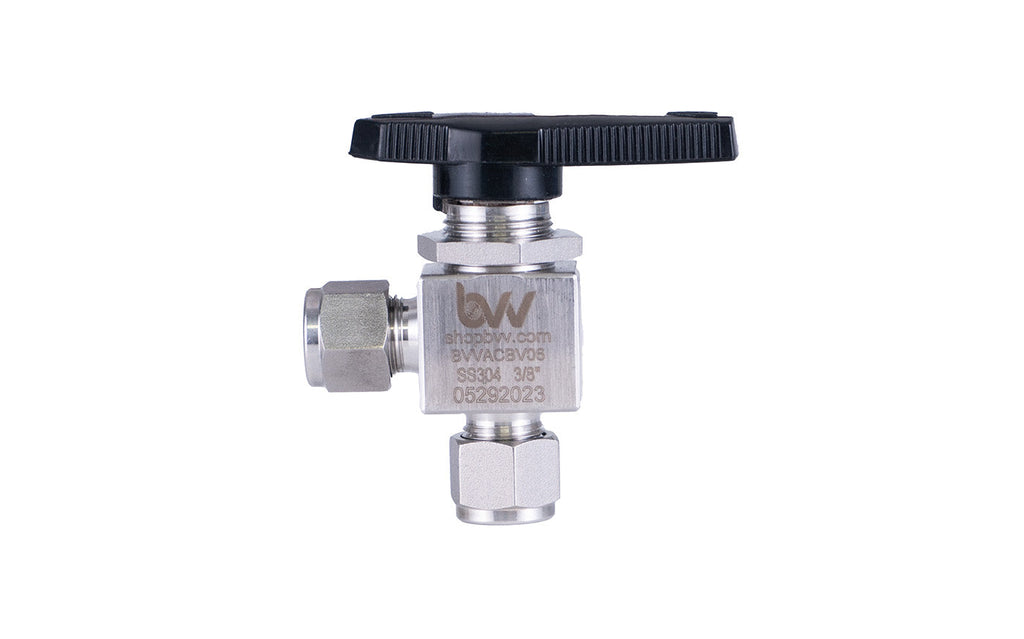

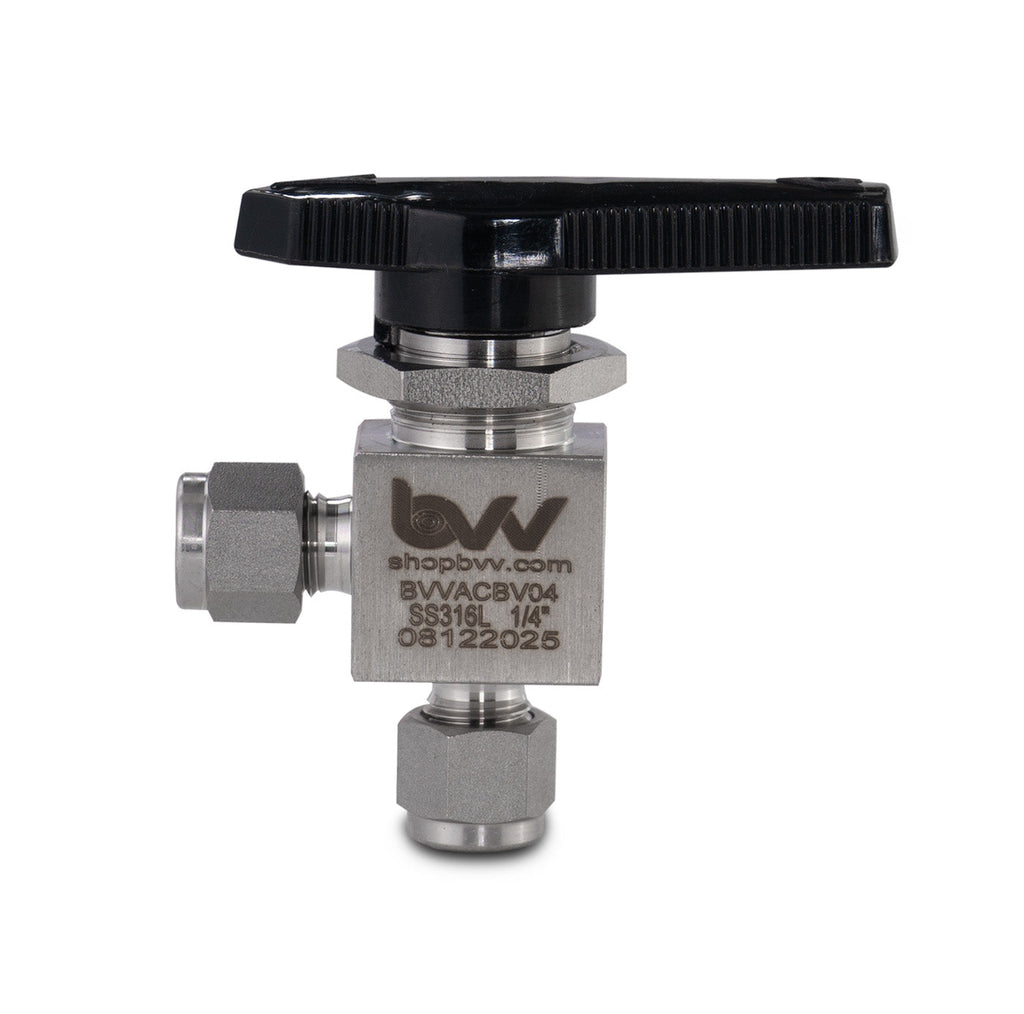

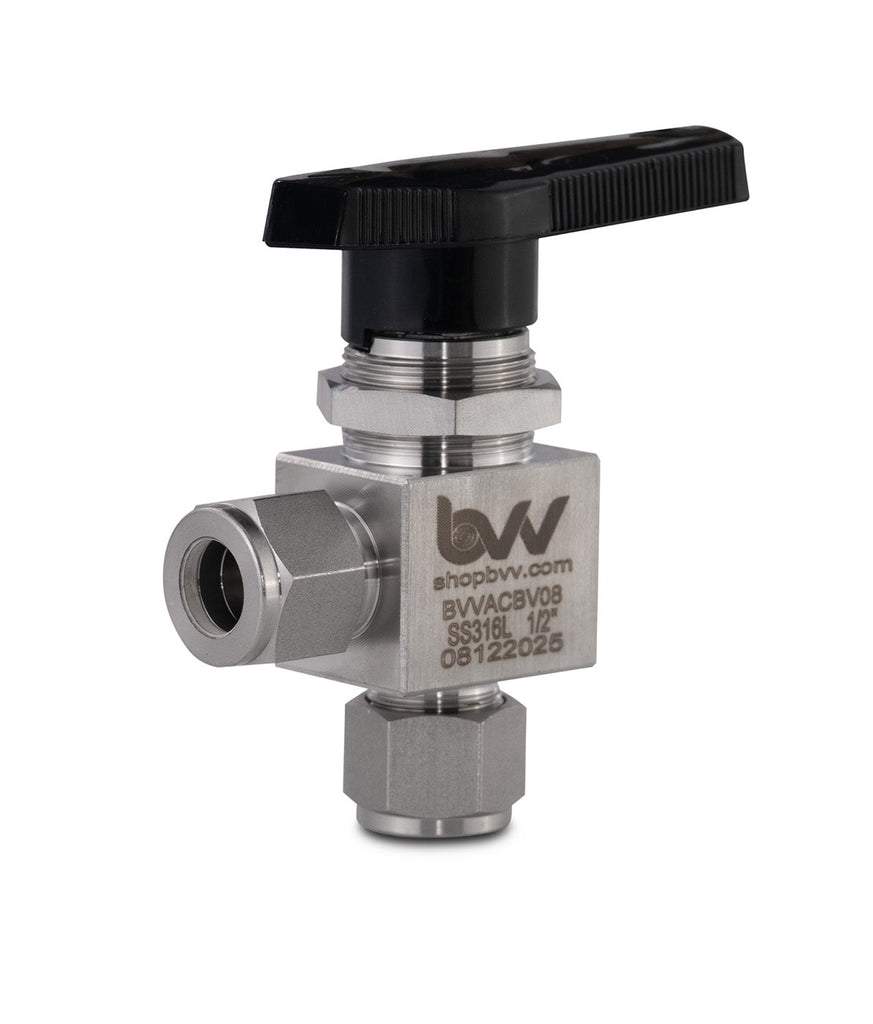

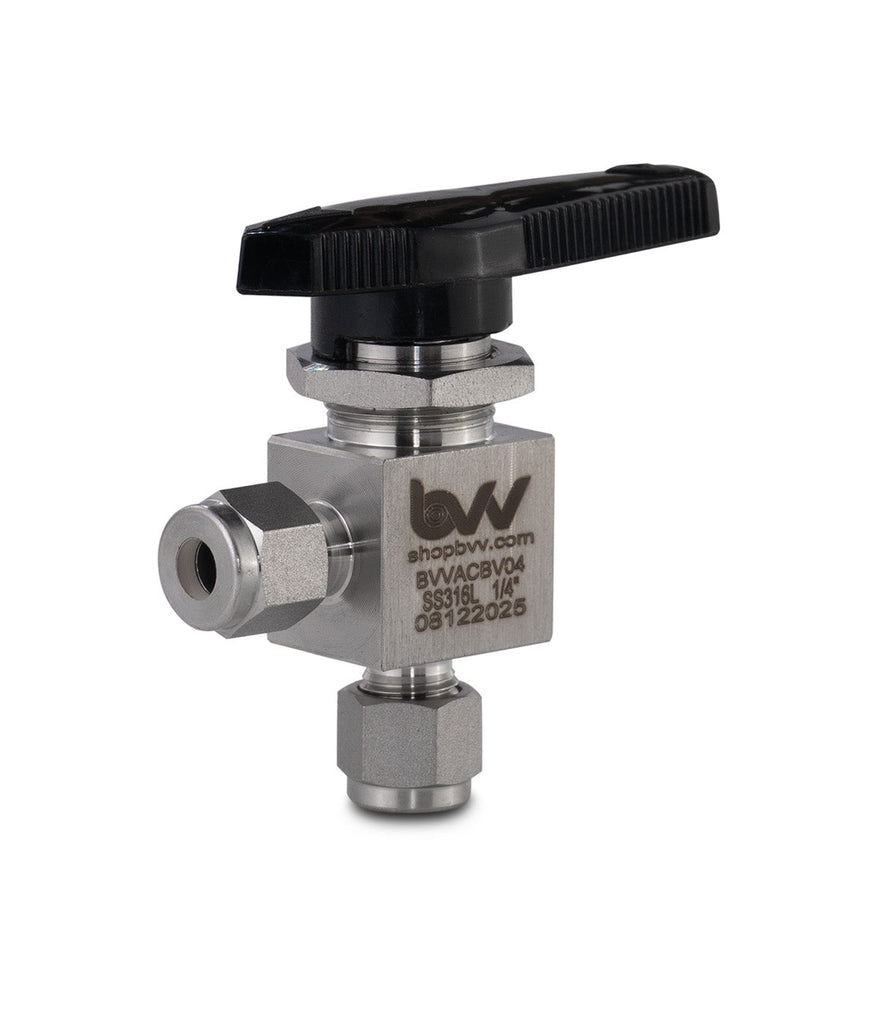

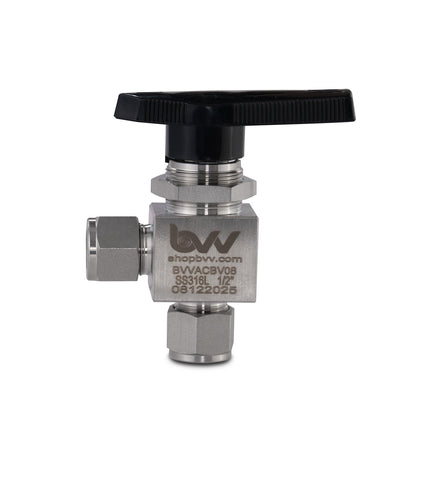

BVV manually operated two-way ball valves provide quick ¼ turn directional flow control of fluids in instrumentation and process systems. This Valve body has a 90 degree angle to combine the utility of a ball valve and shape of a compression elbow to eliminate extra parts in the system.
Features:
- Directional handle indicates flow direction
- Panel Mountable
- 90-degree actuation
- Straight through flow path
- Micro-finished ball provides positive seal
- Free-floating ball design provides compensation for seat wear for repetitive sealing
- Blow-out proof ball & stem
BVV™ Compression Ball Valve - Data Sheet
| Specifications | |
|---|---|
| Body Material | 316L Stainless Steel |
| Pressure Rating @ 100F | 1000 PSIG |
| Connection Type 1 | Double Ferrule Tube Fitting |
| Connection Size 1 | Specified by User |
| Connection Type 2 | Double Ferrule Tube Fitting |
| Connection Size 2 | Specified by User |
| Handle Type | Nylon-Stainless Steel Insert |
| Handle Color | Black |
| Packing Material | PTFE |
