Description
Key V-SYSTEM Benefits:
Direct nutrient distribution
Maximum oxygen saturation
No air pump needed
No heat transferred
Vortex fluid motion
Naturally aspirated
Supports large plants
Pots and system completely drain
Prevents root clogging
Made in Britain
Key V-SYSTEM Features:
15 gallon (58L) V-POT
Water fill line
Total-drainage bases
Venturi injectors
Inspection Covers
5" spiral tubing
5" Dual-Flow™ fittings
Integrated filtration
T304 Stainless clamps
Heavy-duty components
Push-fit feed connections
JET-STREAM® Vortex™ pumpSpecifications

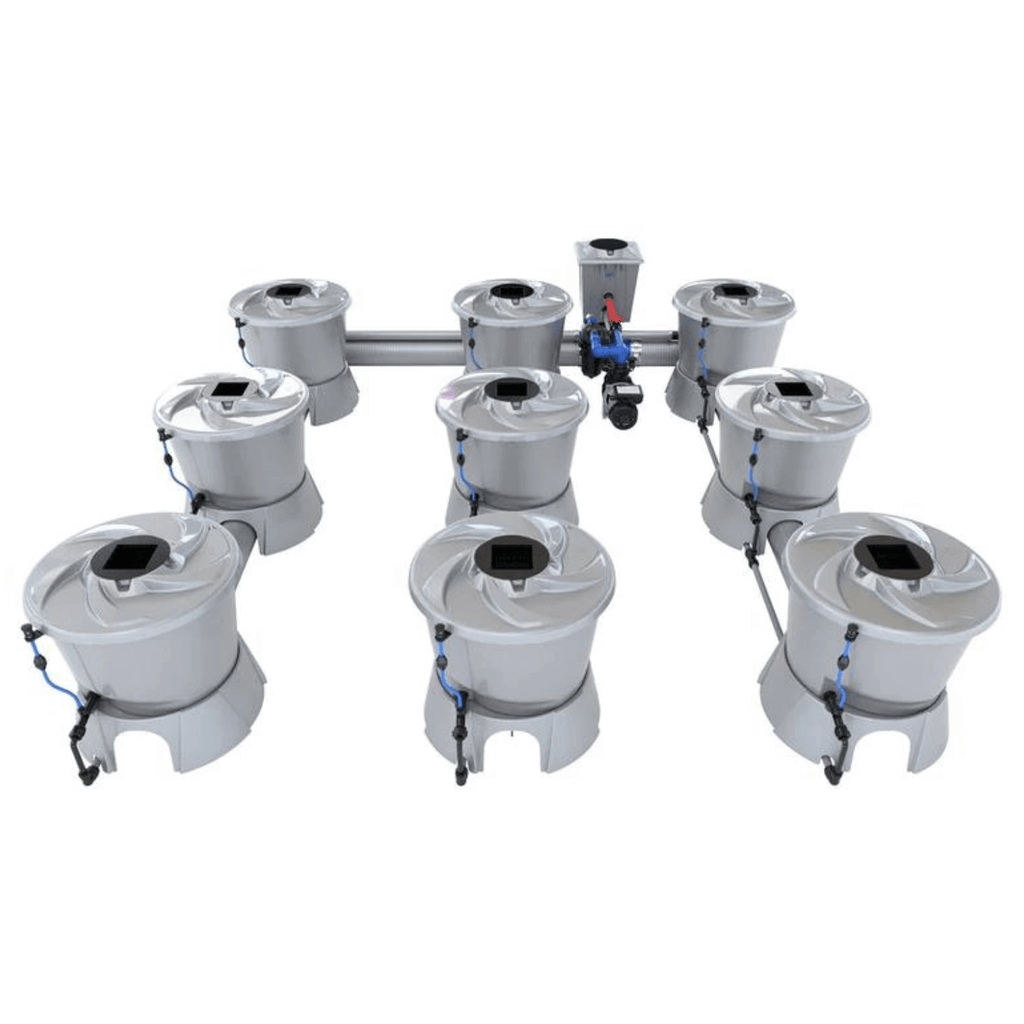

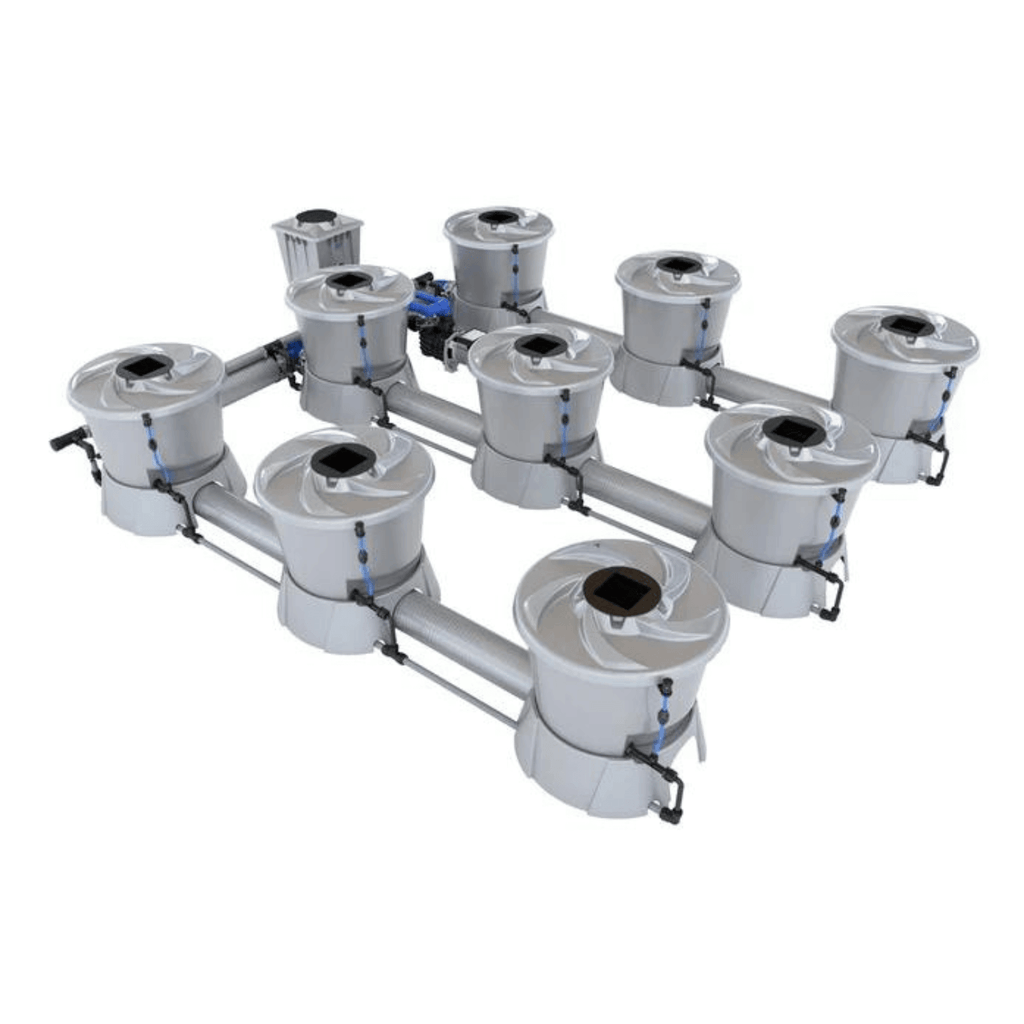

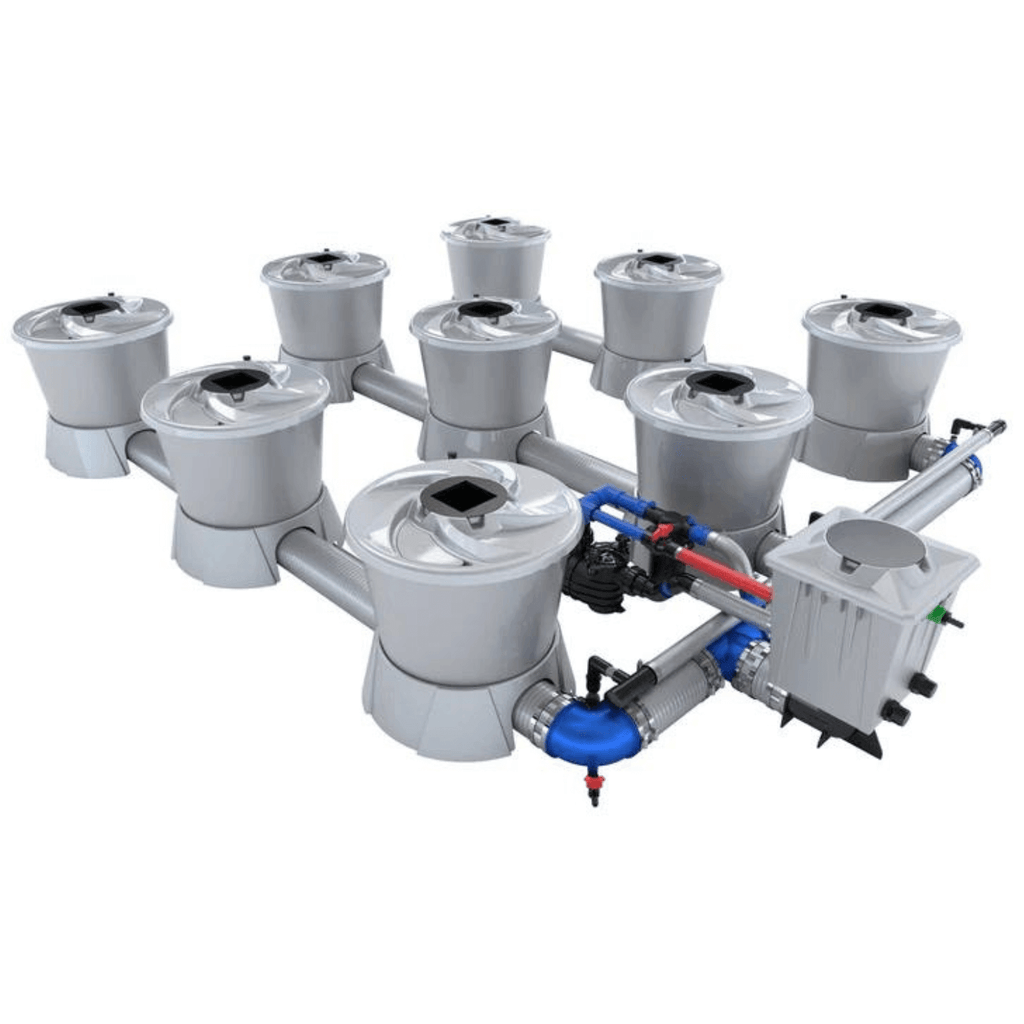

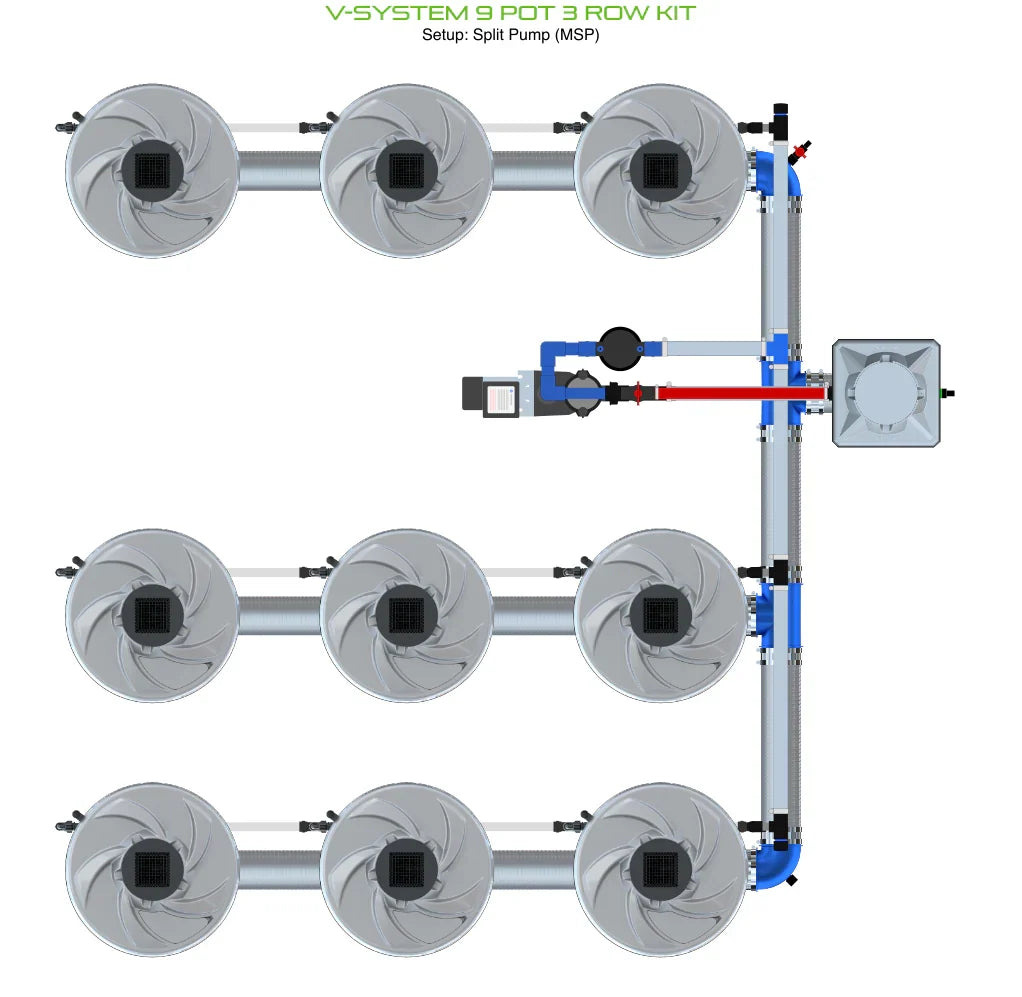

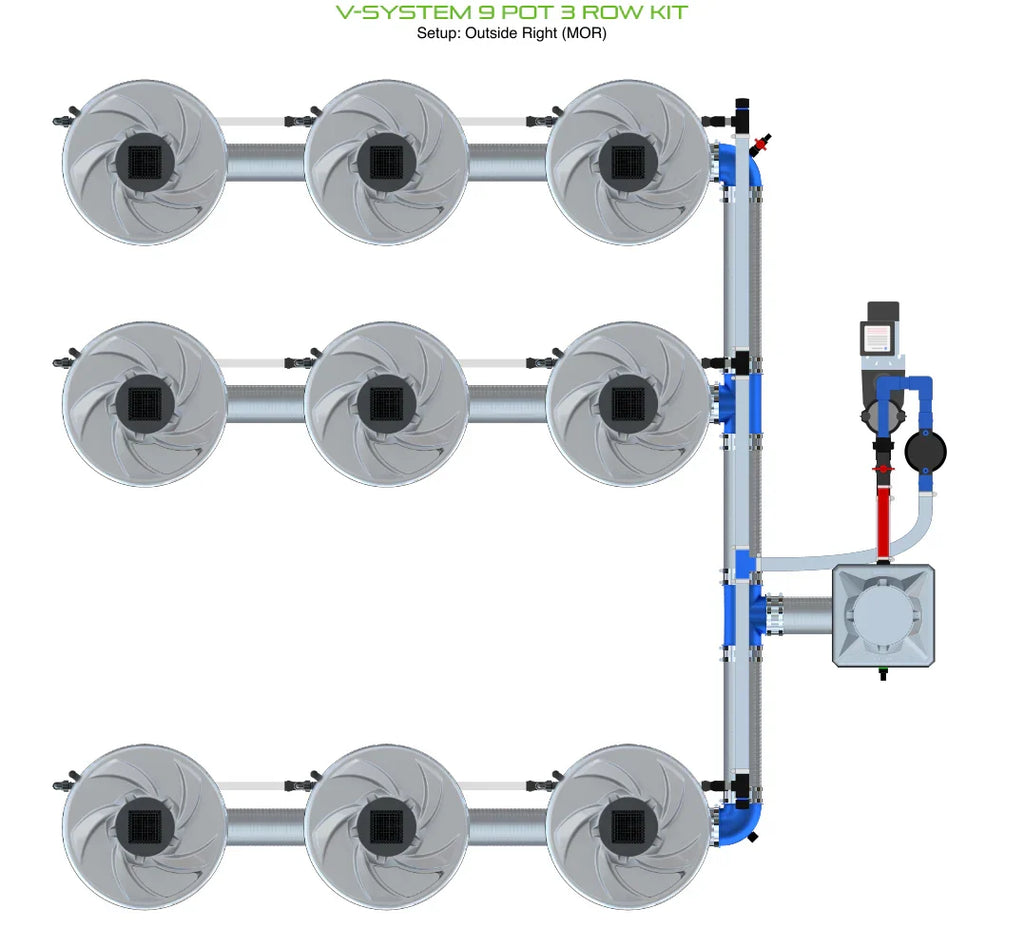

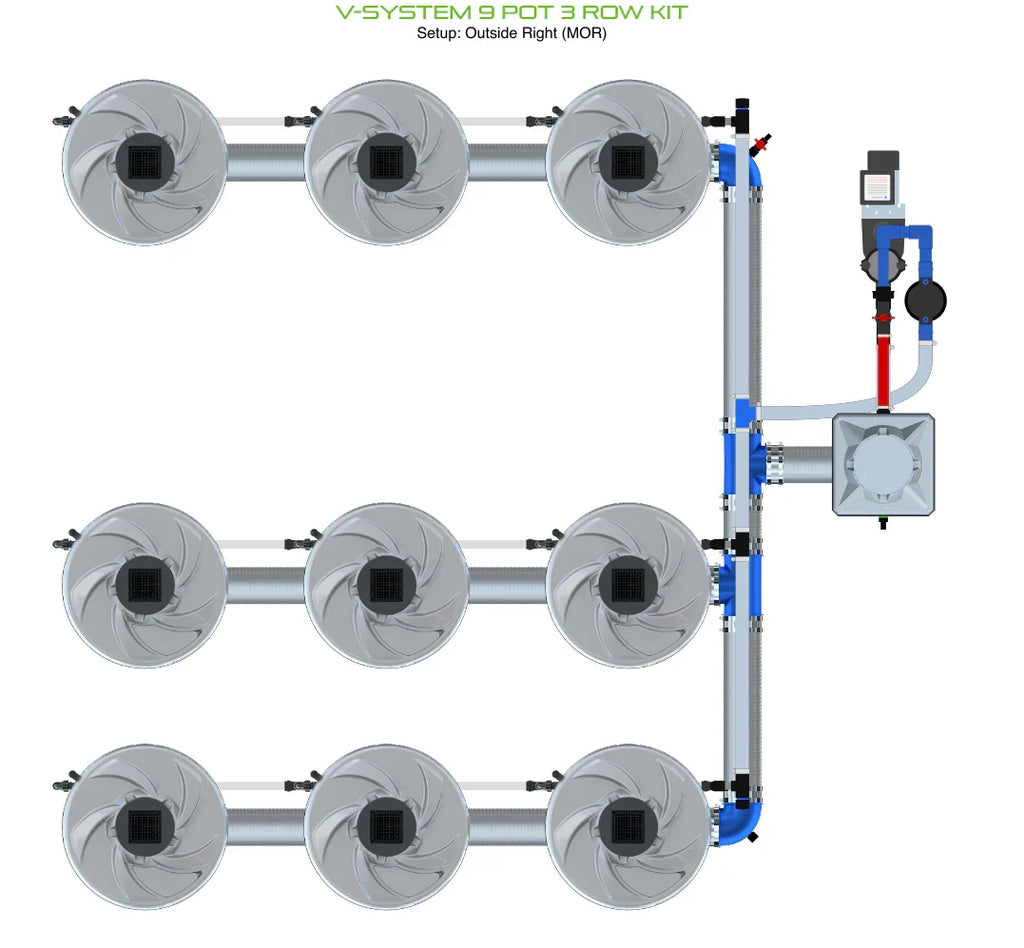

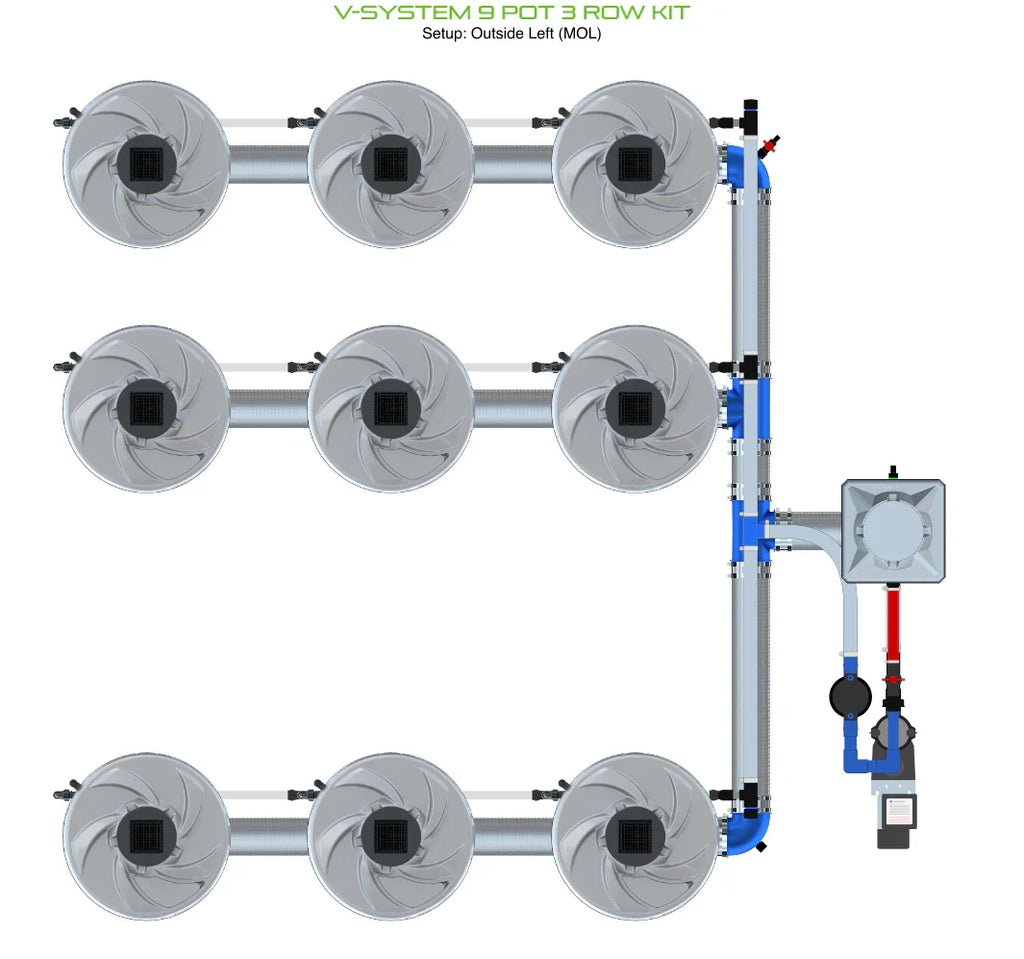

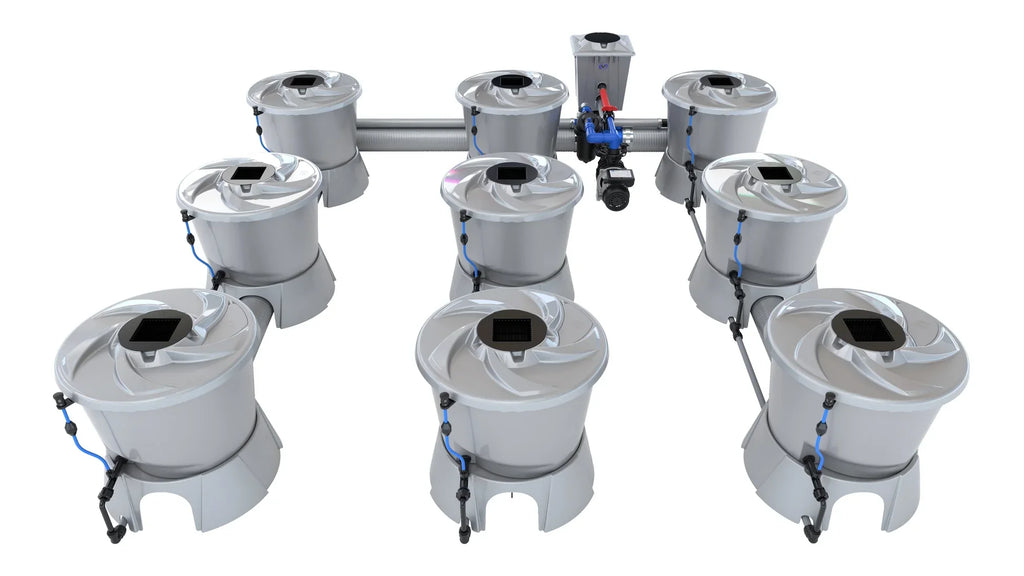

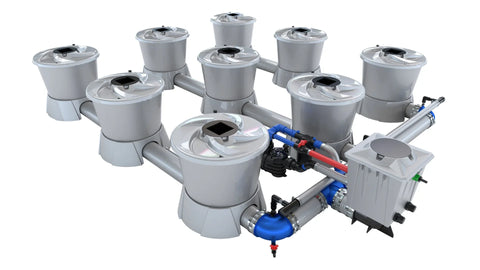

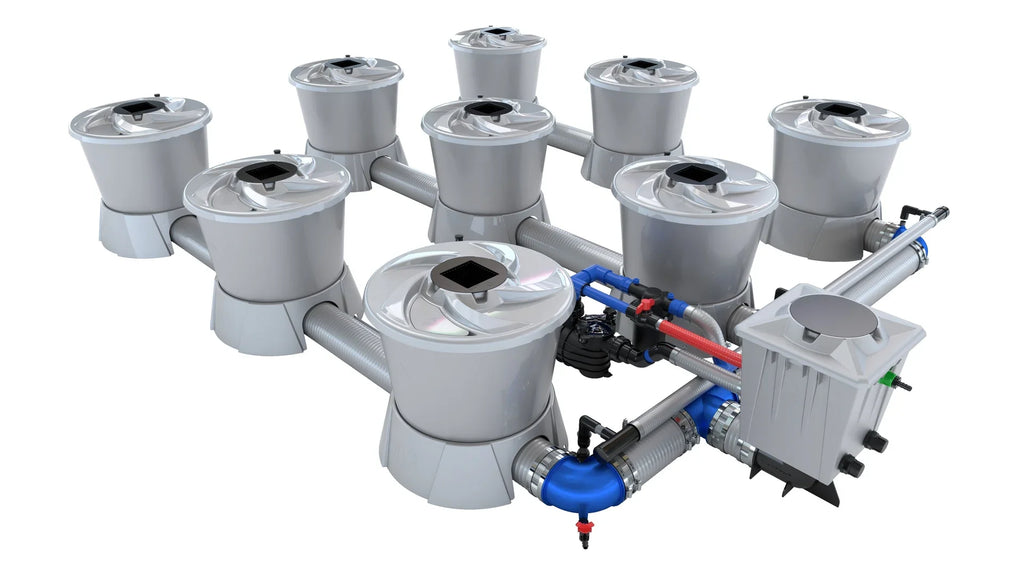

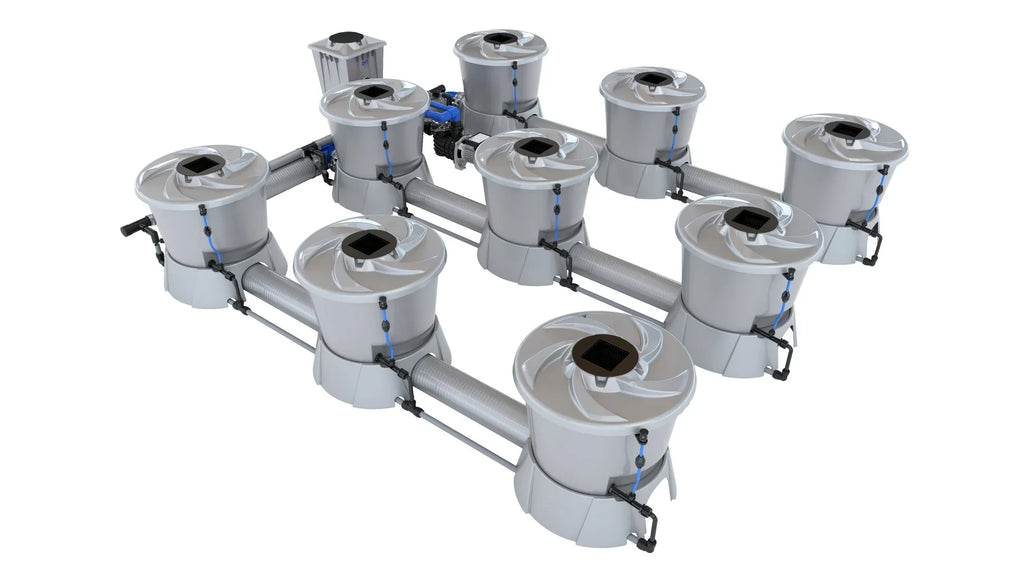

Product Name: V-SYSTEM 9 Pot 3 Row Kit
Technical Information
Number of pots: 9
Number of rows: 3
Kit total fluid volume: 146.4 gallons (554 L)

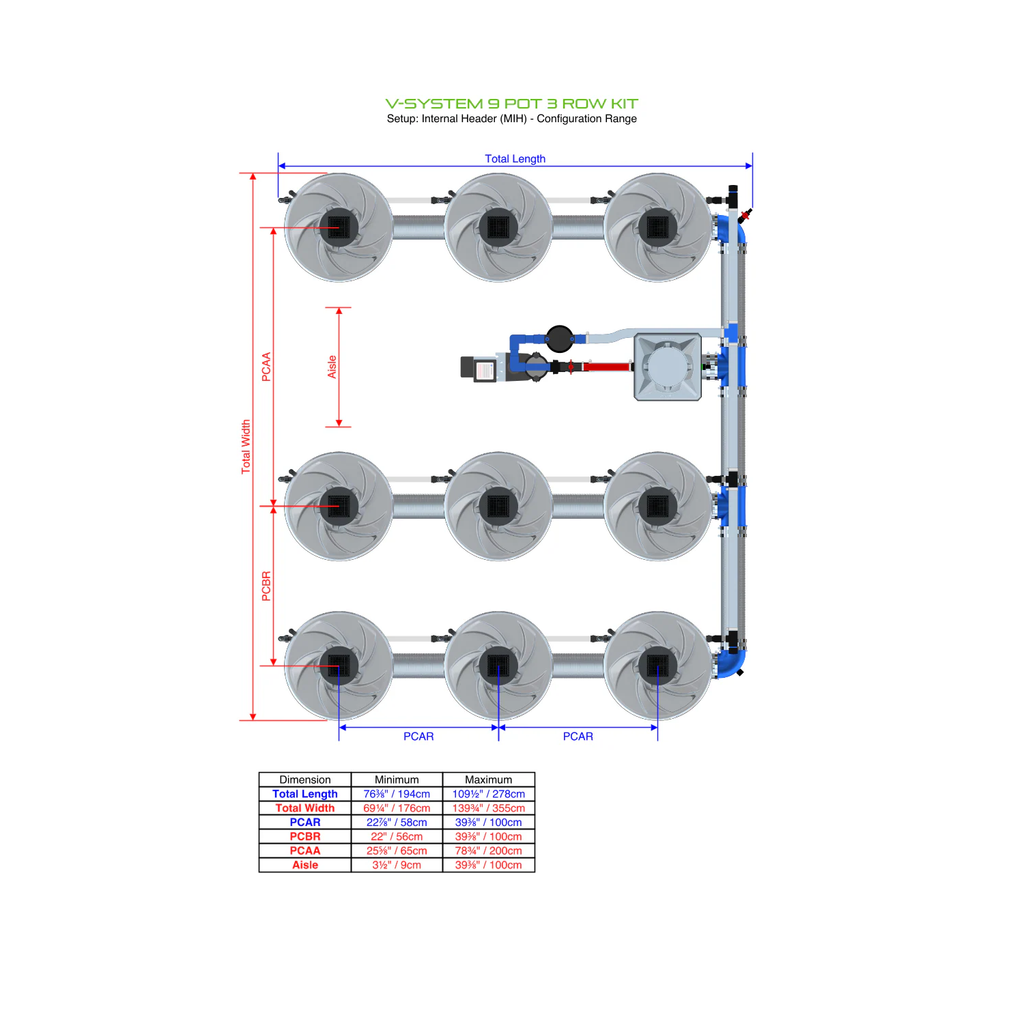

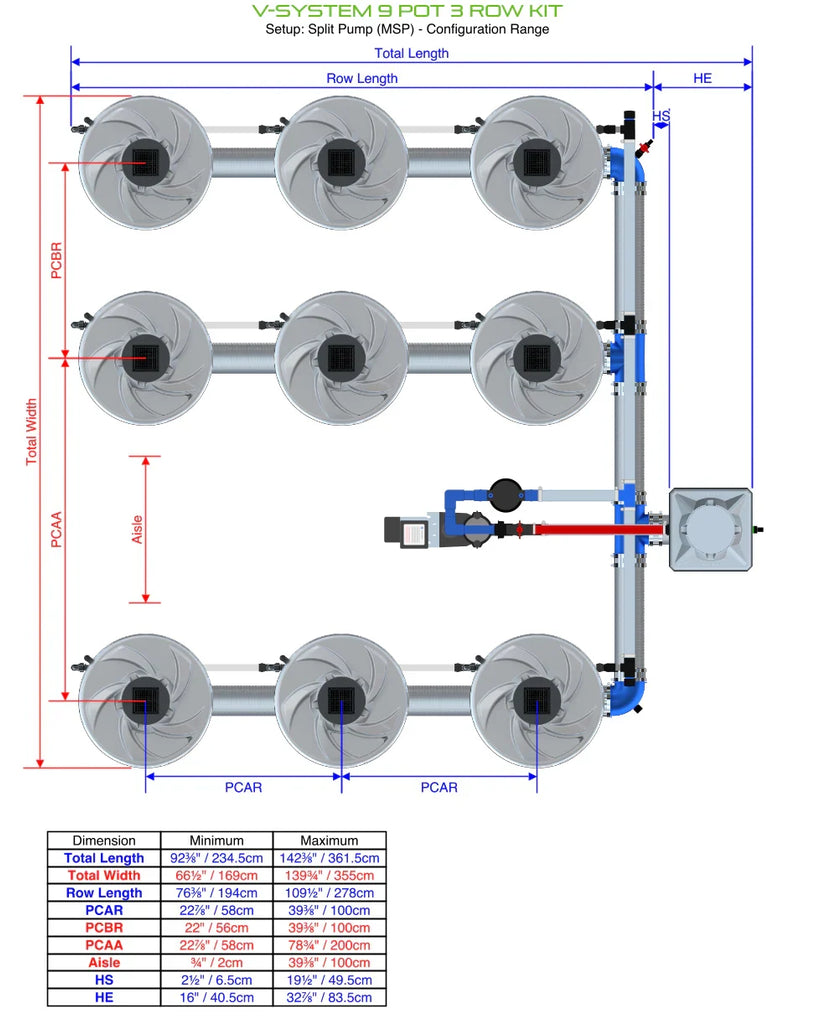

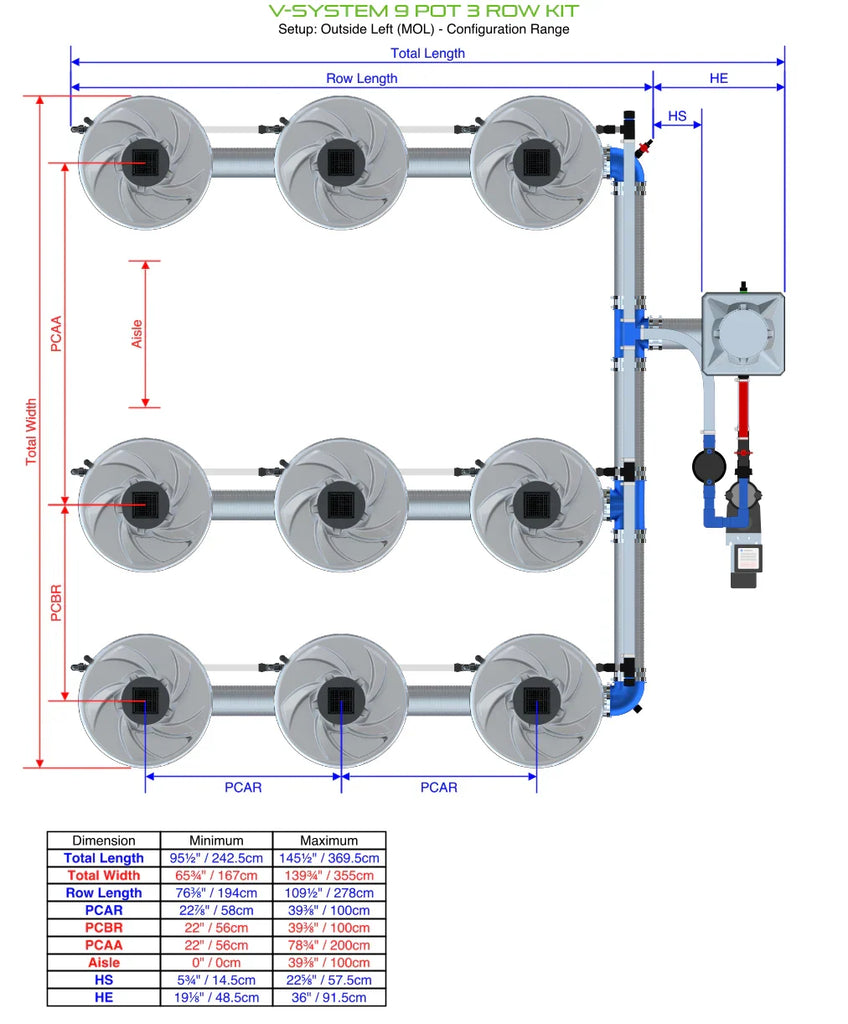

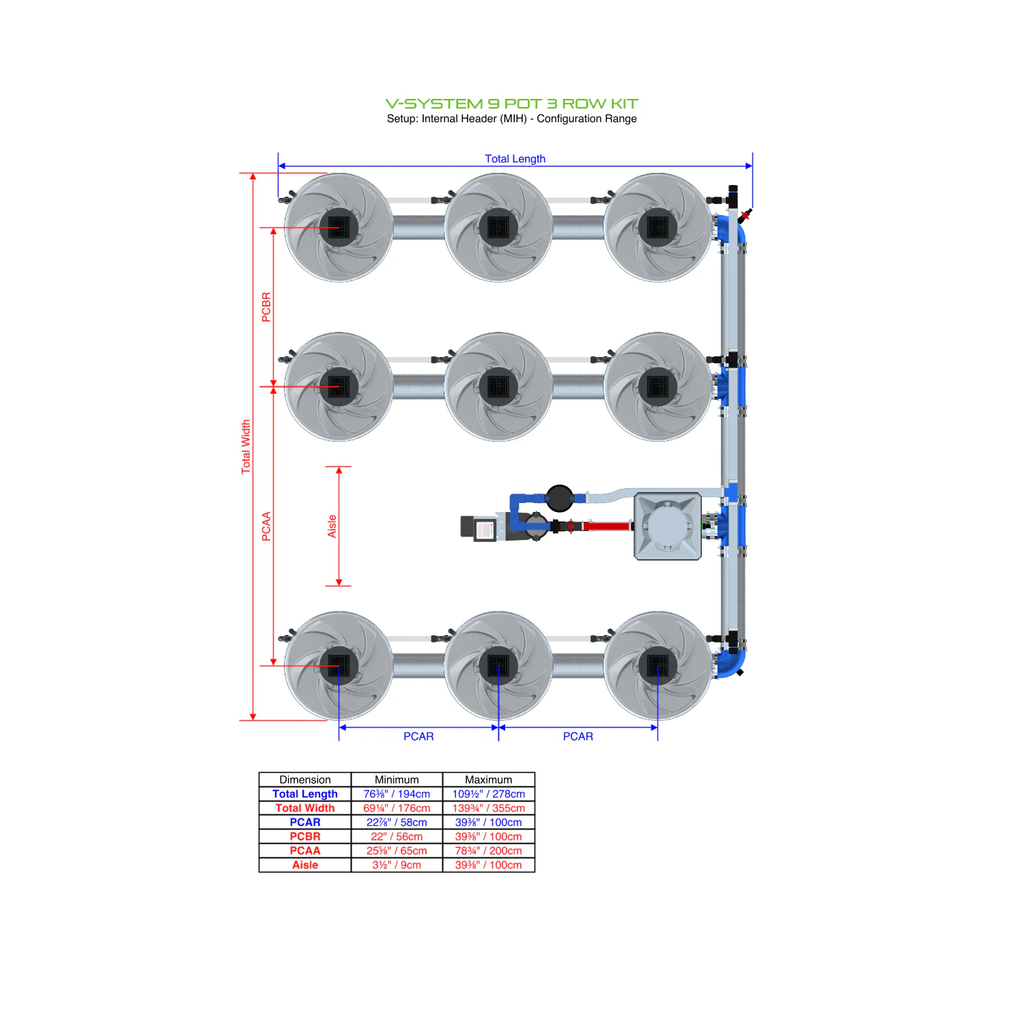

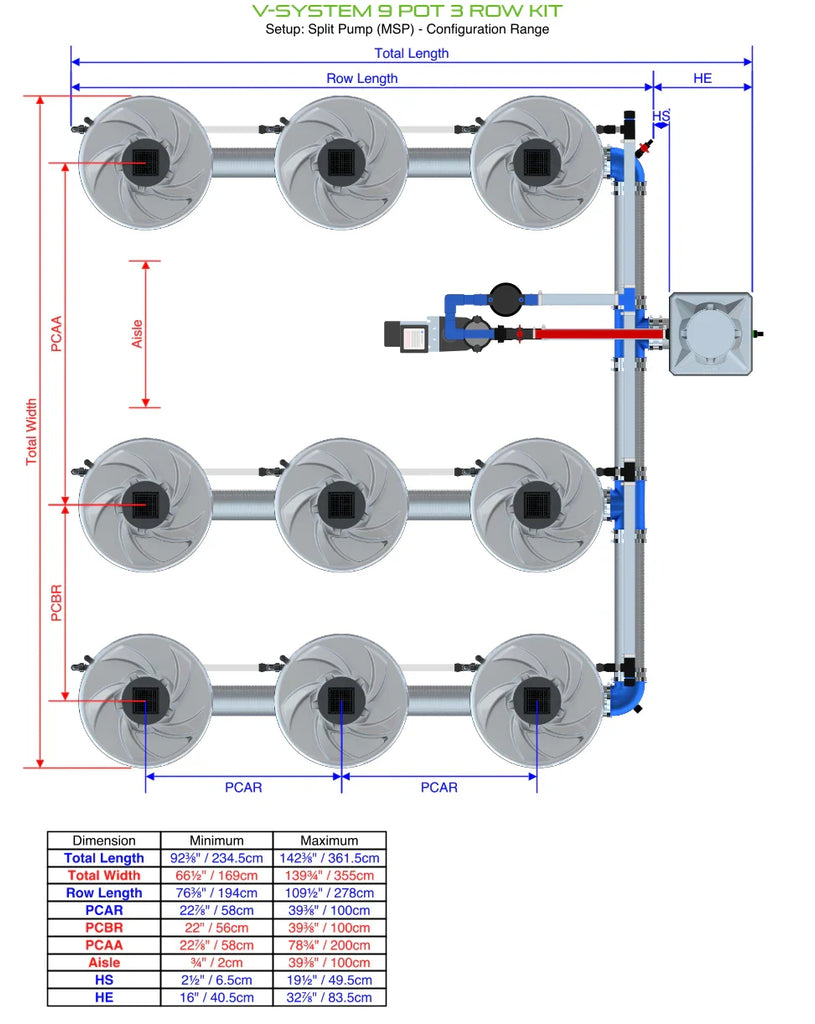

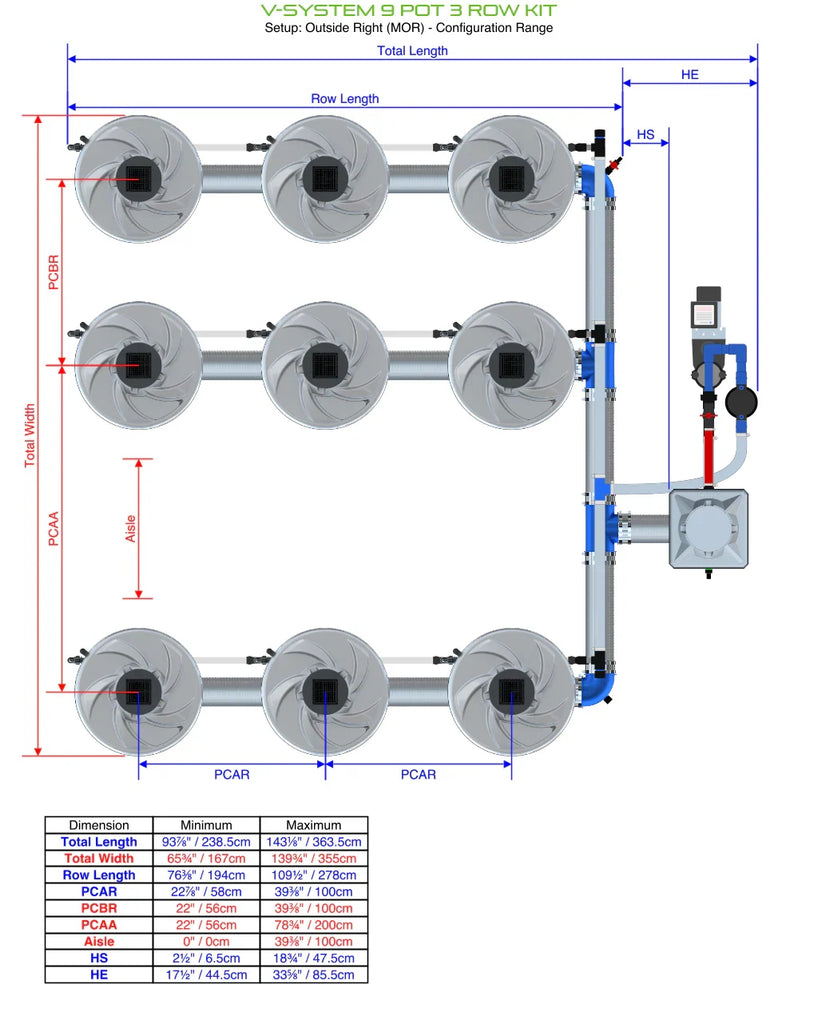

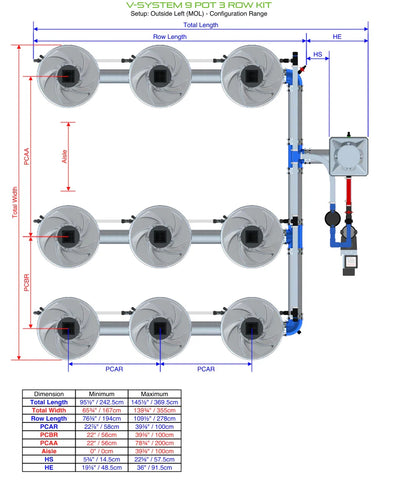

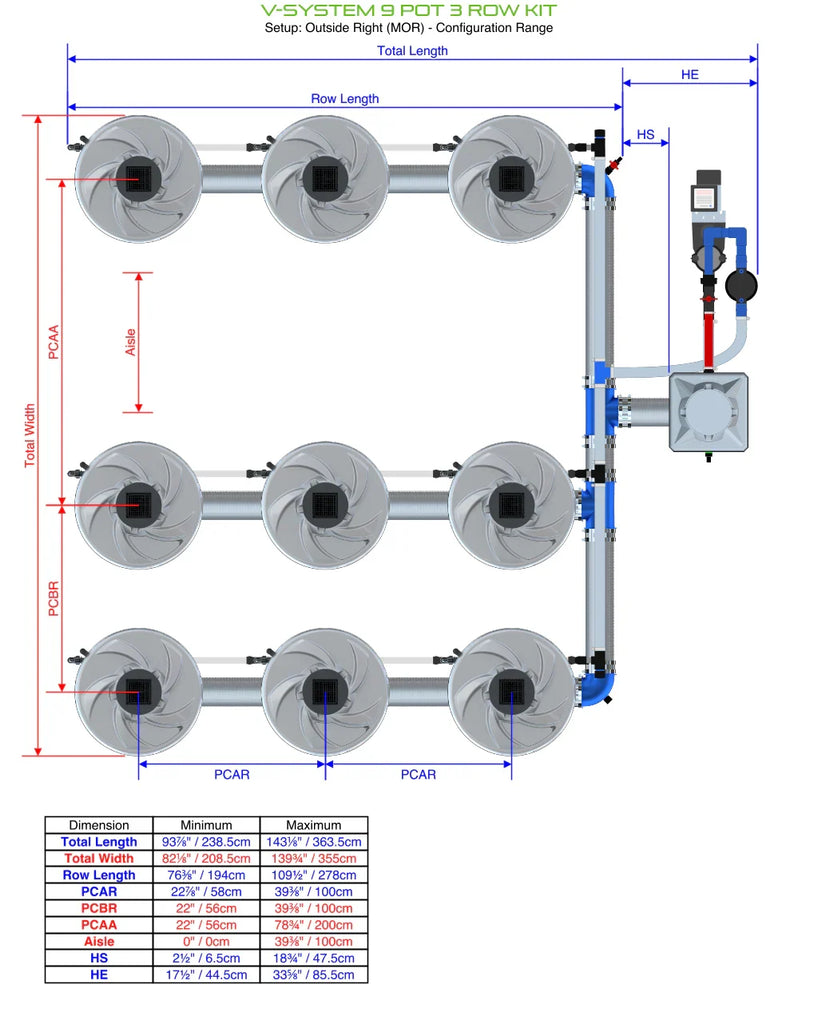

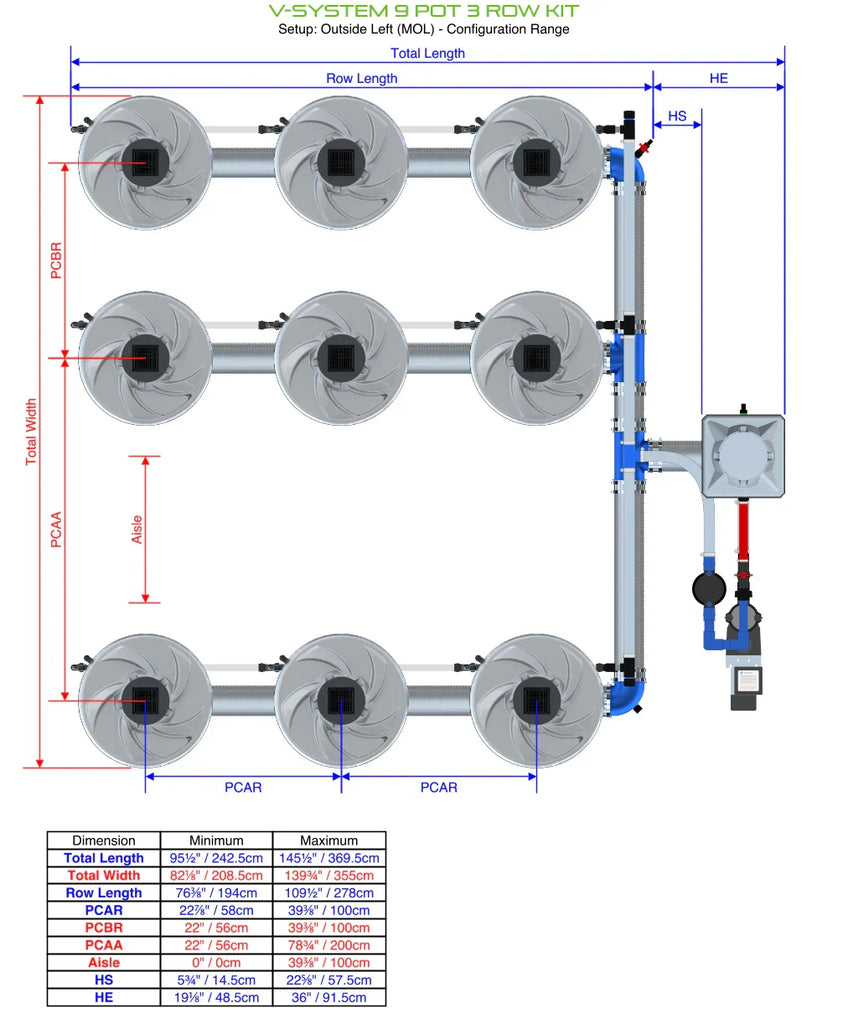

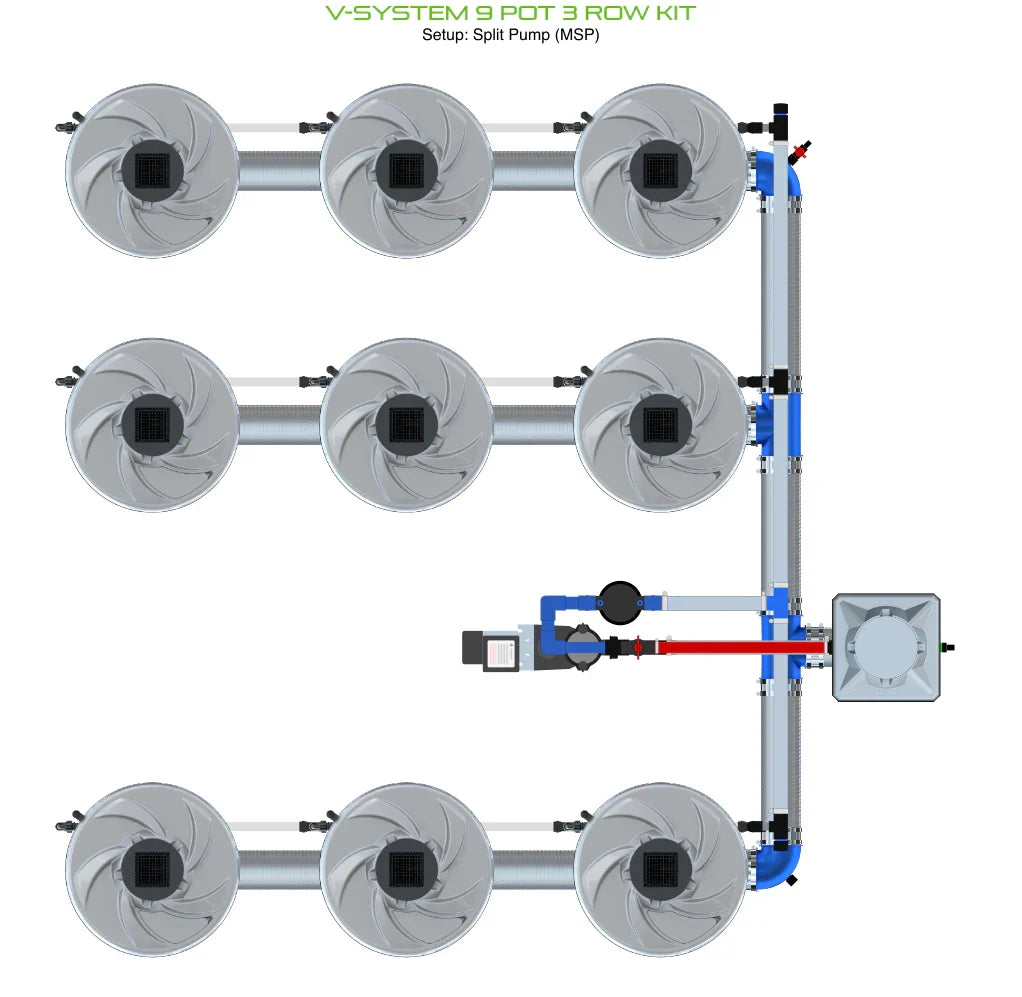

Minimum assembled size (can space pots more widely for a larger footprint):
Length: 6' 4.8" (76.8 inches / 1950 mm)
Width: 5' 9.3" (69.3 inches / 1760 mm)
Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
Wattage: 370 watts
Flow Rate: 3487 gal/hr (13200 L/hr)
Recommended water chiller minimum capacity: 198 gallons (750 L)Data Sheet
Download the instruction manual: here
Download the technical drawing: here
Kit Contents
The V-SYSTEM 9 Pot 3 Row Kit Includes:
1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
9 x V-Pot 58L
9 x V-Pot Base
9 x V-Pot Lid
9 x V-Pot Lid Inspection Cover
9 x Square Net Pot
9 x V-Pot Clip

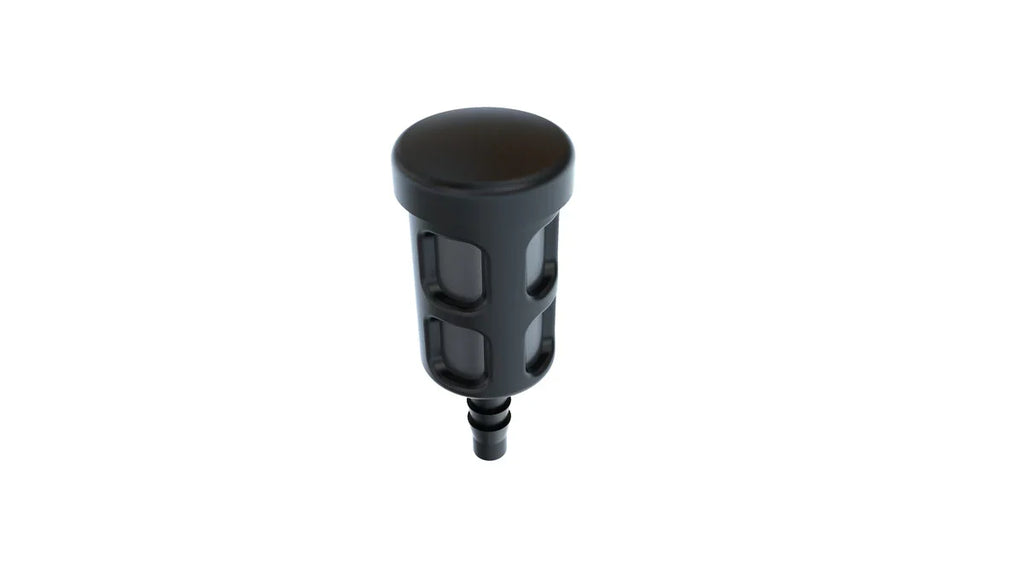

9 x Air Filter for V-SYSTEM Venturi, 6mm
9 x Silencer for Venturi
9 x Venturi Fitting
9 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
9 x Venturi Inlet Fitting for 22mm Pipe
10 x Nut 5"
10 x Washer 5" Green Silicone
26 x 5" Stainless Steel Clamp
1 x Distribution Tee 40mm
3 x DM Push-Fit Elbow 22-15mm V-SYSTEM
3 x DM Push-Fit Elbow 22mm V-SYSTEM
6 x DM Push-Fit Tee 22-15mm V-SYSTEM
1 x 1/2" Drain Cap Fitting
1 x Drain Tap 1/2"-16mm Barb
2 x Elbow 5" Barbed with Drain Point
4 x Elbow 5" Threaded Dual-Flow
1 x Filter Manifold Complete 40mm
1 x Float Valve
1 x V-SYSTEM Header Pot 20L 40mm
1 x Silver Lid
1 x Header Pot Blank
1 x Hosetail 16mm-3/4" Female Green
9 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
1 x Pipe 32mm Red 1 Meter Spiral
4 x Pipe 40mm Silver 1 Meter Spiral
10 x Pipe 5" Silver Spiral 80cm
2 x Tee 5" Barbed
6 x Tee Threaded 5" Dual-Flow
2 x Threaded Tank Connector 1"
1 x Vortex Pump Inlet Manifold 40mm Long
2 x 1" Cap for Chiller Connections
1 x Tank Connector Straight 32mm
1 x Tank Connector Straight 40mm
1 x Terminal Manifold Left 40mm
1 x Terminal Manifold Center 40mm
1 x Terminal Manifold Right 40mm
24 x 22mm Insert for 22mm Rigid Pipe
2 x Clamp Size 2
10 x Clamp Size 3
1 x 8mm Screwdriver for 5" Clamp
1 x Wrench 5"
1 x Wrench for Float Valve
1 x 8mm Socket for 5" Clamp
1 x Pipe Cutter 50mm
3 x Silicone Grease - Food Grade
