Description
Direct nutrient distribution: The V-SYSTEM provides direct distribution of nutrients to plants.
Maximum oxygen saturation: The system ensures maximum oxygen saturation for the plants.
No air pump needed: There's no need for an additional air pump with this system.
No heat transferred: The V-SYSTEM doesn't transfer any heat, ensuring a stable environment for your plants.
Vortex fluid motion: With its unique design, the system creates a vortex motion for fluid.
Key V-SYSTEM Features:
15 gallon (58L) V-POT: This system comes with a 15-gallon pot for optimal plant growth.
Water fill line: For easy water filling, a fill line is included.
Total-drainage bases: The bases of this system have been designed for total drainage.
Venturi injectors: V-SYSTEM features Venturi injectors for efficient operation.
5" spiral tubing: The system includes a 5" spiral tubing for assembly.
Integrated filtration: The V-SYSTEM is fitted with integrated filters for clean operation.
T304 Stainless clamps: The set comes with durable T304 stainless clamps.
Heavy-duty components: All components of the V-SYSTEM are heavy-duty and designed to last.
Push-fit feed connections: Feed connections in the system are push-fit for easy assembly and efficient flow.
JET-STREAM® Vortex™ pump: The system comes with a powerful JET-STREAM® Vortex™ pump to ensure efficient nutrient and water distribution.Specifications

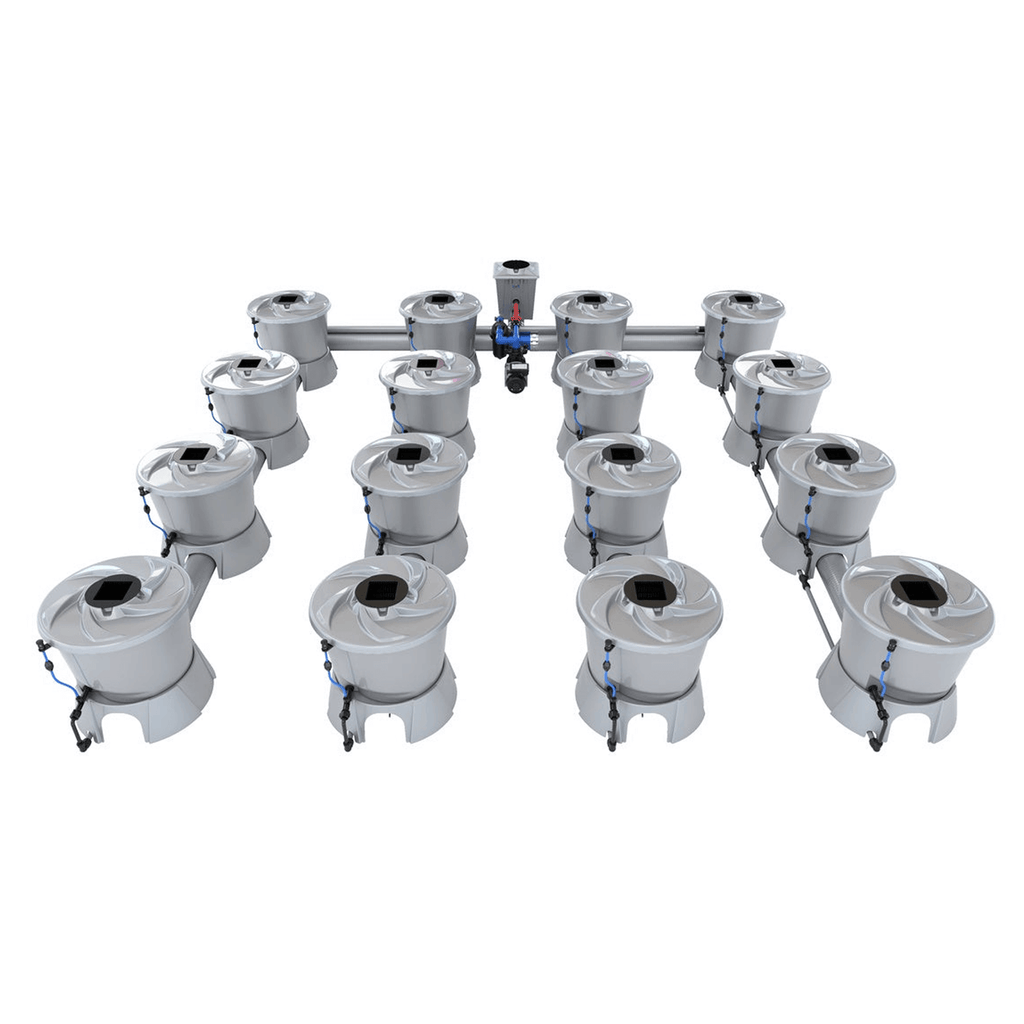

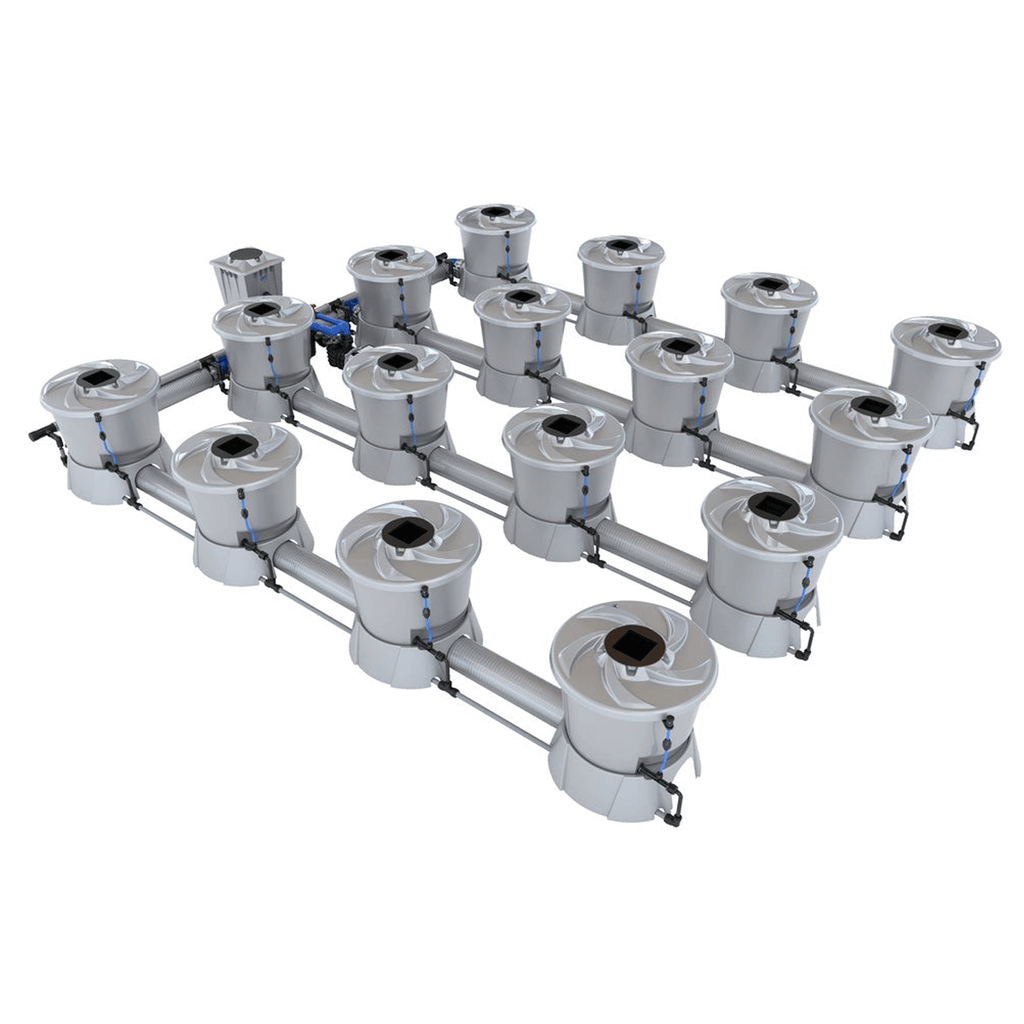

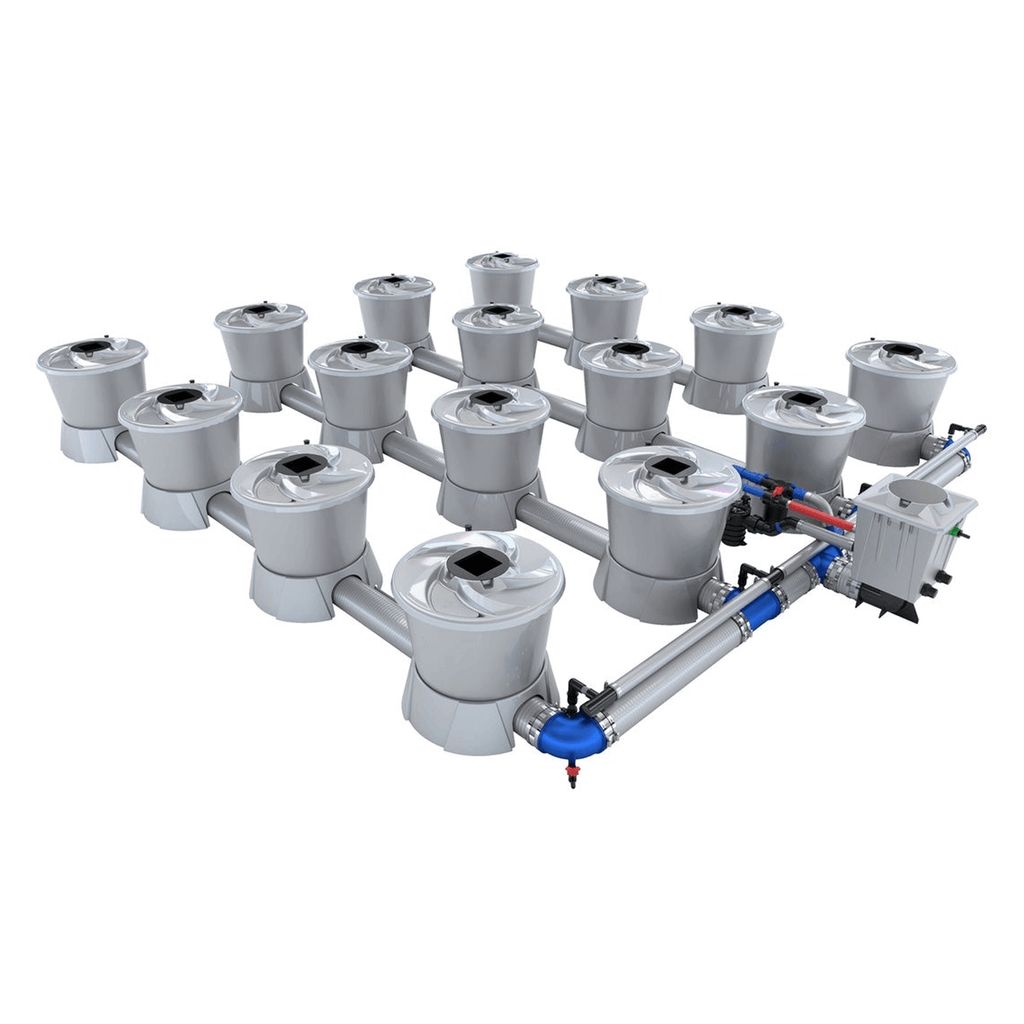

Product Name: V-SYSTEM 16 Pot 4 Row Kit
Technical Information
Number of pots: 16
Number of rows: 4
Kit total fluid volume: 261.5 gallons (990 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length: 8' 3.6" (99.6 inches / 2530 mm)
Width: 7' 7.3" (91.3 inches / 2320 mm)
Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h
Wattage: 550 watts
Flow Rate: 3646 gal/hr (13800 L/hr)
Recommended water chiller minimum capacity: 396 gallons (1500 L)Data Sheet
Download the instruction manual: here
Download the technical drawing: here
Kit Contents
The V-SYSTEM 16 Pot 4 Row Kit Includes:
1 x V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h
16 x V-Pot 58L
16 x V-Pot Base
16 x V-Pot Lid
16 x V-Pot Lid Inspection Cover
16 x Square Net Pot
16 x V-Pot Clip
16 x Air Filter for V-SYSTEM Venturi, 6mm
16 x Silencer for Venturi
16 x Venturi Fitting
16 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
16 x Venturi Inlet Fitting for 22mm Pipe
17 x Nut 5"
17 x Washer 5" Green Silicone
42 x 5" Stainless Steel Clamp
1 x Distribution Tee 40mm
4 x DM Push-Fit Elbow 22-15mm V-SYSTEM
4 x DM Push-Fit Elbow 22mm V-SYSTEM
12 x DM Push-Fit Tee 22-15mm V-SYSTEM
1 x 1/2" Drain Cap Fitting
1 x Drain Tap 1/2"-16mm Barb
2 x Elbow 5" Barbed with Drain Point
5 x Elbow 5" Threaded Dual-Flow
1 x Filter Manifold Complete 40mm
1 x Float Valve
1 x V-SYSTEM Header Pot 20L 40mm
1 x Silver Lid
1 x Header Pot Blank
1 x Hosetail 16mm-3/4" Female Green
16 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
1 x Pipe 32mm Red 1 Meter Spiral
5 x Pipe 40mm Silver 1 Meter Spiral
18 x Pipe 5" Silver Spiral 80cm
3 x Tee 5" Barbed
12 x Tee Threaded 5" Dual-Flow
2 x Threaded Tank Connector 1"
1 x Vortex Pump Inlet Manifold 40mm Short
2 x 1" Cap for Chiller Connections
1 x Tank Connector Straight 32mm
1 x Tank Connector Straight 40mm
1 x Terminal Manifold Left 40mm
2 x Terminal Manifold Center 40mm
1 x Terminal Manifold Right 40mm
40 x 22mm Insert for 22mm Rigid Pipe
2 x Clamp Size 2
12 x Clamp Size 3
1 x 8mm Screwdriver for 5" Clamp
1 x Wrench 5"
1 x Wrench for Float Valve
1 x 8mm Socket for 5" Clamp
1 x Pipe Cutter 50mm
4 x Silicone Grease - Food Grade
