Description
Product Details

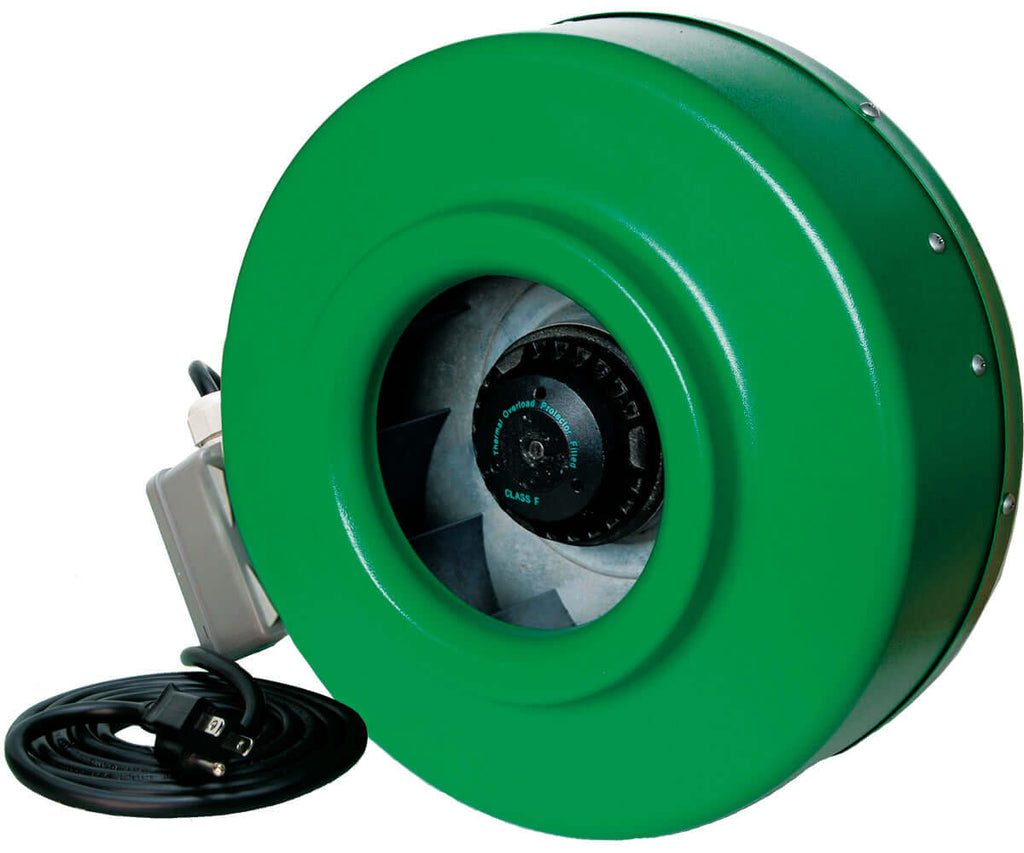

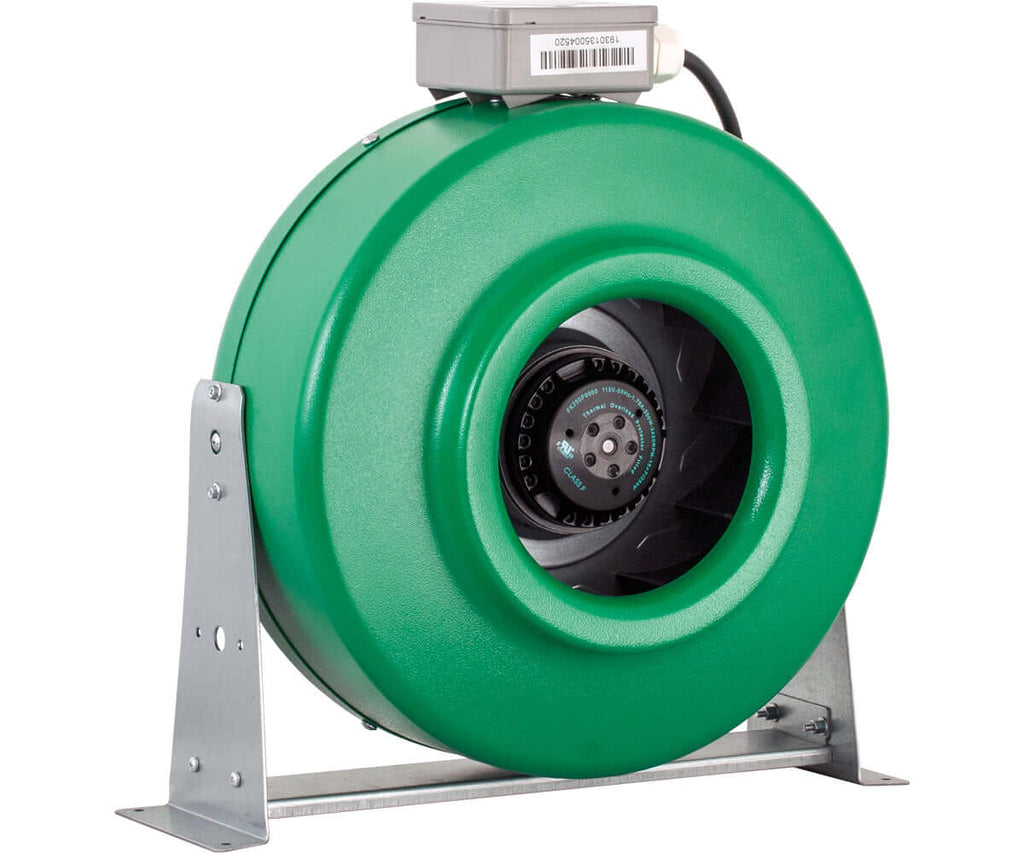

- Active Air Inline Duct Fans offer innovation and performance at a great price. With a full line of fans to meet your needs, all Active Air Fans feature:
- Durable ceramic-coated metal housing
- UL-recognized components
- High quality molded impeller
- Low noise output
- Brushless thermally protected AC motors with sealed for life bearings (will not require any lubrication)
Specifications
- Approx. CFM @ 0.0 SP: 720
- Average Rated Life Hours: 20000
- CSA_Registration: 258978
- Diameter: 8
- Frequency: 60Hz
- Max. Decibels: 75
- Rated Amperage: 1.72
- Rated Wattage: 198
- RPM: 2520
- Voltage: 120
- Wire Gauge (AWG): 14
- Barcodes: 638104003605 (UPC-A)
Dimensions
- 14.5L x 14.5W x 10.5H (EA) 40.0L x 48.0W x 87.0H (PL)
- Shipping Weight: 15.24
- Shipping Weight: 15.24 lbs.
Data Sheet
- Download the instructions: Instructions - Active Air Inline Duct Fans
Kit Contents
- mounting brackets and 8 foot pre-wired 120V cord
