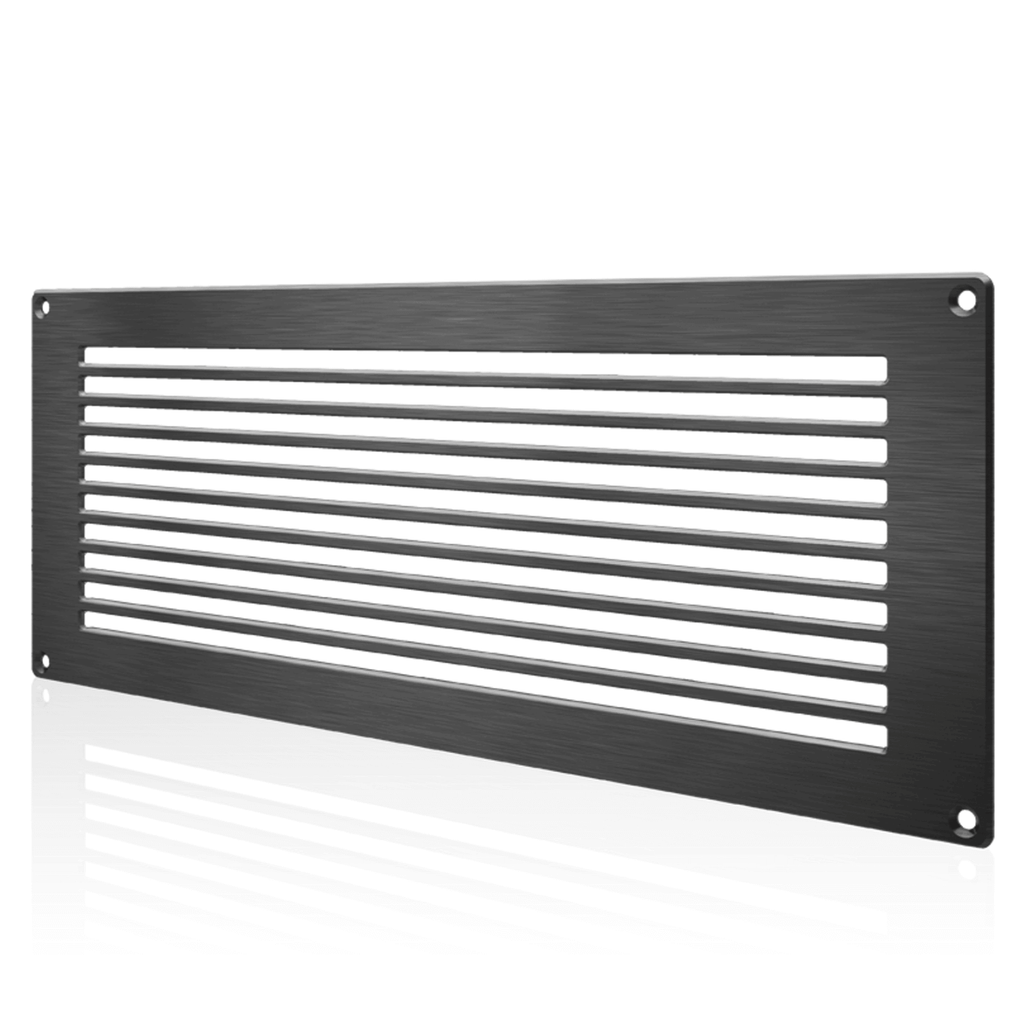

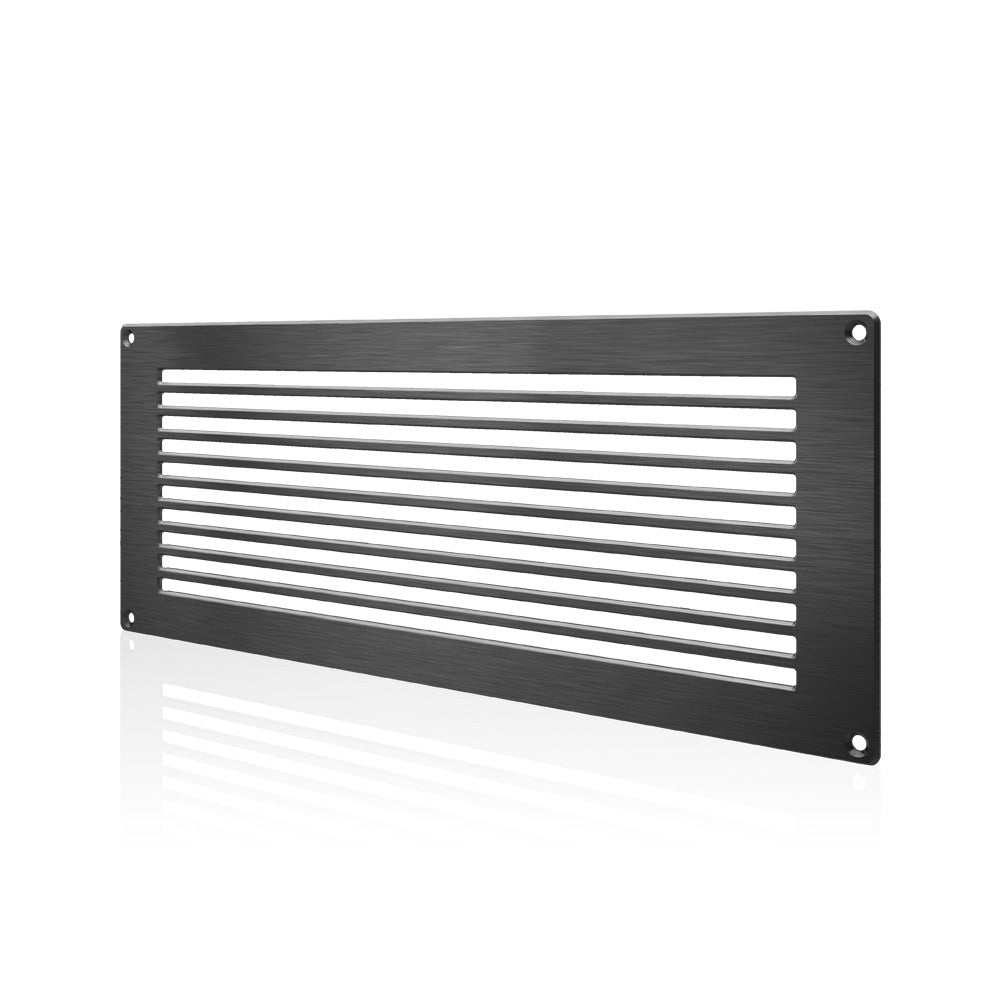

Description
- Designed to be installed into doors, cabinets, and walls to help increase ventilation.
- Can also be used in conjunction with a fan system to act as an intake or exhaust vent.
- Ventilation grille design maximizes airflow while maintaining the frame's structural integrity.
- Features a CNC machined aluminum frame, with a brushed black finish and flat screw heads.
Specifications
Product Identification
- Manufacturer: AC Infinity Inc.
- Product Name: AIRFRAME Grille 7, Black
- Product Model: AC-AGB7
- UPC Code: 819137020252
Product Dimensions
- Required Mounting Hole: 14.5 x 5 in. (36.8 x 12.7 cm)
- Hole to Hole Distance: 15.9 x 5.8 in. (40.3 x 14.8 cm)
- Screw Hole Diameter: 0.197 in (0.5 cm)
- Materials: Aluminium
- Finish: Anodized Brushed
- Color: Black
Kit Contents
- (4) wood mounting screws and (4) machine mounting screws with nuts.
Product Description:
The AIRFRAME Grille 7 is an aluminium grille that can be installed into doors, cabinets, and walls to help increase ventilation. The grille can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. To mount the grille into your cabinet or wall, you would need to cut a rectangular hole approximately 14.5 by 5 inches. Features a CNC machined anodized aluminum frame with a brushed black finish and matching flat-head screws. Information on the additional included hardware can be found below.
Hardware:
Includes four wood screws and four machine screws with nuts to mount the ventilation grille onto a cabinet or wall. All mounting screw heads are black to match the mounting frame.
