Description

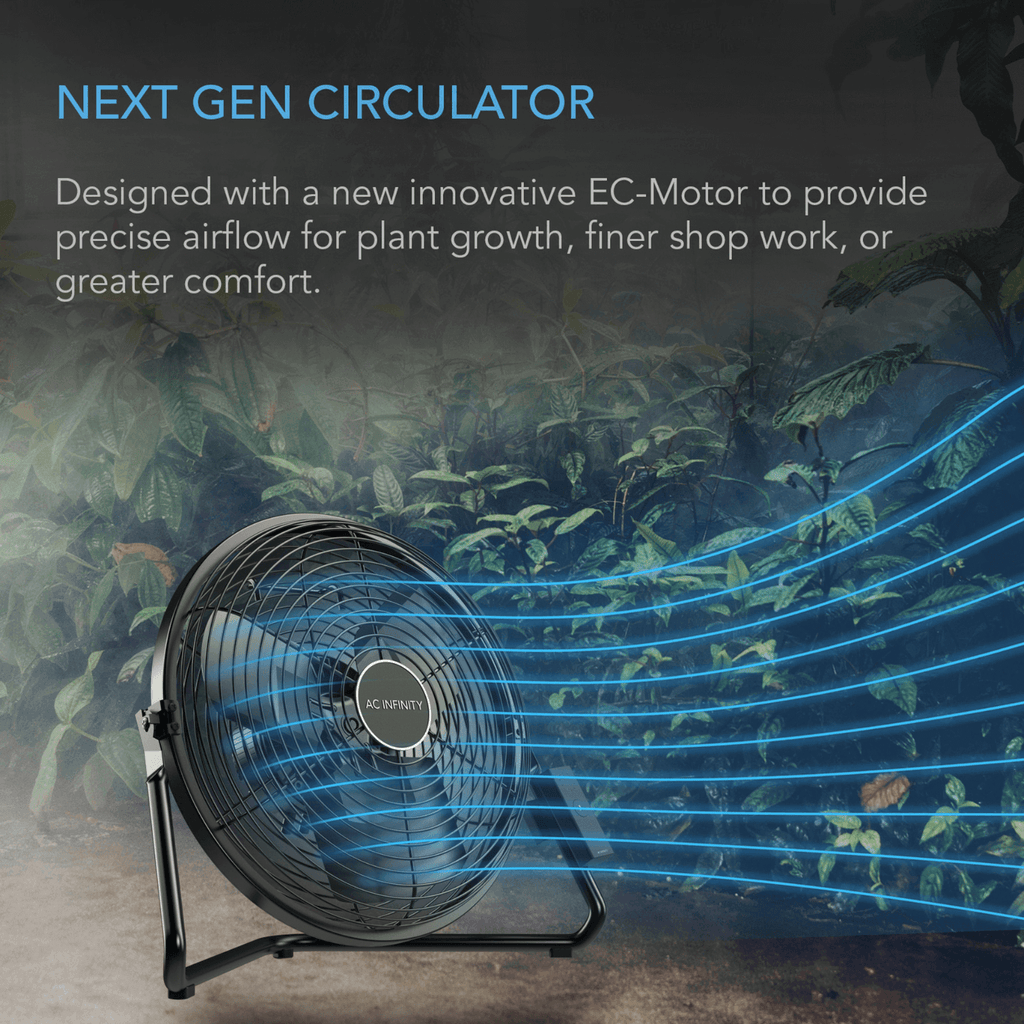

A next-gen fan designed for precise circulation control for plant growth, finer shop work, or tailored comfort.

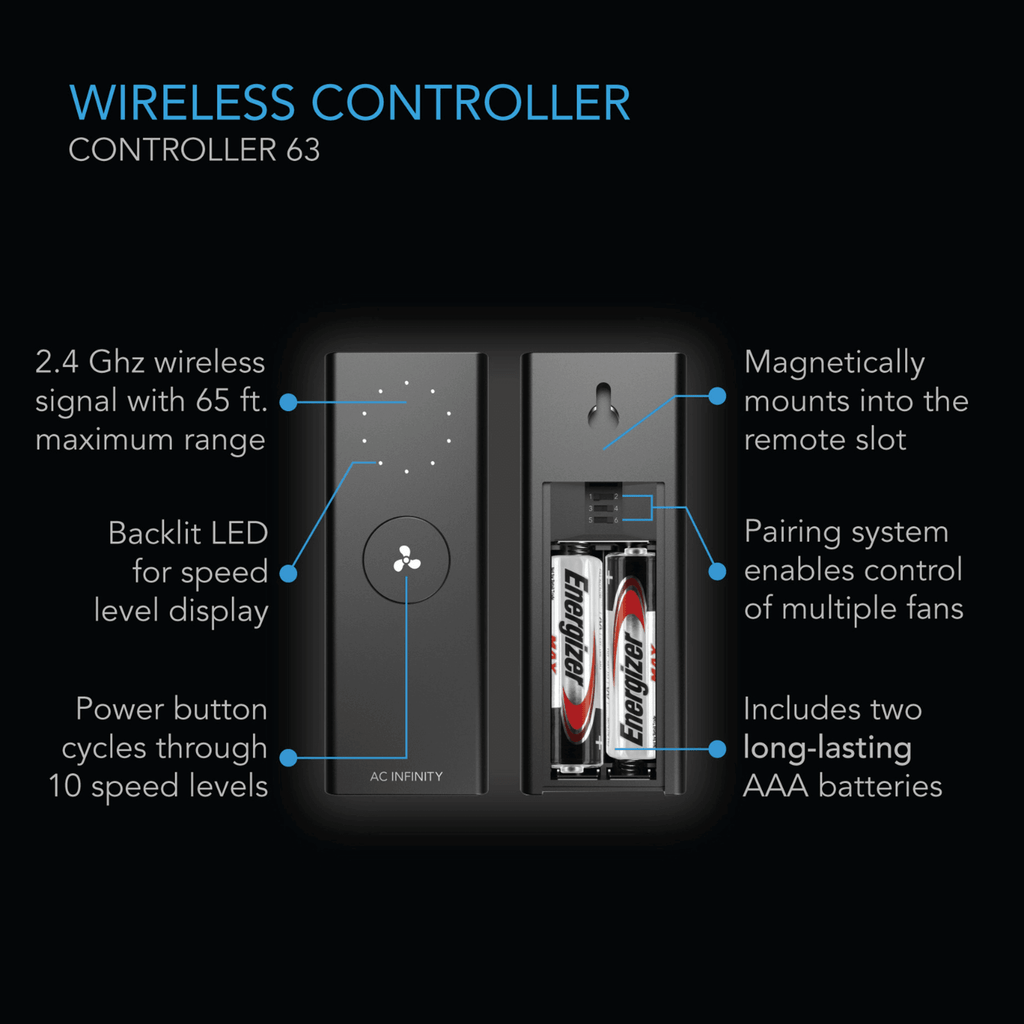

10-speed wireless remote; smart digital PWM controls from silent, gentle breezes to high-velocity airflow.
New innovative EC motor is quieter, more energy-efficient, and has twice the lifespan of AC floor/wall fans.
IP-44 rated, heavy-duty build performs well in harsher environments with high humidity and temperatures.

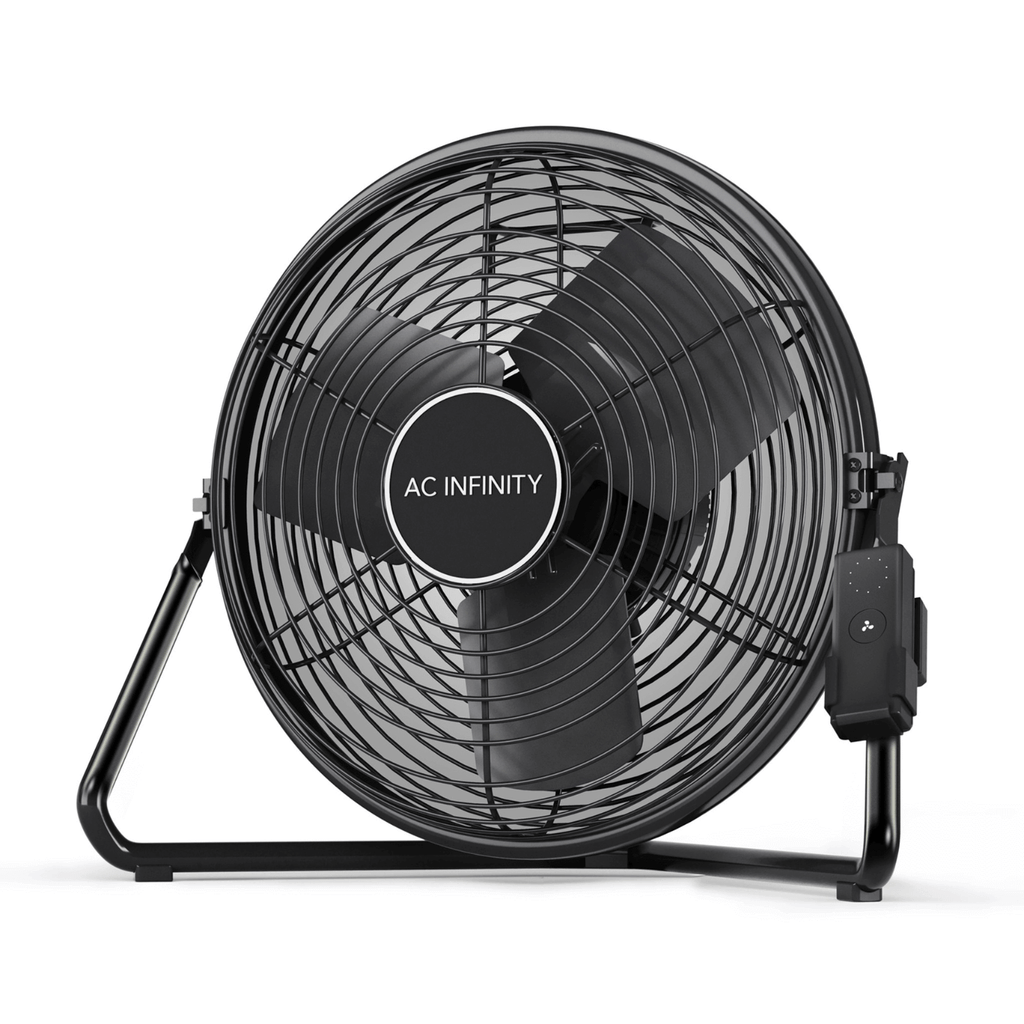

Floor standing or wall-mounted using included hardware with a 360-degree adjustable tilt to direct airflow.

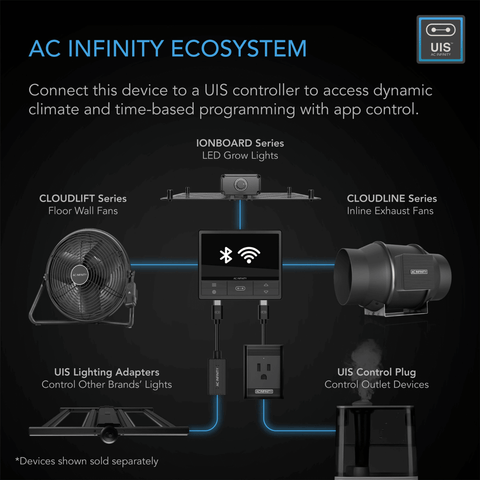

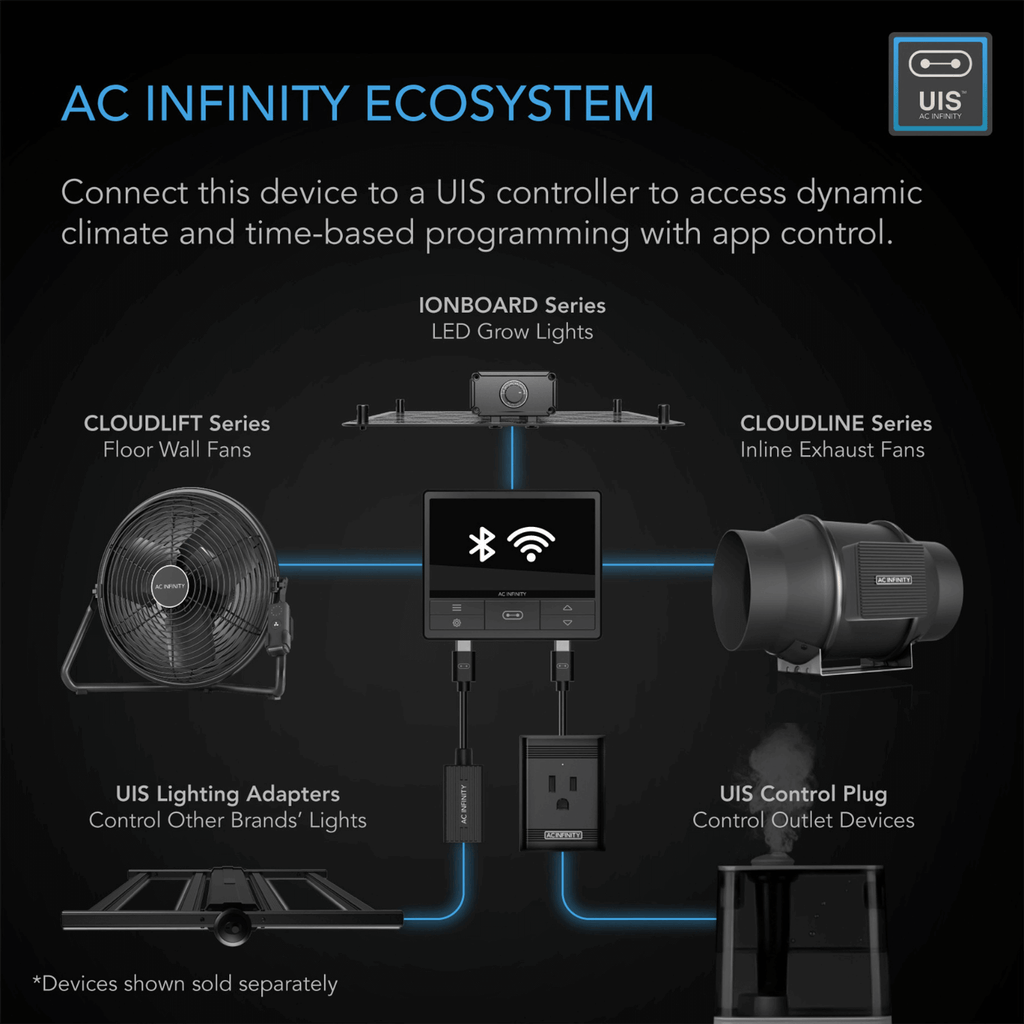

Product Description: A floor wall fan designed to provide precise control of an environment's air circulation in applications like plant growing, finer shop work, or tailored personal comfort. Utilizes a cutting-edge EC motor with PWM control to access a full range of fan speeds from silent, ultra-gentle breezes to high-velocity airflow. Includes a 10-speed wireless remote with batteries included. The unit can be manually adjusted with a 360-degree tilt to direct airflow and features a heavy-duty IP-44 rated construction for harsher environments. Includes hardware for both floor standing and wall mounting and can be powered through a standard outlet with its power plug cord. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

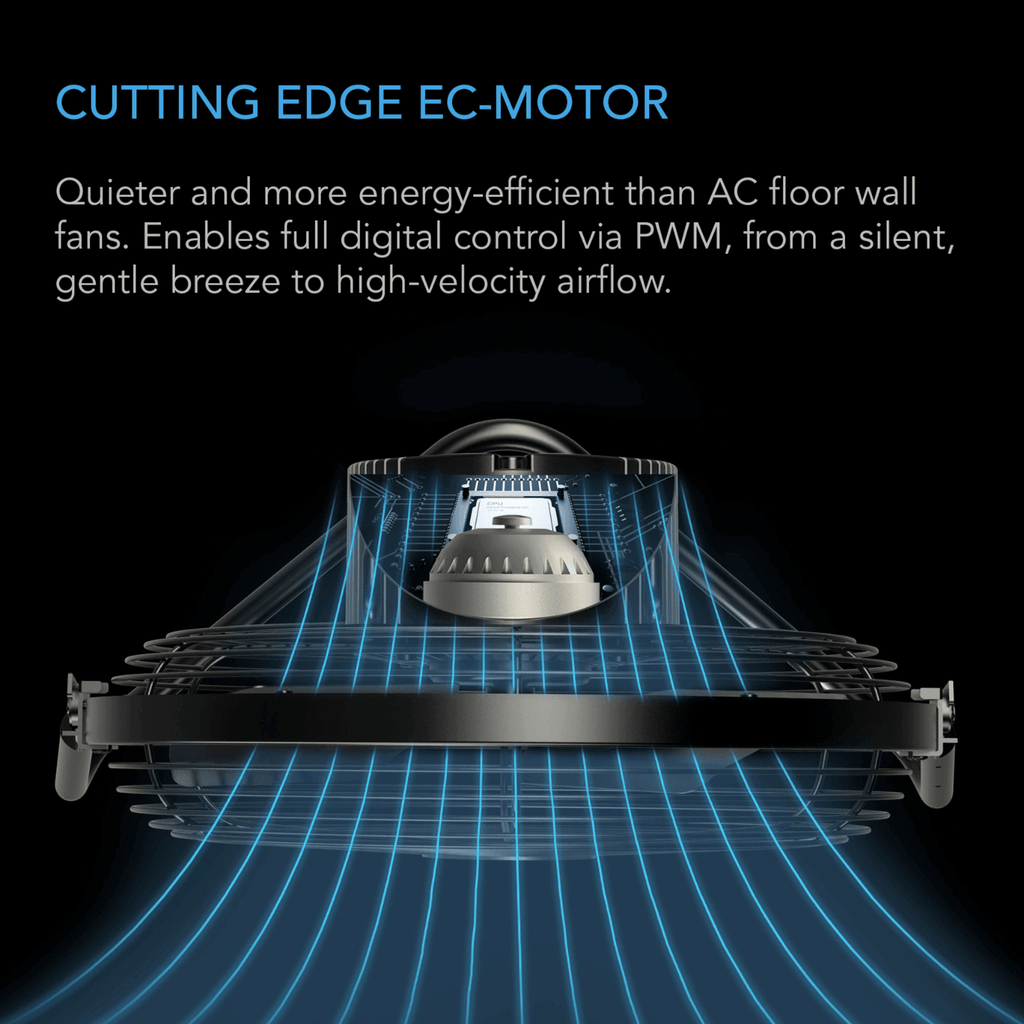

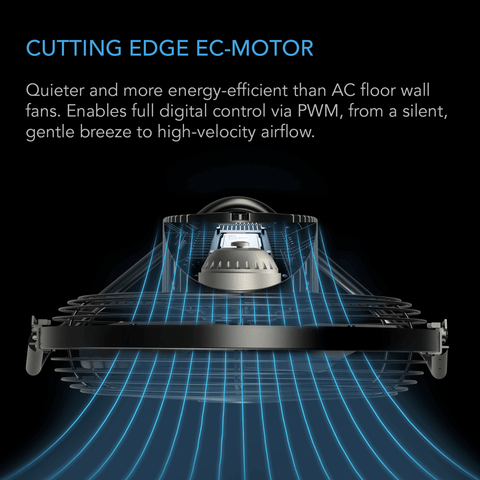

Next-Gen EC Motor: Features a cutting-edge Electronically Commutated (EC) motor with dual-ball bearings, controlled digitally using precise electronic pulses. This PWM technology enables the fan to operate quieter and control the full range of its speed 0 to 100% without additional heat or noise. In comparison, traditional floor wall fans contain AC-motors that rely on voltage suppression for limited speed control. EC motors pay for themselves in the long run having twice the lifespan and being 40% more energy-efficient.
Rated for Harsh Environments: Each industrial fan system features heavy-duty construction with a steel enclosure, rigid stand, and weight-balanced aluminum blades and impellers that reduce vibrations. All components are specially sealed to be IP-44 rated to be highly resistant to liquids and dust. Put together, these upgrades enable greater performance in harsher environments with high humidity and varying temperatures.
Mounting and connection

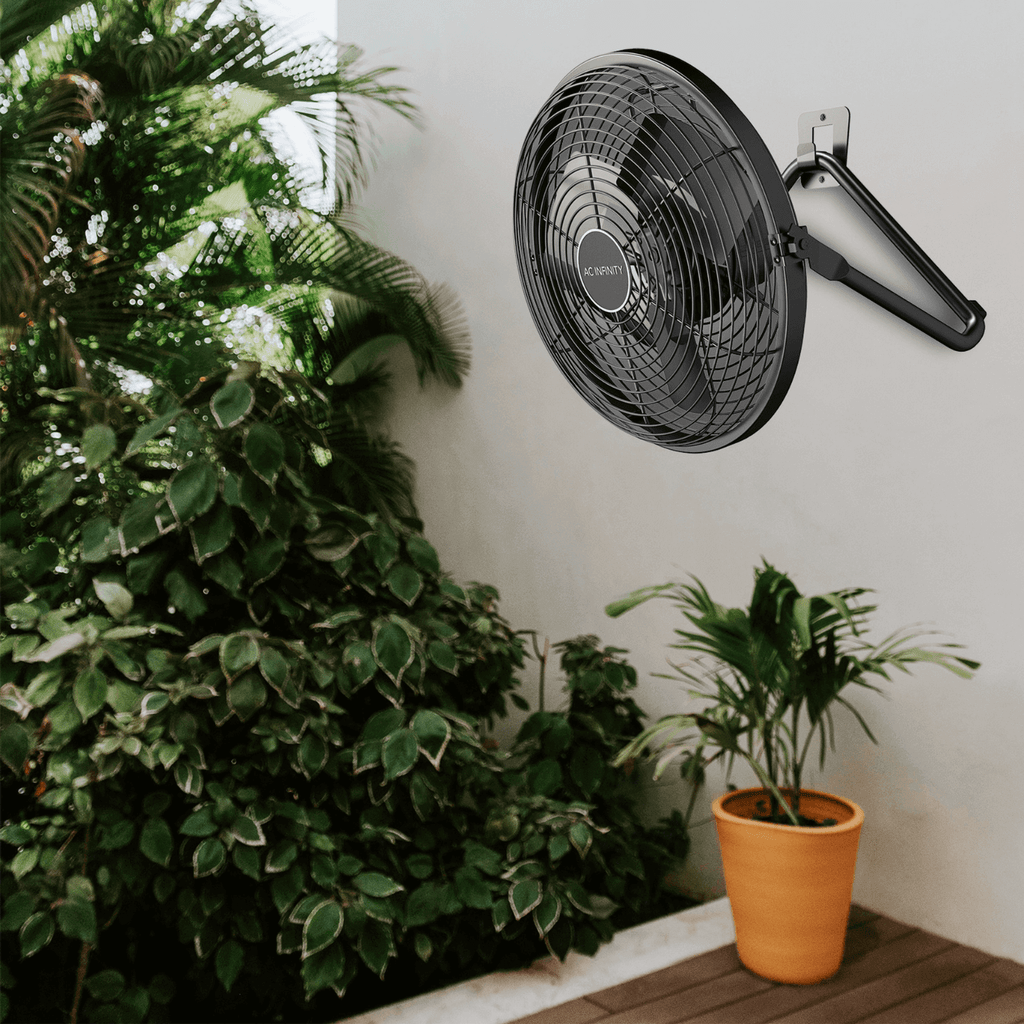

Choose a structurally sound, unobstructed wall location, secure the bracket with the supplied wall hardware and hook the stand onto the bracket. Connect the fan to the wireless receiver using an included UIS signal cord and install both AAA batteries in the remote.
Electrical and rotating-part safety
Read the manual and match the specified supply. Do not use in flammable, explosive, chemical-laden or wet atmospheres. Keep fingers and foreign objects out of the grille, leave airflow openings clear and do not cover cords with fabric. Unplug before installing, servicing or moving the fan; programmed off is not power isolation. Do not use damaged equipment. Follow local installation requirements and seek qualified installation assistance when needed.

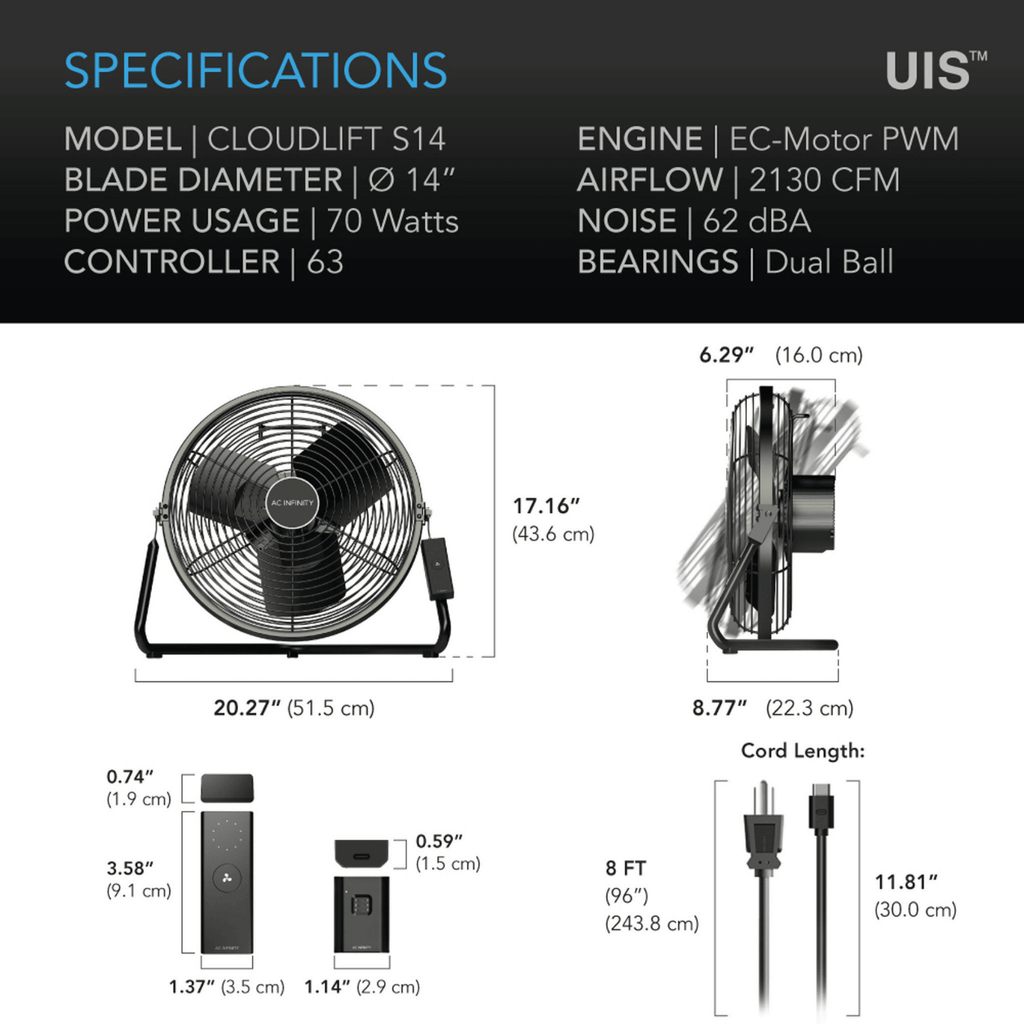

Specifications
Product Identification
- Manufacturer: AC Infinity Inc.
- Product Name: CLOUDLIFT S14
- Product Model: AC-WFS14
- UPC Code: 819137022430
Product and Mounting Dimensions - Fan Unit
- Cord Length to Controller: 11.81 in. (30.0 cm)
Product and Mounting Dimensions - Controller
- Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
- Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
- Mounting Hole Size: Ø 0.25 in. (Ø 6.5 mm)
Product Performance and Technical Specs
- Airflow: 2130 CFM
- Static Pressure: 7.182 mm-H20
- Noise: 70 dBA
- Operating Voltage: 100 to 240V
- Power: 70 W
- Current: 0.95 A
- Wall Adapter Input: 100 to 240V AC
- Operating Humidity: 35 to 85% RH
Data Sheet
CLOUDLIFT CL2212X2 operating manual
Kit Contents
- Industrial wall/floor fan (1), wireless controller (1), wireless receiver (1), AAA batteries (2), wall-hang bracket (1).
- UIS male-to-male cords:10-foot (1),20-inch (1); wire ties (1); wall anchors (2), wall-hang wood screws (2), controller screw sets (2).
