Description
- An ultra-quiet dual-fan system designed to cool cabinets where minimal noise is required.
- Automated programming that self-adjusts cooling power in response to changing temperatures.
- Features an LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
- Two fan units with controller, containing CNC machined aluminum frames with a modern matte-white finish.
- Each Unit's Dimensions: 6.3 x 6.3 x 1.3 in | Total Airflow: 104 CFM | Total Noise: 19 dBA | Bearings: Dual Ball
Product Description

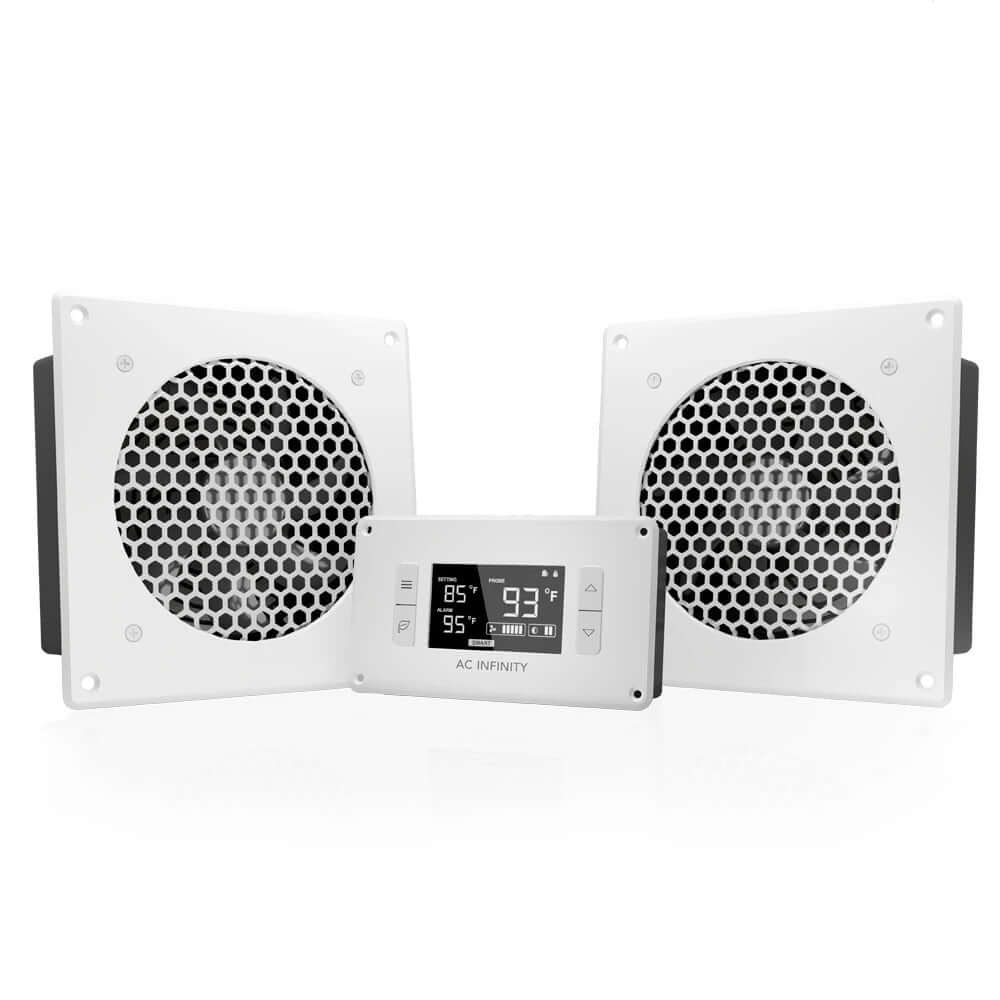

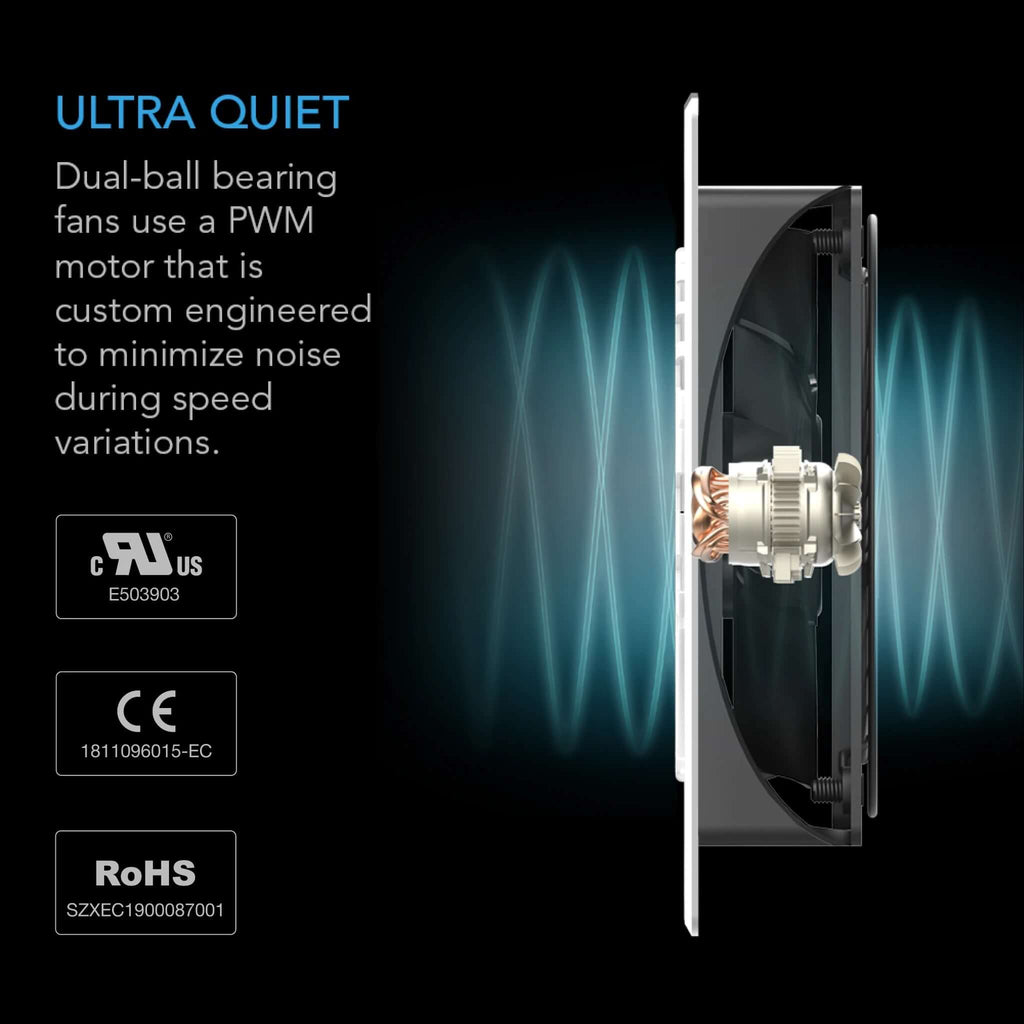

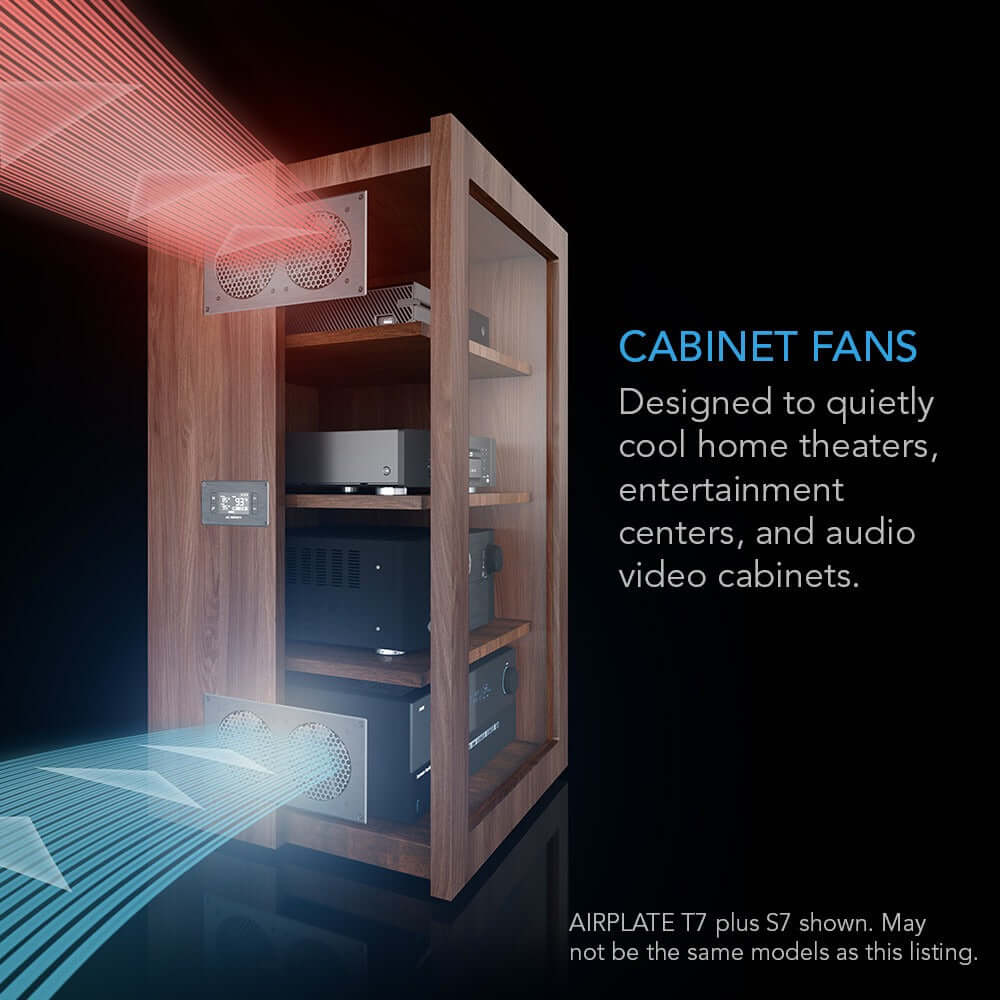

The ultra-quiet dual-fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. This kit includes two single fan units, one exhaust and one intake, plus a thermal controller. Each fan uses a custom motor engineered to minimize noise during speed variations and is certified by CE and RoHS. Contains AC Infinity low-voltage component fans ACX-FD1225(B)05W5, listed under the UL-507 component requirements in certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame finished with matte-white powder coat paint. The airflow direction of each fan can be reversed between exhaust and intake using a screwdriver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.
Thermal Controller

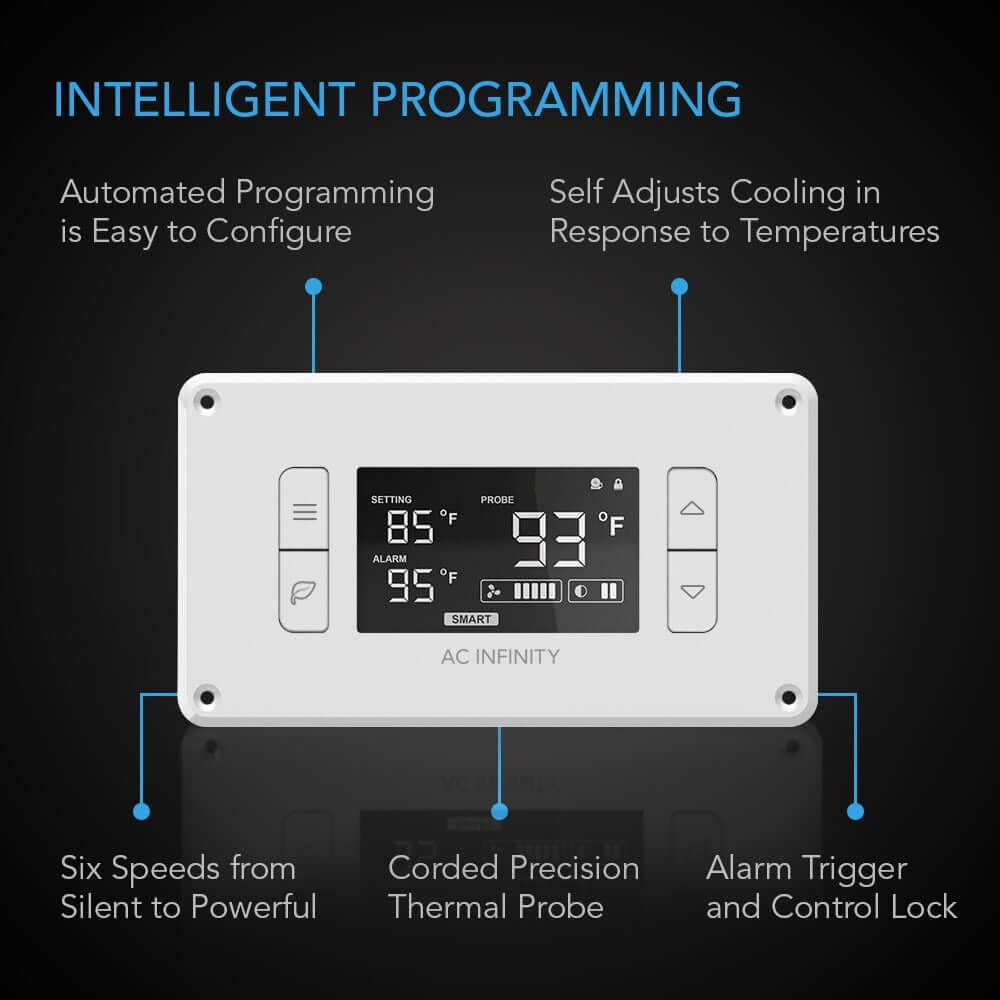

The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features include an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.
Connecting Additional Units

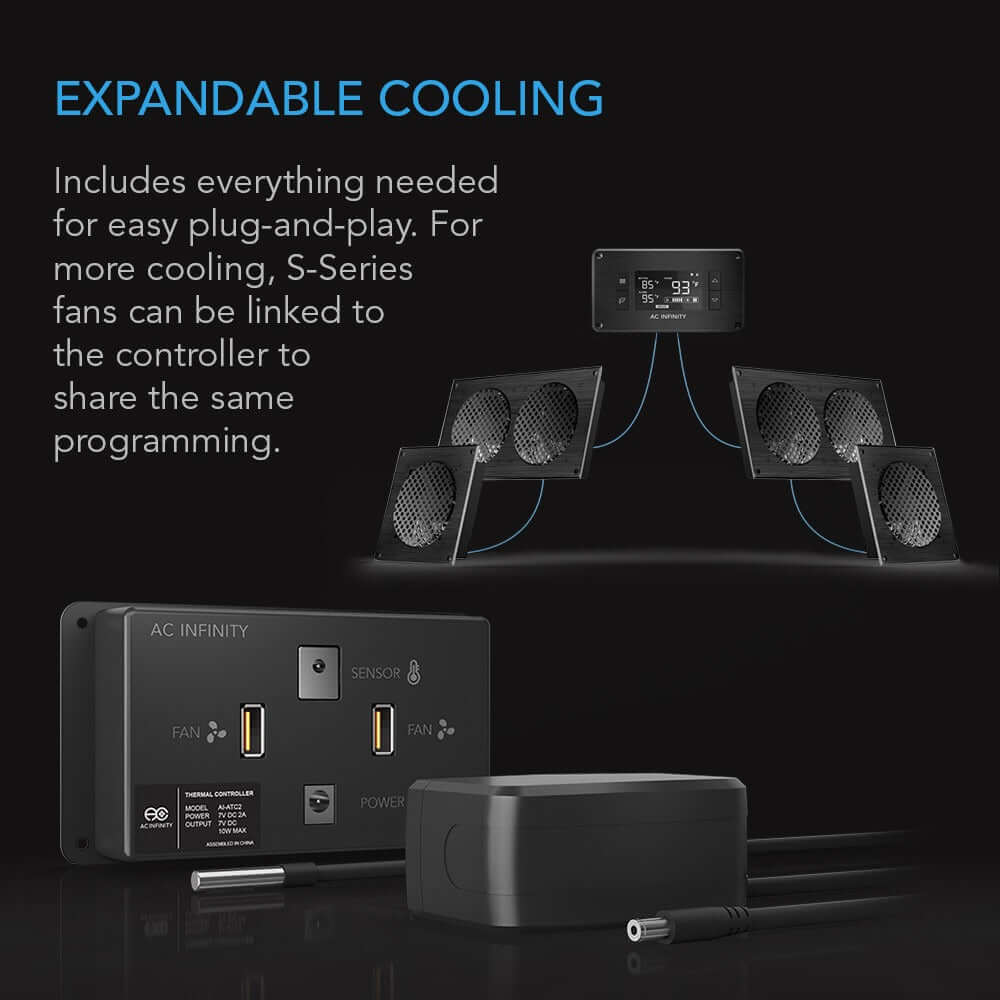

For cabinets that require more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.
Applications

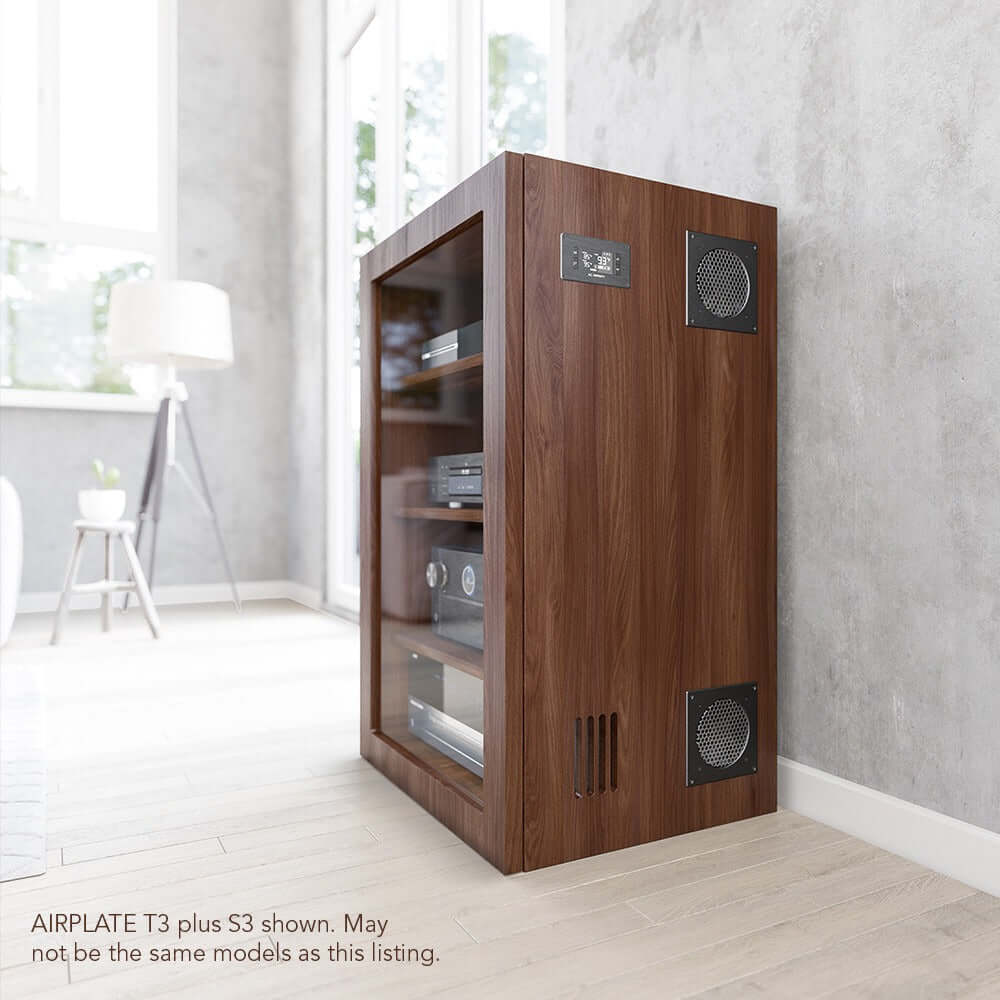

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.
Specifications
- Brand: AC Infinity
- Product Details: Product Identification
- Manufacturer: AC Infinity Inc.
- Product Name: AIRPLATE T8 White
- Product Model: AI-APT8-W
- UPC Code: 819137020504

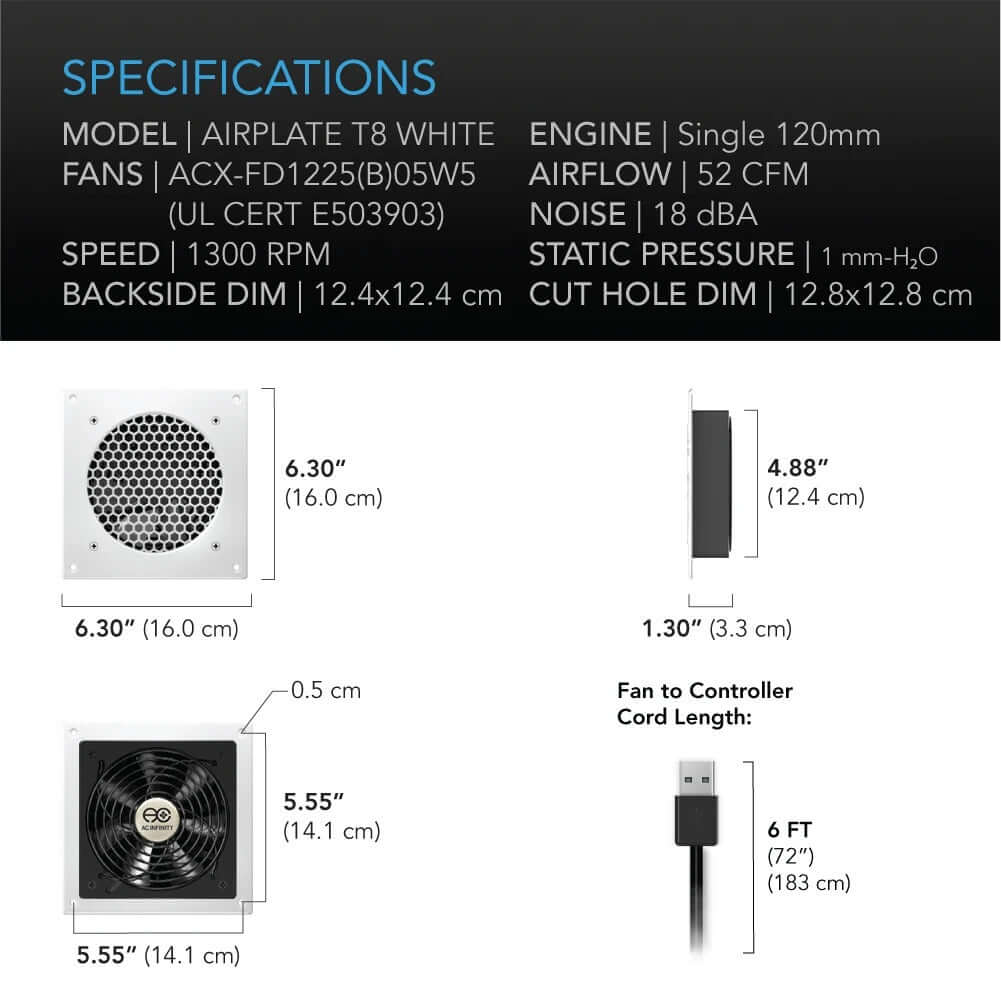

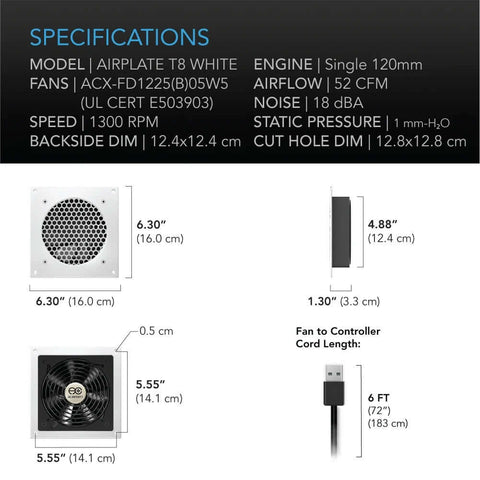

- Total Dimensions: 6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm)
- Backside Enclosure Dimensions: 4.88 X 4.88 in (12.4 x 12.4 cm)
- Required Mounting Hole: 5.04 x 5.04 in (12.8 x 12.8 cm)
- Hole to Hole Distance: 5.55 x 5.55 in (14.1 x 14.1 cm)
- Screw Hole Diameter: 0.197 in (0.5 cm)
- Cord Length: 72 in (6 feet)
- Mounting Template: PDF

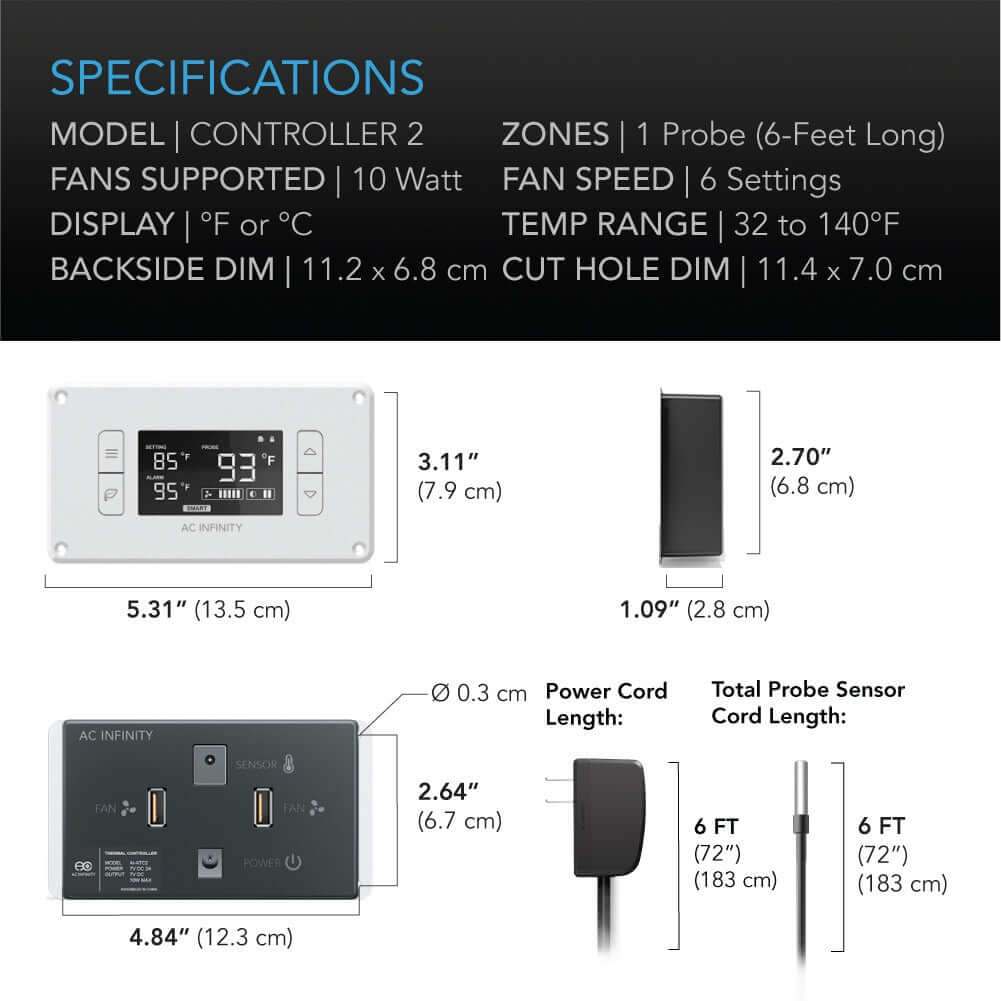

- Total Dimensions: 5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm)
- Backside Enclosure Dimensions: 4.41 x 2.68 in. (11.2 x 6.8 cm)
- Required Mounting Hole: 4.48 x 2.76 in. (11.4 x 7.0 cm)
- Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
- Screw Hole Diameter: 0.119 in (0.3 cm)
- Display Size: 2.25 x 1.25 in. (4.7 x 3.2 cm)
- Cord Length: 72 in. (6 feet)
- Thermal Probe Length: 72 in. (6 feet)
- Mounting Template: PDF
- Number of Fans: 2
- Color: Matte White
- Total Noise: 19 dBA
- Static Pressure: 1 mm-H2O
- Operating Voltage: 3 to 7V DC
- Power: 3.3 W
- Current: 0.66 A
- Wall Adapter Input: 100 to 240V AC
- Operating Humidity: 35 to 85% RH
- Operating Temperature: 0 to 158°F
- Fan Bearings: Dual Ball
- Mounting Positions: Horizontal or Vertical
- L10 Life Expectancy: 67,000 Hours
- Fan Quality Approvals: UL, CE, RoHS
- UL Certification (Fans Only): PDF
- CE Certification (Whole Product): PDF
- RoHS Cert. (Whole Product): PDF
- Product Manual: PDF
- Supplier Weight: 761 g (1.68 lb)
Data Sheets
- Download the data sheet: here
- Download the data sheet: here
- UL component-fan certificate E503903 — low-voltage fan pattern ACX-FD1225(B)05W5 (component requirements only): here
- Download the data sheet: here
- Download the data sheet: here
- Download the user manual: here
