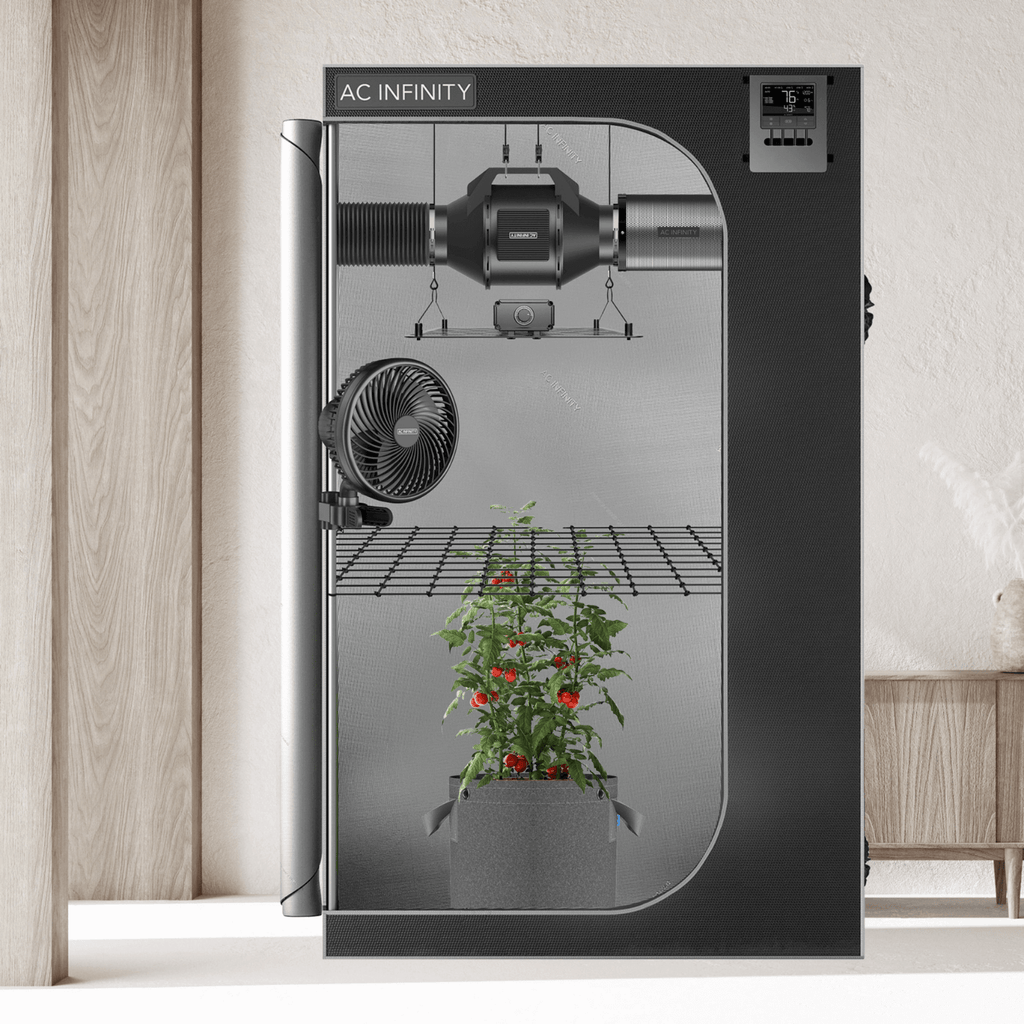

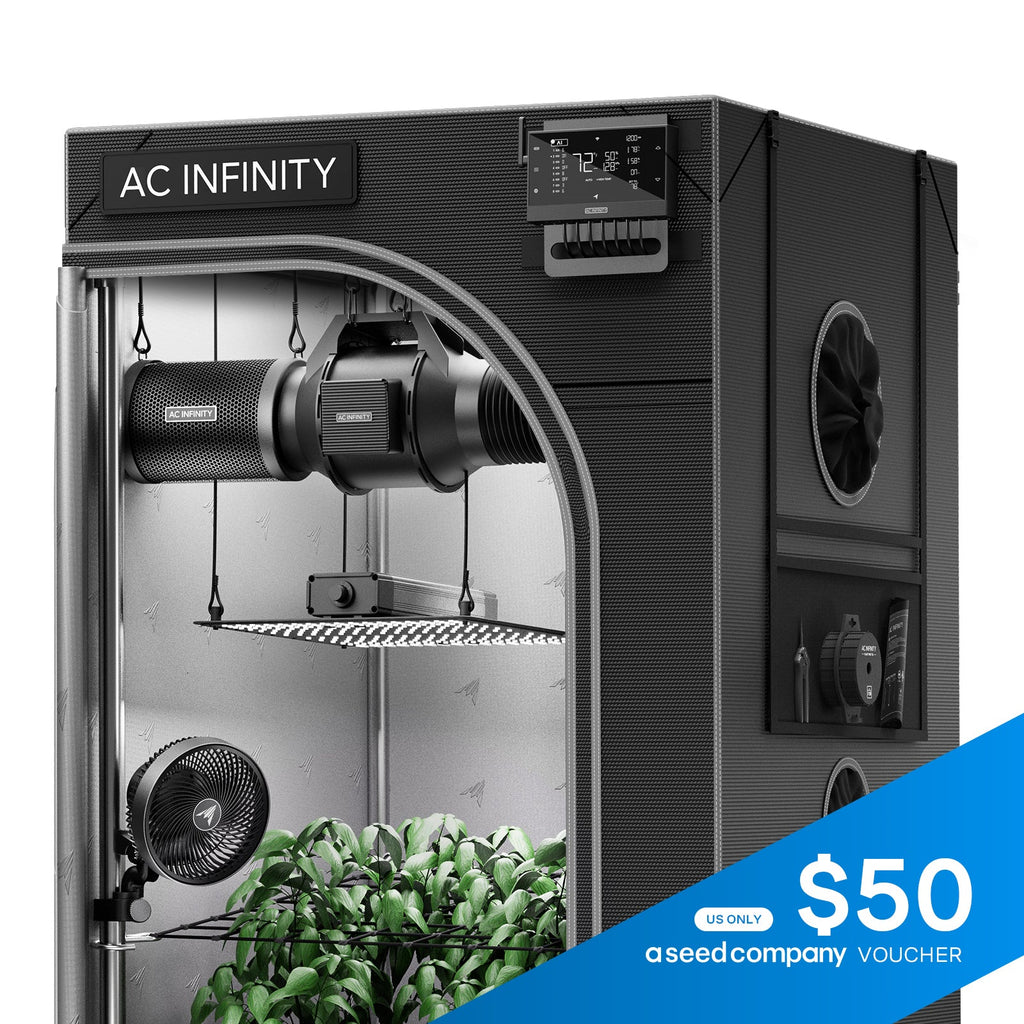

An advanced grow tent kit with smart controls and integrated components to start an indoor growing system.
The controller automates each fan and light with individual programs to dynamically adjust speed and brightness.

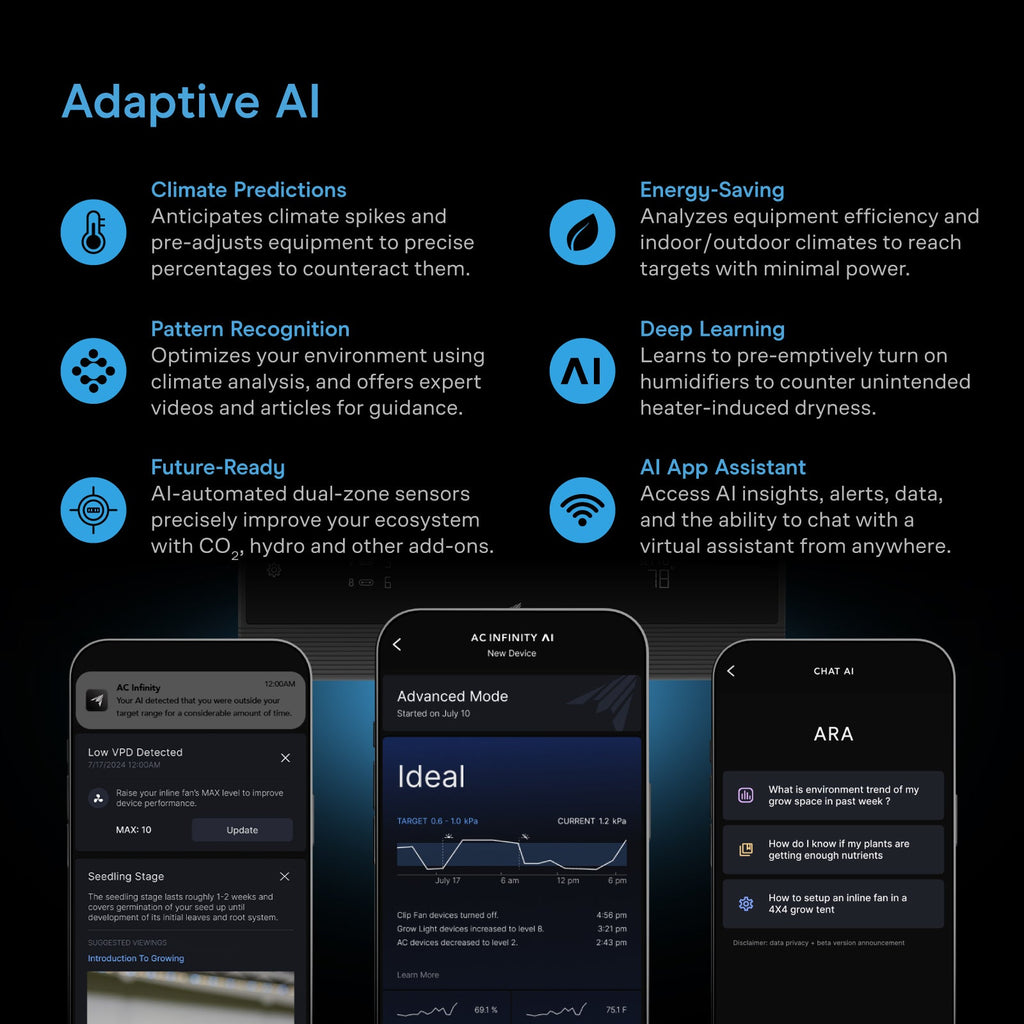

Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.

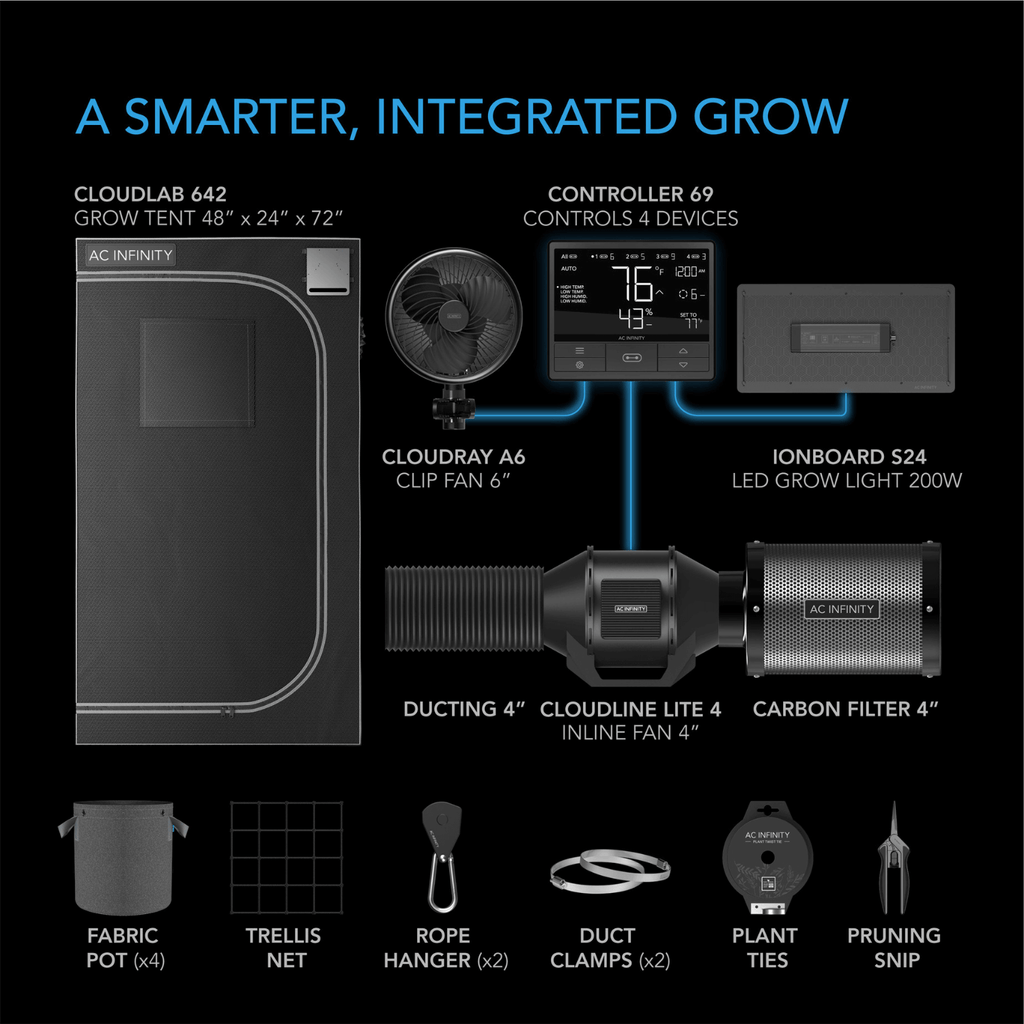

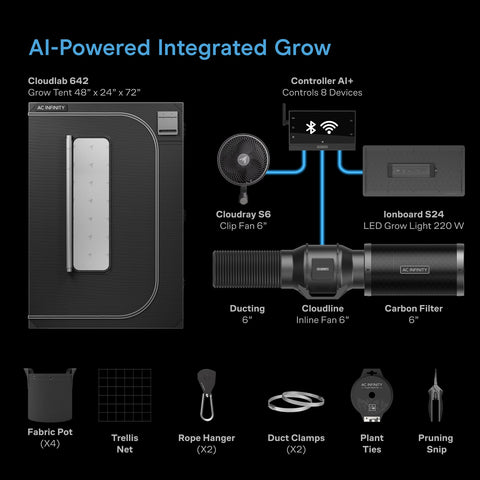

Next-gen EC inline fan 6”, oscillating clip fan 6”, and 200W full-spectrum grow light with LM301B LEDs.
Premium 2000D Mylar tent measuring 24”x48”x72”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

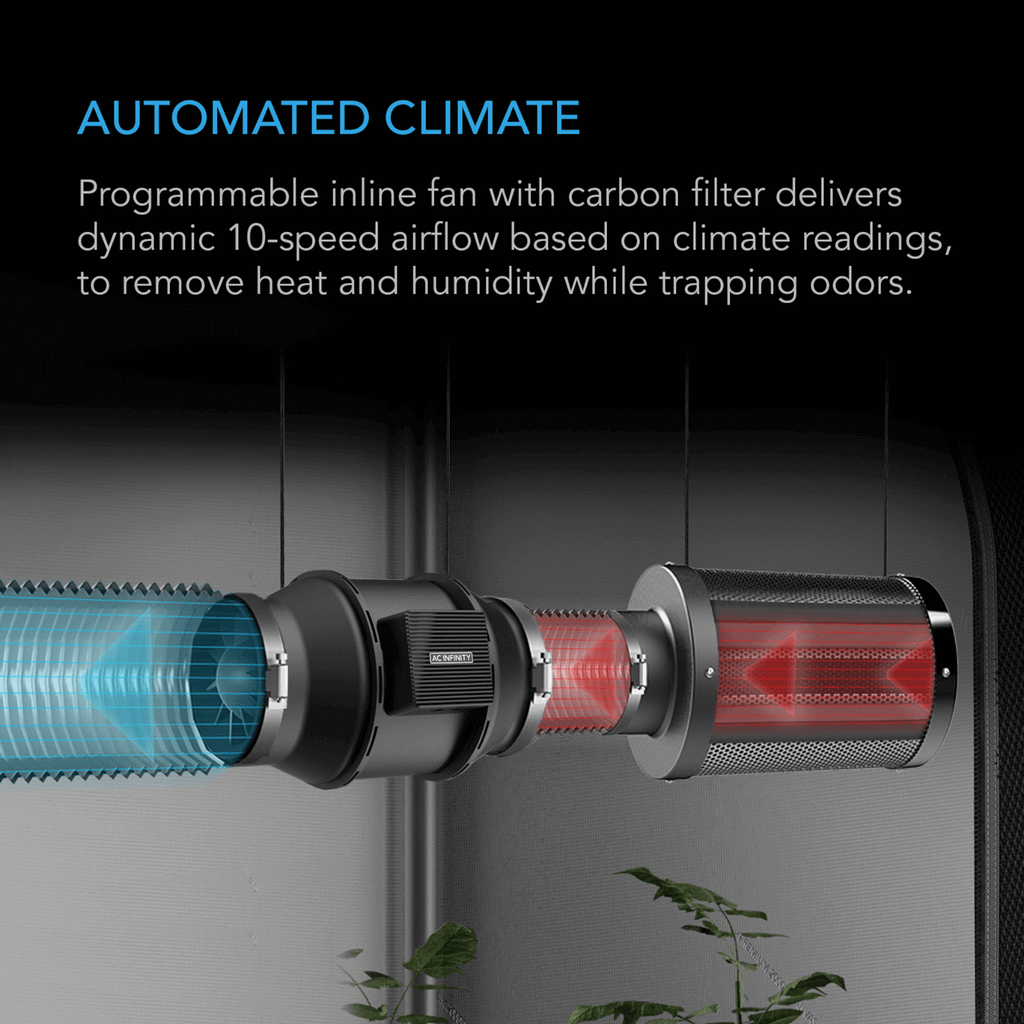

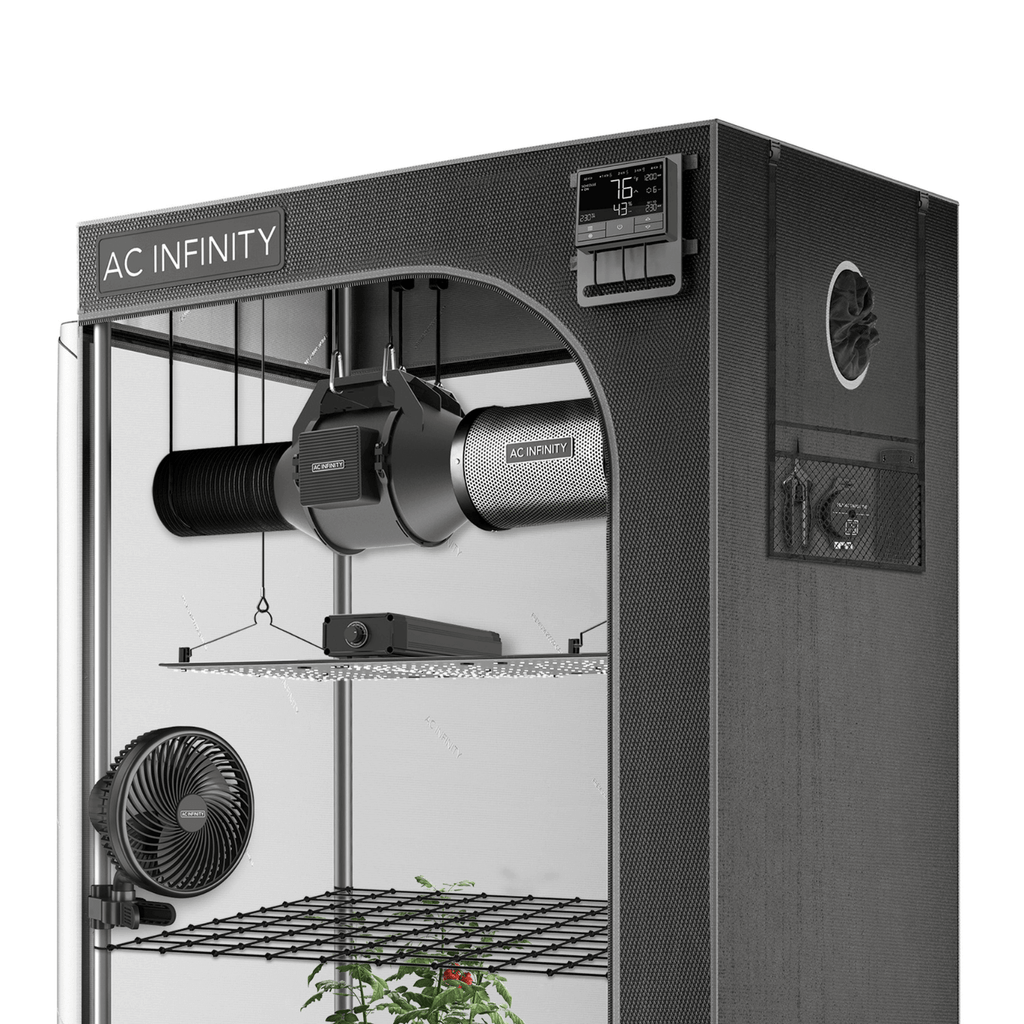

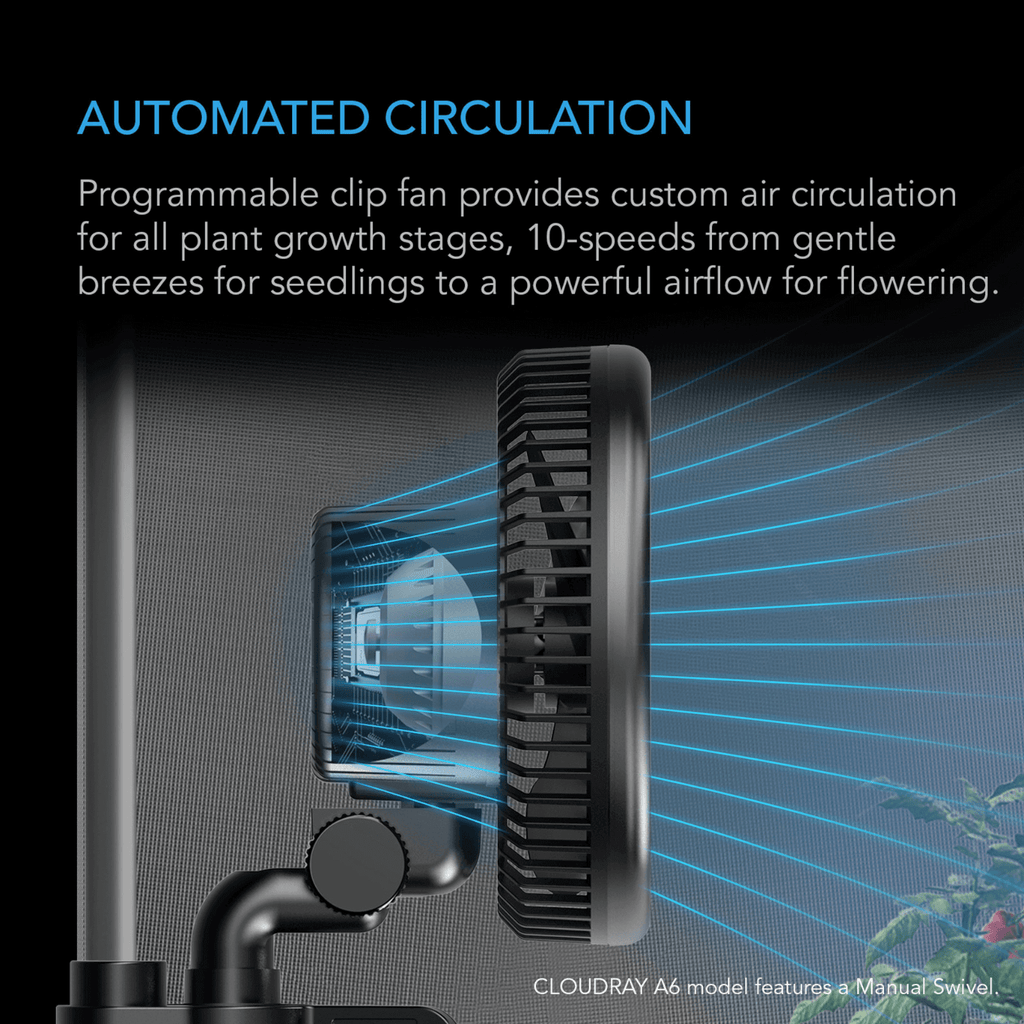

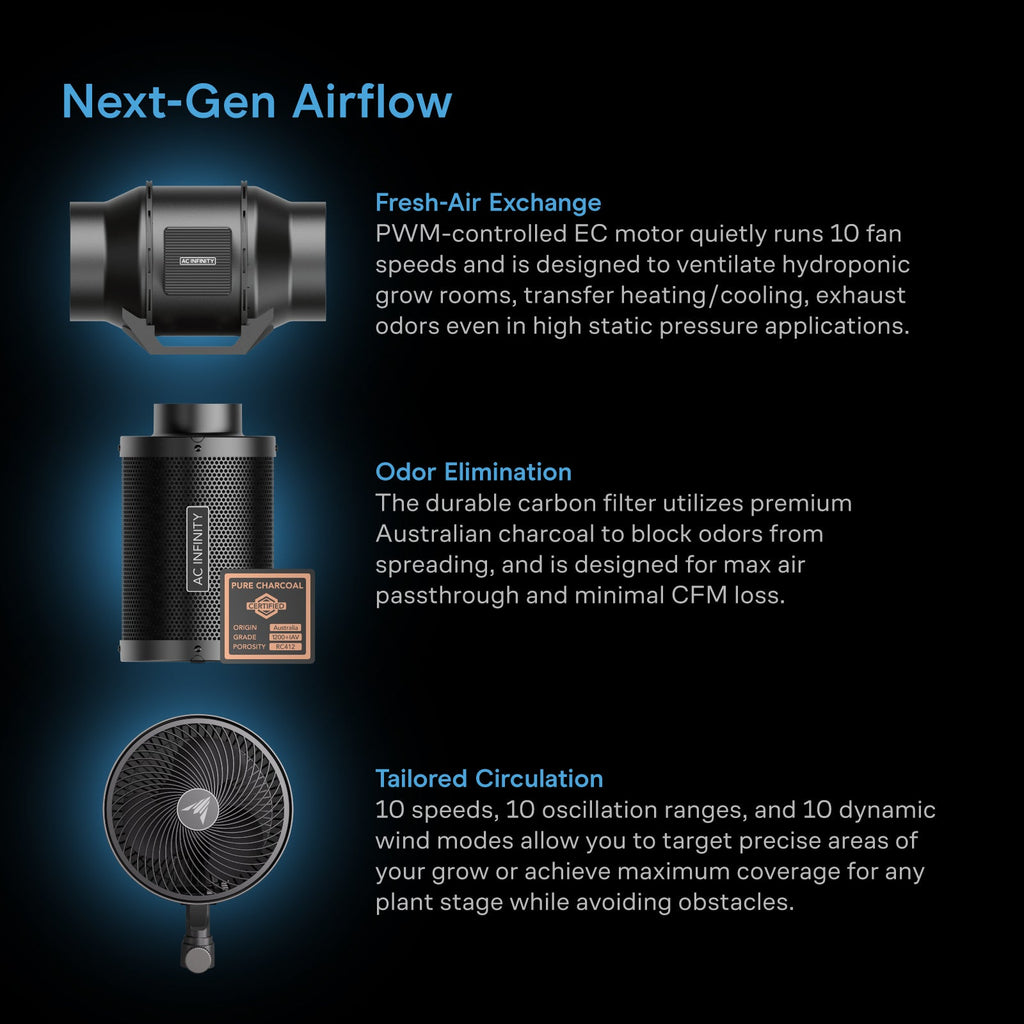

Product Description: An advanced grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants. Algorithmically selected and arranged LM301B diodes on the grow light board emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These devices are housed in a high-density Oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

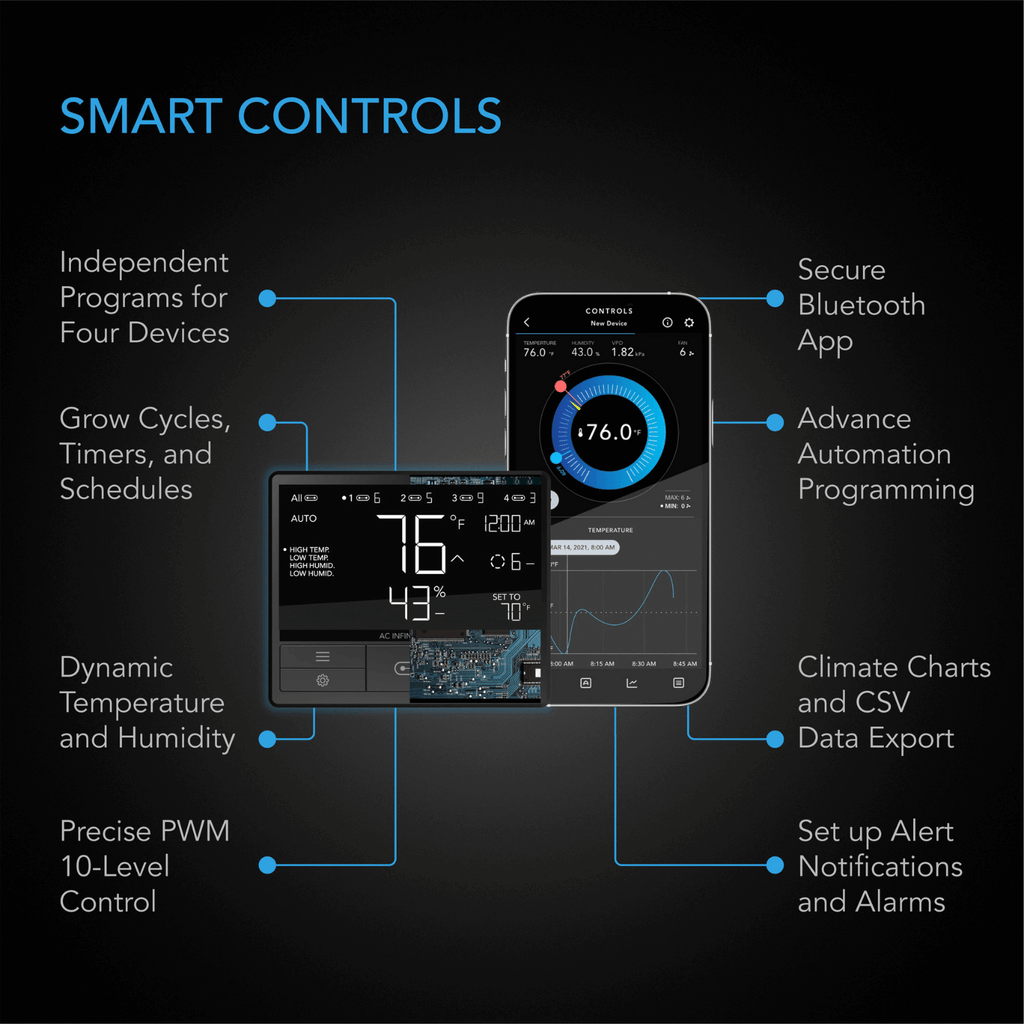

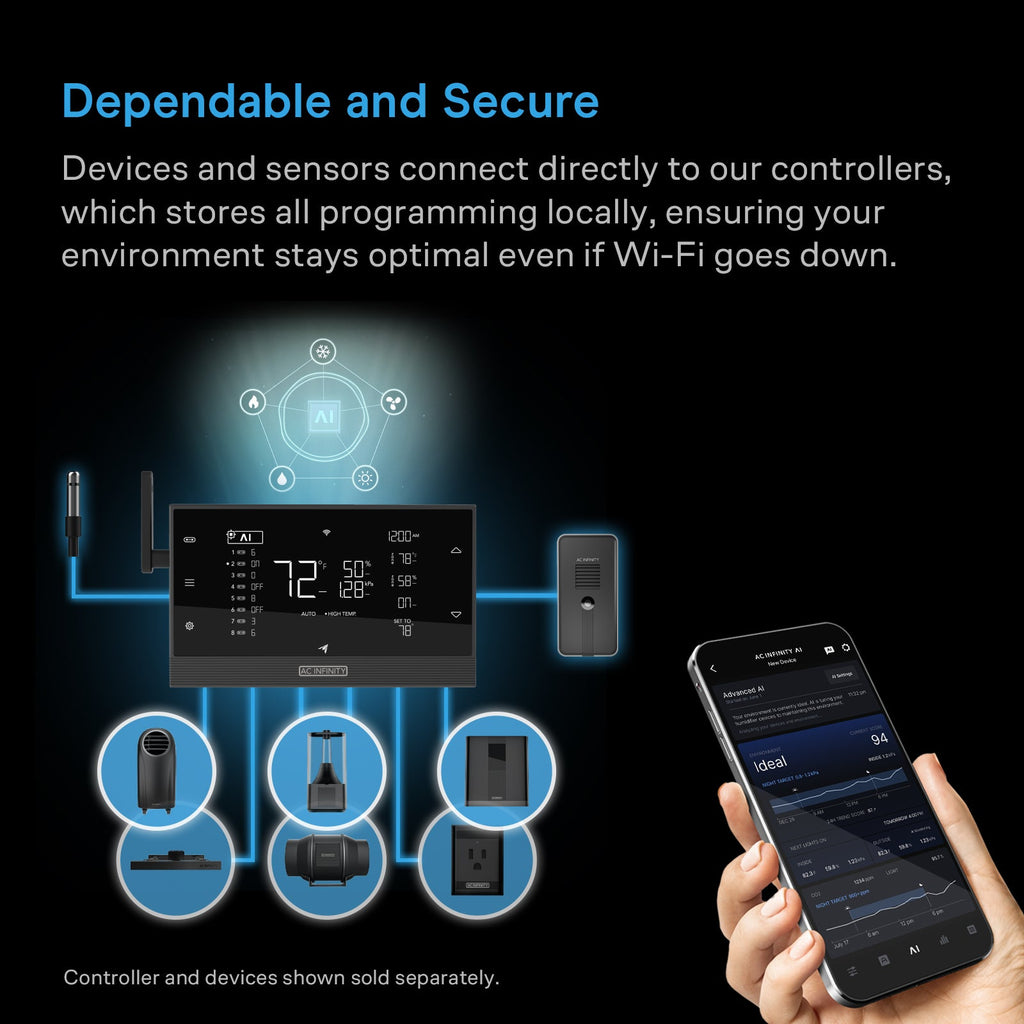

Intelligent Programming: Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advanced programs, alerts, notifications, and historical charts.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: Advance Grow System B24
Product Model: AC-PKB24
UPC Code: 819137022843
Product and Mounting Dimensions - Grow Tent
Tent Dimensions: 47.5" x 23.6" x 70.8" (120.8 x 60 x 180 cm)
Duct Opening Sizes: 4", 6", 8"
Viewing Window Size: 11.81" x 11.81" (30 x 30 cm)
Rear Intake Hole Size: 5.90" x 13.77" (15 x 35 cm)
Side Intake Hole Size: 5.90" x 11.02" (15 x 28 cm)
Mounting Strap Length: 6.49" (16.5 cm)

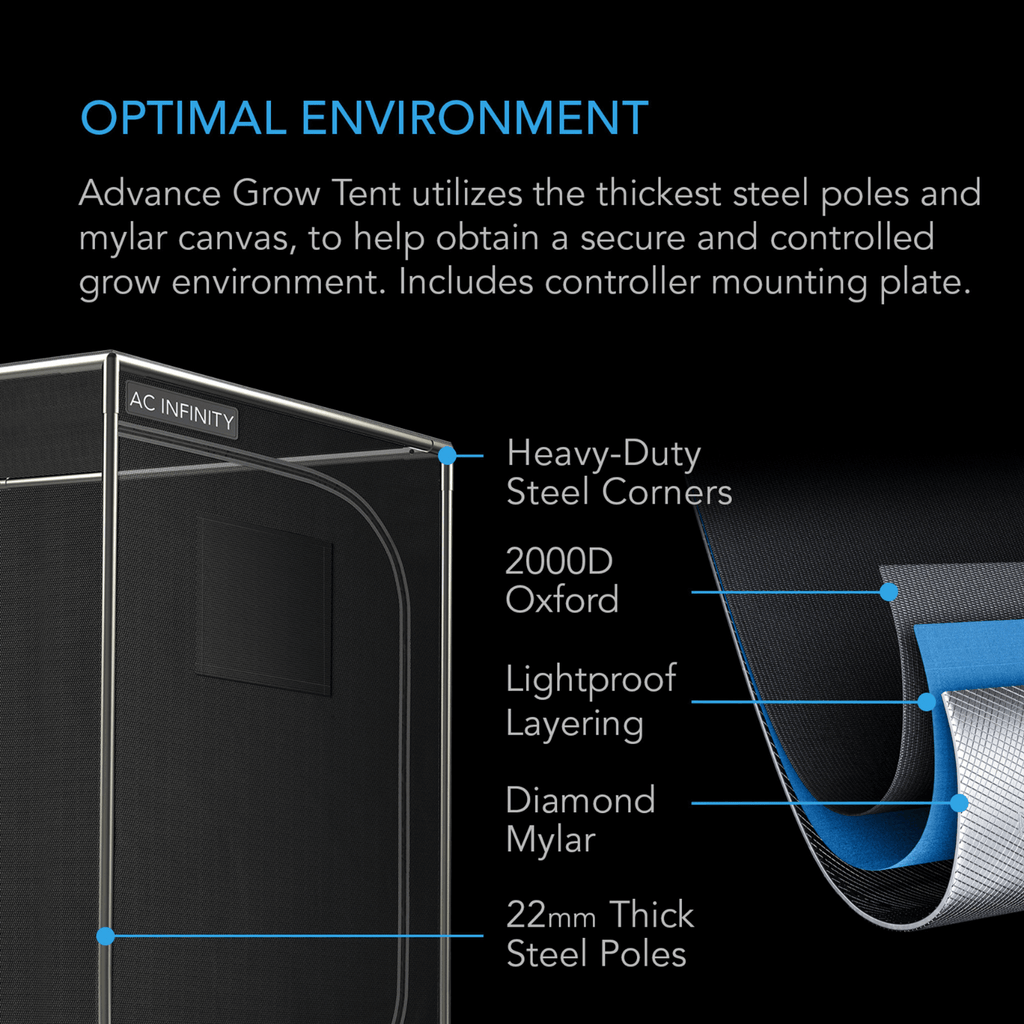

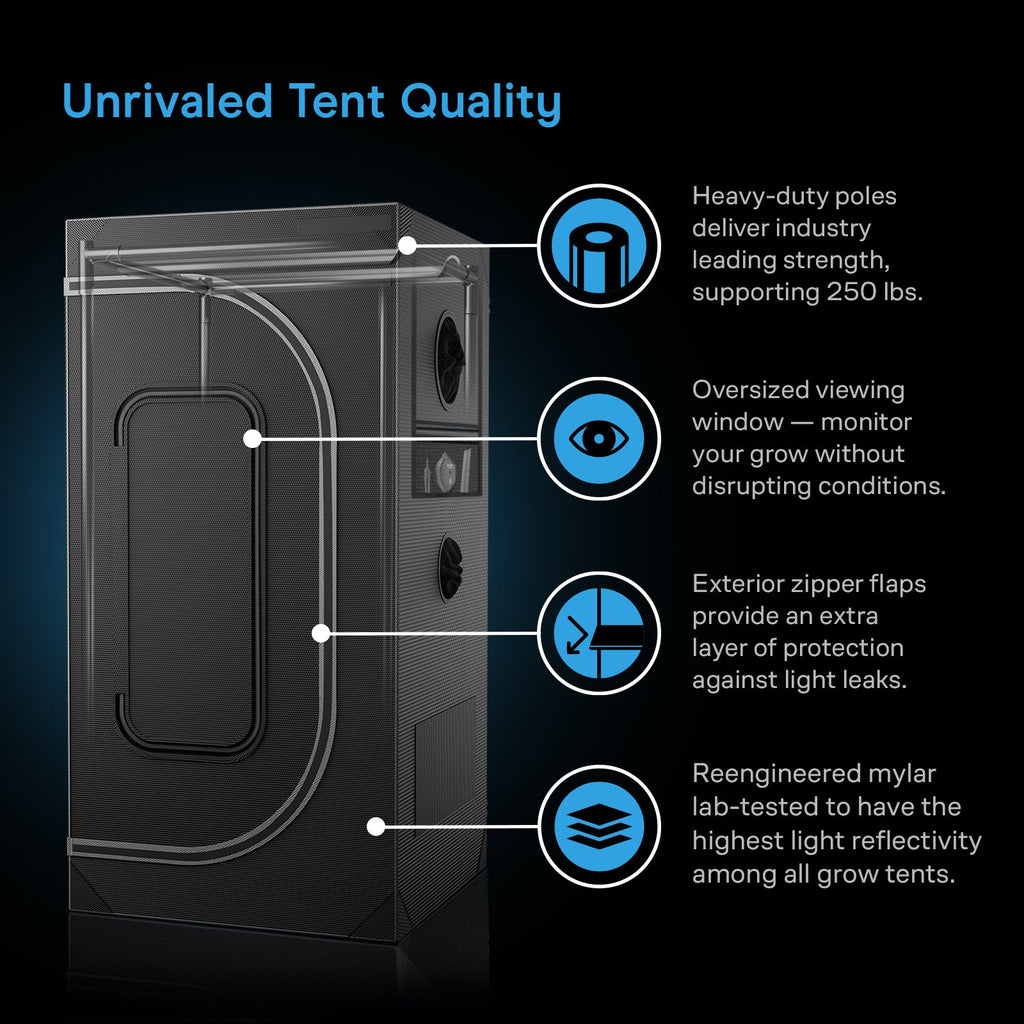

Product Performance and Technical Specs - Grow Tent
Outer Tent Material: Oxford
Inner Tent Material: Mylar
Pole Material: Steel
Pole Thickness: 22 mm
Beam Weight Capacity: 150 lbs
Plant Capacity: 2
Product and Mounting Dimensions - Inline Fan
Duct Size: 6"
Total Dimensions: 7.87" x 12.60" x 8.35" (21.2 x 32 x 20 cm)
Mounting Hole-To-Hole Distance: 3.15" x 2.36" (8 x 6 cm)
Screw Hole Size: Ø 0.236" (Ø 0.6 cm)
Cord Length to Controller: 72" (6')
Cord Length to Plug: 72" (6')
Performance and Technical Specs - Inline Fan
Total Airflow: 352 CFM
Total Noise: 34 dBA
Static Pressure: 394 Pa
Voltage: 100-240V AC
Frequency: 50/60Hz
Max Power Draw: 61 W
Average Power Usage: 35 W
Current: 0.85 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Ingress Protection: IP-44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS
Product and Mounting Dimensions - Clip Fan
Impeller Size: 6.5"
Total Dimensions: 8.74" x 10.47" (22.2 x 26.6 cm)
Cord Length to Plug: 96" (8')
Product Performance and Technical Specs - Clip Fan
Maximum Airflow: 315 CFM
Total Noise: 33 dBA
Static Pressure: 25 Pa
Operating Voltage: 100-240V AC
Power: 8 W
Current: 0.14 A
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Waterproof Rating: IP-44
Rotation Range: 90 Degrees
Tilt Angle: 55 Degrees
Oscillation: Automatic Oscillation
Fan Bearings: Dual Ball Bearing
Mounting Positions: Horizontal or Vertical
Life Expectancy: 67,000 Hours
Product and Mounting Dimensions - Controller
Total Dimensions: 5.19" x 2.91" x 1.06" (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance: 4.71" x 2.64" (12 x 6.7 cm)
Screw Hole Size: Ø 0.119" (Ø 0.3 cm)
Display Size: 3.5" x 1.4" (9 x 3.5 cm)
Sensor Probe Length: 144" (12')
Product Performance and Technical Specs - Controller
Maximum Devices Controlled: 4
Max Power Supported: 10 W
Programming Temperatures: 32 to 140 ºF
Operating Voltage: 9 to 18V
Power: 1 W
Current: 0.1 A
Power Input: 12V from Device
Operating Humidity: 35 to 85% RH
Product and Mounting Dimensions - LED Grow Light
Light Dimensions: 11.81" x 23.62" (30 x 60 cm)
LED Board Thickness: 0.43" (1.1 cm)
Driver Dimensions: 8.62" x 1.57" (21.9 x 4 cm)

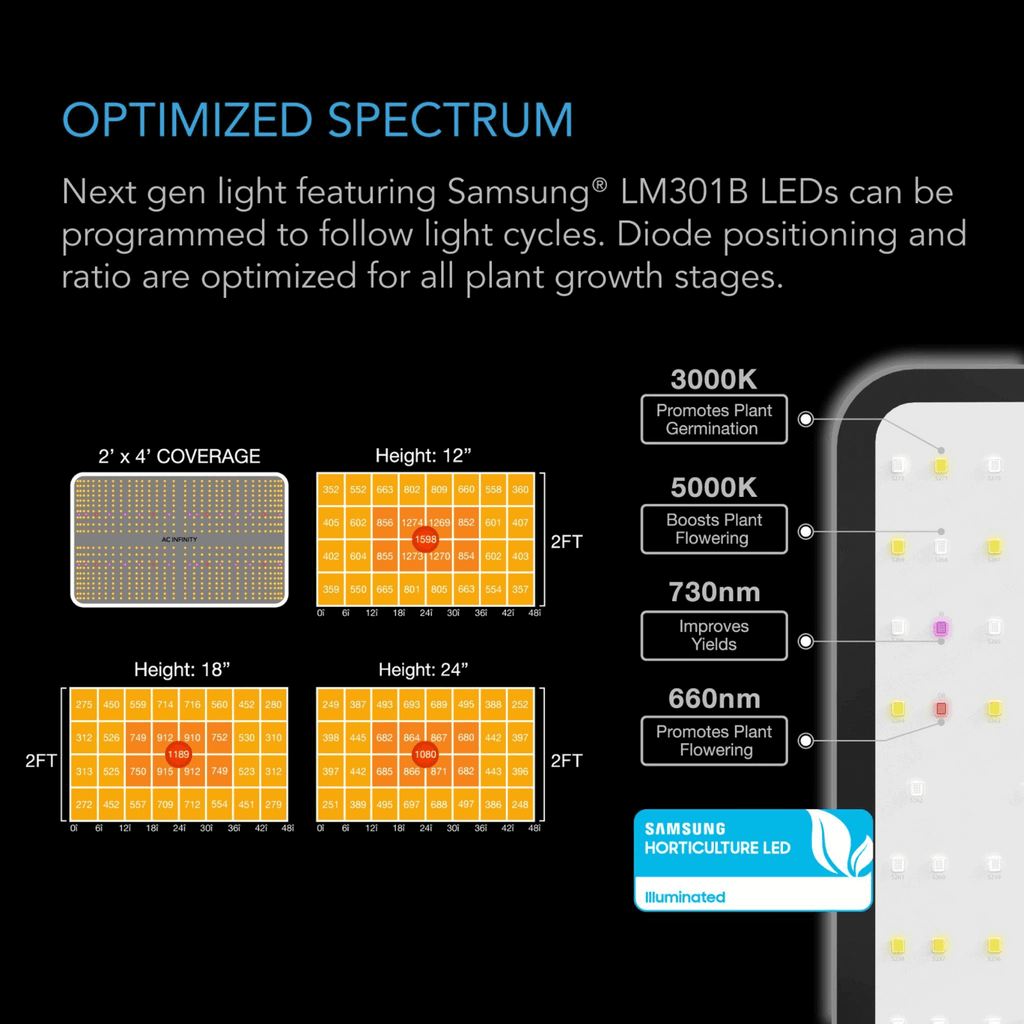

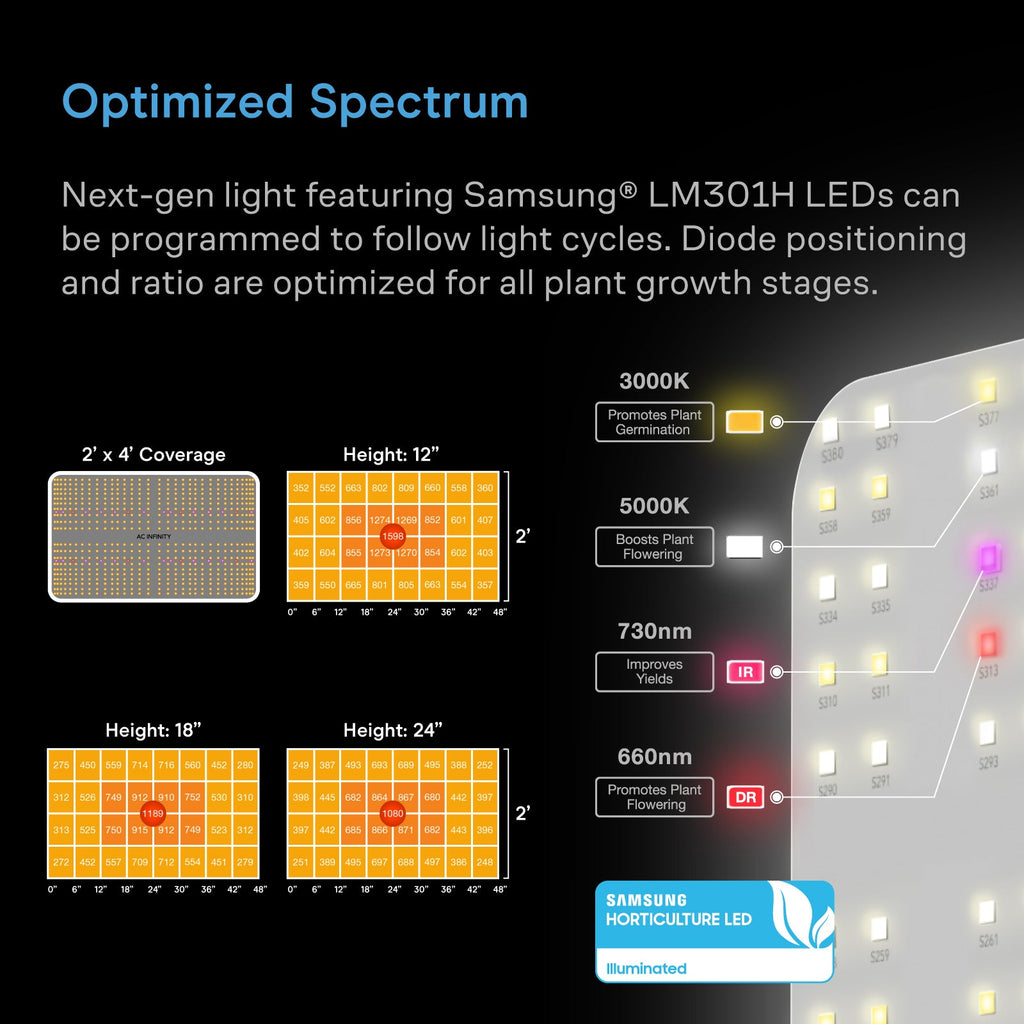

Product Performance and Technical Specs - LED Grow Light
Coverage: 2' x 4'
Diodes: Samsung LM301B
LED Chip Count: 544
LED Driver: AC Infinity Proprietary Driver, Model GTS-100
Efficiency: 2.65 umol/j
PPFD: 1598 PPFD
Spectrum: 660nm, 730nm, 3000K, 5000K
Wattage: 200 W
Voltage: 100-277V AC
Frequency: 50/60 Hz
Current: 2.0 A
Controller: Digital Dimming Timer
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Life Expectancy: 50,000 Hours
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size: 6"
Total Dimensions: 15.94" x 8.93" (40.5 x 22.7 cm)
Flange Length: 1.57" (4 cm)
Product Performance and Technical Specs - Carbon Filter
