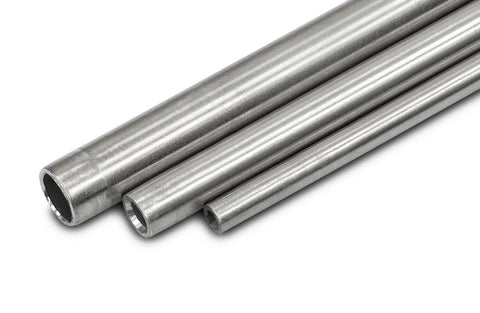

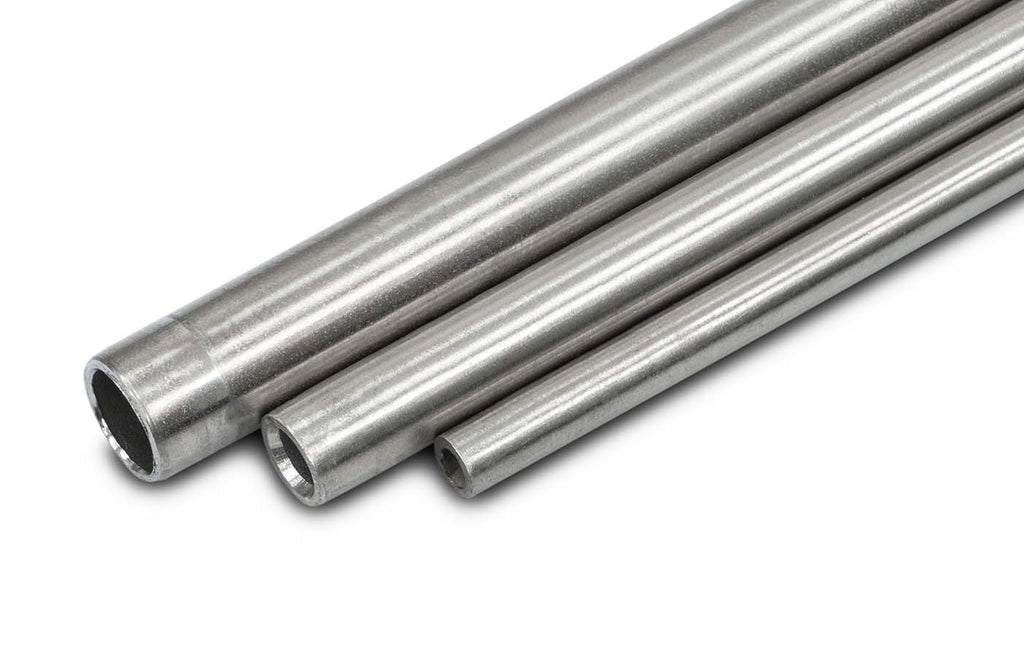

3/8" 316SS Hard Line Tubing 5FT
This 3/8" hard line tubing is manufactured from 316 stainless steel and engineered for precision compression fitting applications. Compliant with ASTM A-269 standards, the 5-foot section provides superior corrosion resistance and structural integrity for critical fluid transfer systems. Rated for a maximum working pressure of 3,300 PSIG with burst pressure ratings exceeding 4x the working pressure specification, this tubing is suitable for industrial hydraulic systems, pneumatic applications, and specialized process piping where material performance and reliability are essential.
| Specifications | ||
|---|---|---|
| Length | 5' | |
| Material | 316 Stainless Steel | |
| ASTM A-269 | ||
| Max Allowed Working Pressure (PSIG) | 1/4" x .035 | 5100 |
| 1/4" x .049 | 7500 | |
| 1/4" x .065 | 10300 | |
| 3/8" x .035 | 3300 | |
| 3/8" x .049 | 4800 | |
| 3/8" x .065 | 6550 | |
| Burst Pressure Rating | >4x Working Pressure | |
