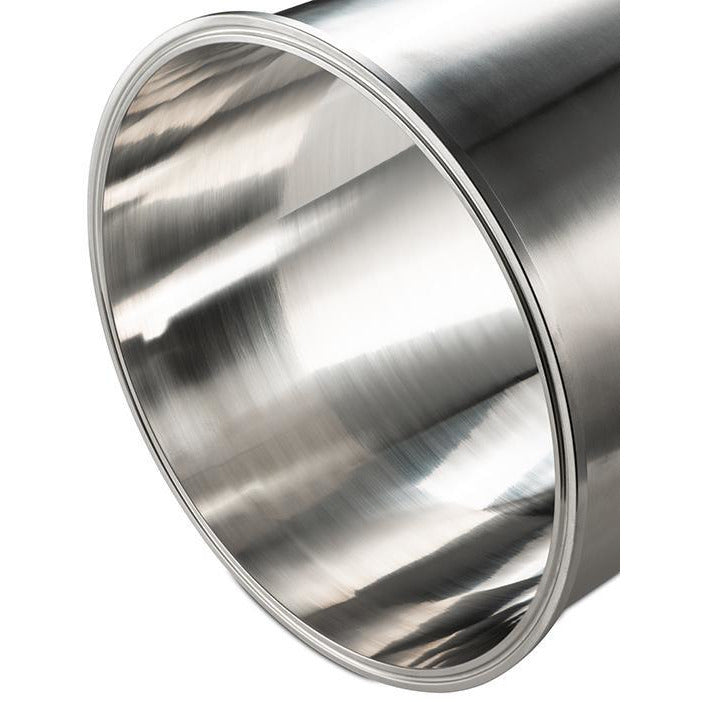

10" Tri-Clamp/ Tri Clover Spools
Sizes Available:
- 10" x 10" Tri-Clamp/ Tri Clover Spool
Specifications:
| Tri-Clamp Size | 10" |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Spool OD | 10" |
| Spool ID | 9.732" |
| Flange OD | 10.57" |
| Bead Center | 10.12" |
OD = Outer Dimension
ID = Inner Dimension
Disclaimer to Customer:
User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
Cylinder Volume
Select Material
How Much Will Fit in Cylinder
Formula
Volume x Weight of Water x Specific Gravity
Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =
Account for an 80% fill to avoid a hydraulic lock
How Much Material Will Fit in the Cylinder
| Packing Density (g) | 2.5 | 3 | 3.5 | 4.3 |
| Grams of Material | ||||
| Lbs. of Material |
Cans of Butane by Size
| mL | fl oz | lbs | # of Cans |
|---|---|---|---|
| 420 | 14.2 | ||
| 300 | 10.1 | ||
| 200 | 6.7 | ||
| 150 | 5.07 |
