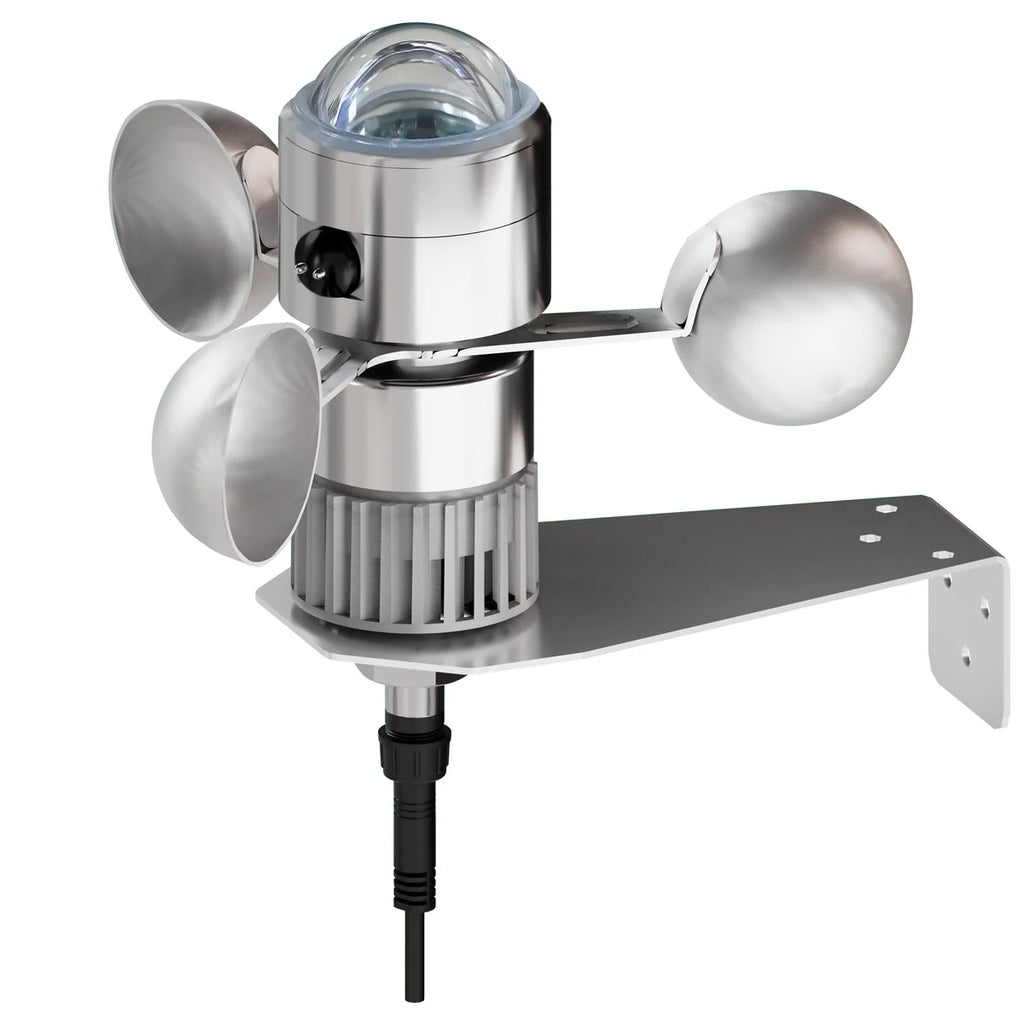

The TrolMaster MBS-WS is a 4-in-1 outdoor weather station sensor designed specifically for the GCS-1 Green-X greenhouse control system. It combines outdoor temperature, relative humidity, wind speed, and rainfall detection in a single unit and sends real-time weather data to the GCS-1 over an RS485 digital bus. This allows the greenhouse controller to respond automatically to changing outdoor conditions—for example, closing curtains, vents, or other motorized greenhouse systems when wind or rainfall exceeds configured thresholds.
SKU: MBS-WS
• Compatible Controller: TrolMaster GCS-1 Green-X
• Sensor Type: 4-in-1 outdoor weather station
• Measurements: Temperature, Humidity, Wind Speed and Rainfall
• Communication Protocol: RS485 digital
• Input Voltage: 12V DC / 0.1A
• Power Consumption: <1W
• IP Rating: IP54
• Wind Speed Range: 0–15 m/s (0–33.55 mph / 0–54 km/h)
• Wind Sensor: 3-cup anemometer
• Temperature Range: -20°C to 50°C (-4°F to 122°F)
• Temperature Accuracy: ±3°F
• Humidity Range: 0–90% RH
• Humidity Accuracy: ±3% RH
• Maximum Units per GCS-1: 1 MBS-WS per control set
• Connection Cable: 12-ft RJ12 to 4-pin IP65 cable
• Included Accessories: Horizontal leveling tool and mounting bracket
• Weather Automation: Can trigger compatible greenhouse curtain/vent motor controllers based on wind and rainfall conditions
• Compatible Motor Controllers: DMC-1 24V DC roll-up motor controller and AMC-1 single/three-phase curtain motor controller
• Mobile Monitoring: Weather data can be viewed through the TrolMaster app via the GCS-1
• Hydro-X Compatibility: No — specifically designed for GCS-1 Green-X
• Installation: Outdoor mounting with leveling adjustment
Key Advantage: The MBS-WS gives the GCS-1 direct, real-time outdoor weather awareness, allowing a greenhouse to react automatically to wind and rain instead of relying on manual monitoring or external weather forecasts. This is especially useful for automated curtains, vents, roll-up sides, and other weather-sensitive greenhouse systems.
