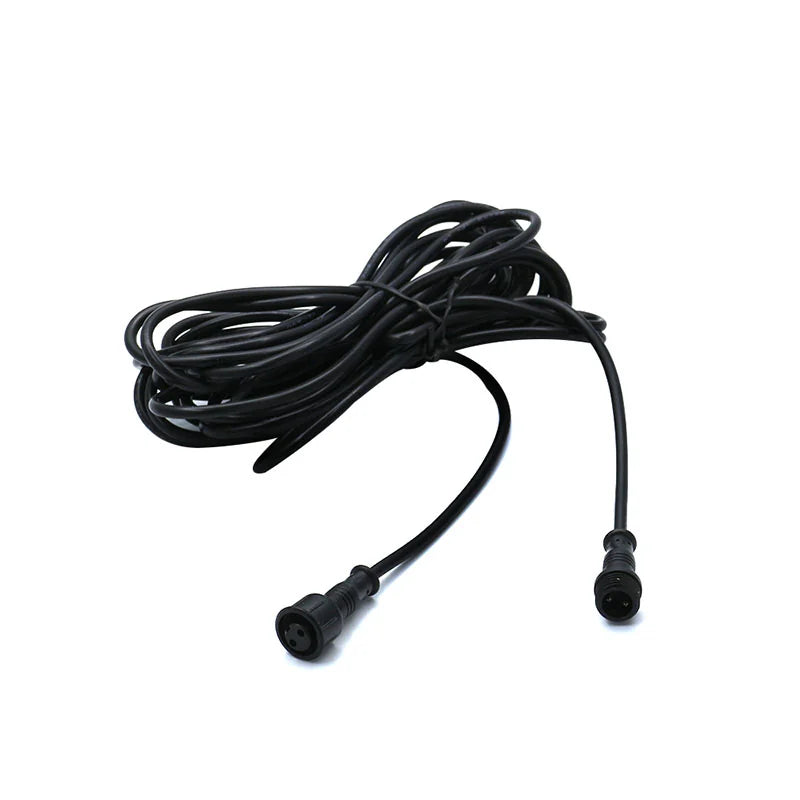

The TrolMaster TSS-2 is a purpose-built 16-foot extension cable for the WD-1 Water Detector in the Aqua-X Irrigation Control System. It extends the reach between the WD-1 module and a Touch Spot sensor, or can bridge two Touch Spot sensor segments in a daisy-chain arrangement. Its matched male/female proprietary connectors provide a plug-and-play installation with no adapters, splicing, configuration, or firmware changes.
• SKU: TSS-2
• Brand: TrolMaster
• Compatible System: Aqua-X Irrigation Control System
• Compatible Module: WD-1 Water Detector
• Cable Length: 16 ft (≈5 m)
• Connector Type: Proprietary Touch Spot male/female connectors
• Cable Configuration: Male connector on one end; female connector on the other
• Primary Function: Extend Touch Spot sensor placement beyond the standard WD-1 cable reach
• Secondary Function: Bridge two Touch Spot sensor segments in a chained configuration
• Daisy-Chaining: Multiple TSS-2 cables can be connected in sequence for additional reach
• Installation: Plug-and-play; no tools, splicing, configuration, or firmware changes required
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: <90% RH, non-condensing
• Package Contents: 1 × 16 ft extension cable
• Package Dimensions: 156 × 83 × 30 mm
• Splitter Function: None — unlike the TSS-1, the TSS-2 does not create a second detection branch
• Hydro-X Compatibility: Not intended for Hydro-X sensor ports; designed specifically for the Aqua-X WD-1 system
Key Advantage: The TSS-2 provides a straightforward way to extend WD-1 Touch Spot detection coverage by 16 feet, making it useful when sensors need to be positioned farther from the controller or across longer benches, drainage areas, and reservoir zones.
