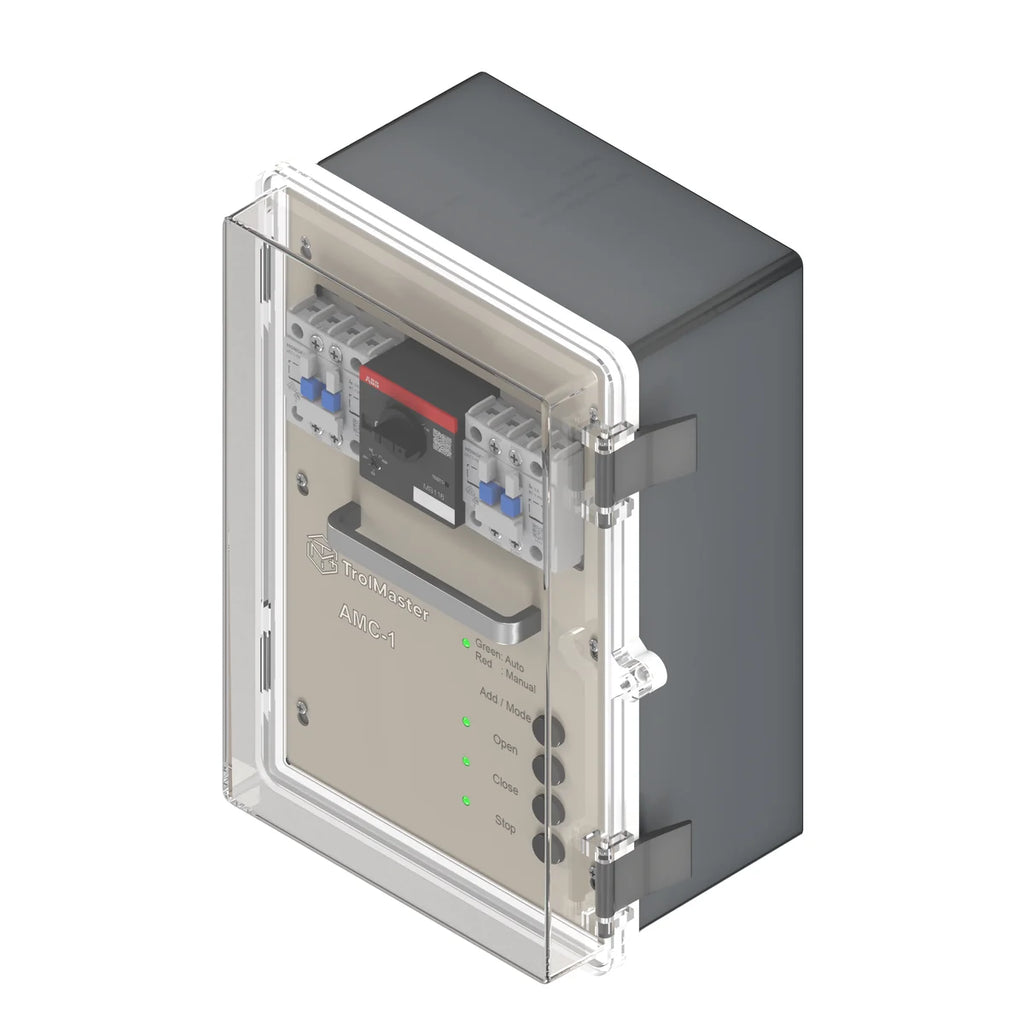

The TrolMaster AMC-1 is a commercial-grade curtain motor driver designed for greenhouse shade and blackout curtain systems. It supports both single-phase 100–277V and three-phase 207–480V motor configurations and integrates directly with the TrolMaster Green-X GCS-1 system. It provides forward/reverse curtain operation, configurable timeout shutoff, and overcurrent protection, while allowing curtains to be controlled manually or automatically based on schedules and environmental conditions.
• SKU: AMC-1
• Compatible Controller: TrolMaster GCS-1 Green-X
• Input Voltage — Single Phase: 100–277V AC, 50/60Hz
• Input Voltage — Three Phase: 207–480V AC, 50/60Hz
• Maximum Output Current: 4A
• Communication: RS-485 via 4-pin waterproof connector
• Motor Operation: Forward / reverse
• Control: Manual override and automated scheduling
• Environmental Triggers: Supports automated curtain control through GCS-1 environmental settings
• Weather Integration: Can work with MBS-WS Weather Station for outdoor temperature, wind, and light-based curtain automation
• Motor Protection: Overcurrent protection
• Timeout Protection: Configurable timeout shutoff to prevent motor overrun
• Waterproof Rating: IP54
• Operating Temperature: 32–104°F (0–40°C)
• Operating Humidity: ≤90% RH
• Included Cable: 12-ft RJ12 to 4-pin IP65 connector cable
• Standalone Operation: No — GCS-1 is required for configuration and automated control
• Typical Applications: Greenhouse shade curtains, blackout curtains, light-deprivation systems, and automated curtain zones
Key Advantage: The AMC-1 provides flexible single- and three-phase curtain motor control in one module, while integrating curtain movement with Green-X environmental automation. When paired with the GCS-1 and weather station, curtains can respond automatically to outdoor conditions such as temperature, wind, and light intensity.
