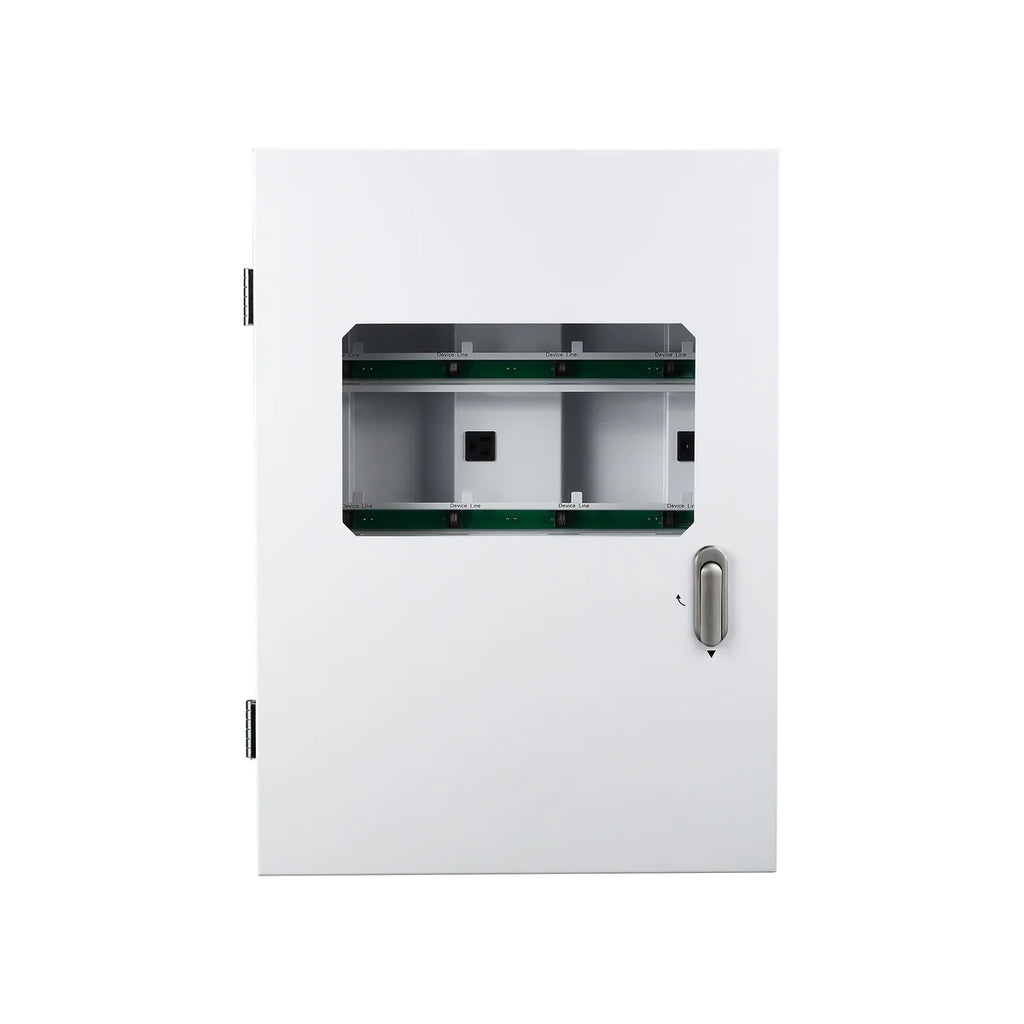

The TrolMaster SCC-1 is a 25-inch modular electrical enclosure and wire-management cabinet designed specifically for the Hydro-X Pro (HCS-2) and Aqua-X Pro (NFS-2) control systems. It consolidates the main controller, device stations, power supplies, modules, and RJ12 cable connections into one professionally mounted enclosure. Its IP56 / NEMA 4X-rated construction provides protection against dust and strong water jets, making it suitable for demanding commercial grow-room environments.
• Model / SKU: SCC-1
• Compatible Controllers: TrolMaster Hydro-X Pro (HCS-2) and Aqua-X Pro (NFS-2)
• Dimensions: 25" L × 18" W × 6.26" H (63.5 × 45.7 × 15.9 cm)
• Enclosure Rating: IP56 / NEMA 4X
• Input Voltage: 120V
• Maximum Amperage: 15A
• Operating Temperature: 32–104°F (0–40°C)
• Internal Power Outlets: 4 + 1 + 6 configuration
• RJ12 Splitter Boards: 5 internal groups
• Splitter Capacity: 10-port, 6-port, 17-port, two detachable 4-port bars, and 6-port board
• Controller Opening: Pre-cut opening for the main TrolMaster controller
• Cable Management: Internal RJ12 routing and organized power connections
• Included: Controller rubber gasket, long RJ12 cables, short RJ12 cables, power cables, screw set, and manual
• Mounting: Wall-mounted commercial control enclosure
• Application: Centralized Hydro-X Pro and Aqua-X Pro control-system installations
Key Advantage: The SCC-1 transforms multiple TrolMaster controllers, modules, power supplies, and cable connections into a single organized and protected control panel. Its IP56/NEMA 4X enclosure, five internal splitter groups, and dedicated power-outlet configuration help protect electronics from moisture and dust while making installation, troubleshooting, and maintenance considerably cleaner and more organized.
