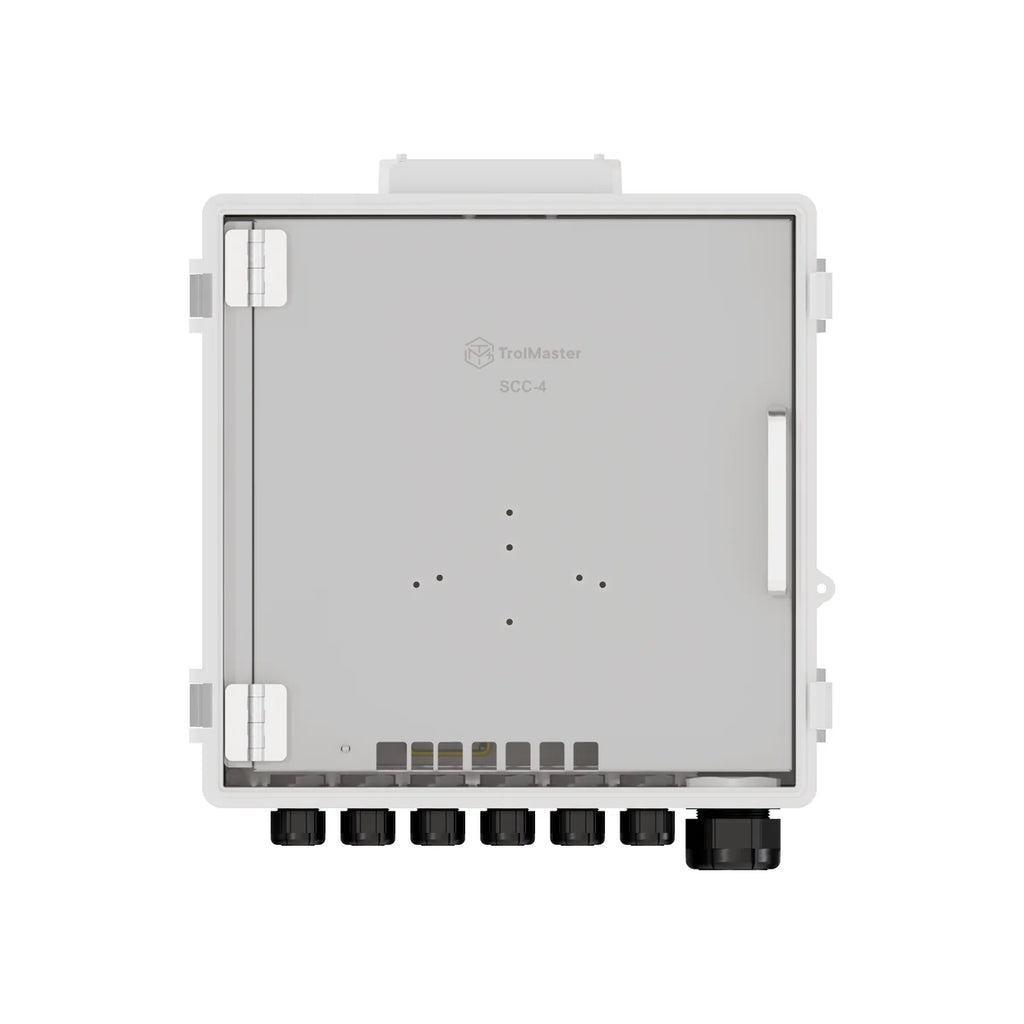

The TrolMaster SCC-4 Mini Controller Cabinet is a compact, all-in-one wall-mount enclosure designed for smaller TrolMaster environmental control systems, including Green-X (GCS-1), Hydro-X (HCS-1), Aqua-X (NFS-1), Carbon-X (CDA-1), and Tent-X (TCS-1). It consolidates the main controller and up to six DSR-1 Relay Device Stations into a sealed, organized installation, with built-in RJ12 splitter boards, intelligent fan-speed control, and detachable mounting back plates for easier installation and servicing.
• SKU: SCC-4
• Dimensions: 15.55" × 15.55" × 6.69"
• Enclosure Rating: IP56 / NEMA 4X equivalent
• Input Voltage: 100–277V AC, 50/60Hz
• Maximum Output Current: 60A
• Maximum DSR-1 Stations: Up to 6 × DSR-1 25A Relay Device Stations
• Compatible Controllers: GCS-1, HCS-1, NFS-1, CDA-1, TCS-1
• Thermal Management: Intelligent variable-speed fan
• Operating Temperature: 32–104°F (0–40°C)
• Mounting: Wall-mount enclosure
• Cabling: Built-in RJ12 splitter boards
• Included: Cabinet, GCS-1 power cable, HCS-1/NFS-1/CDA-1/TCS-1 power cable, 3× mounting back plates, 3× 1.6-ft RJ12 cables, installation manual
• DSR-1 Status: Relay stations sold separately
Key Advantage: The SCC-4 provides a clean, protected, inspection-ready control hub for smaller TrolMaster installations, keeping the controller, relay stations, splitter boards, and wiring organized inside a single IP56-rated enclosure while supporting flexible 100–277V facility power.
