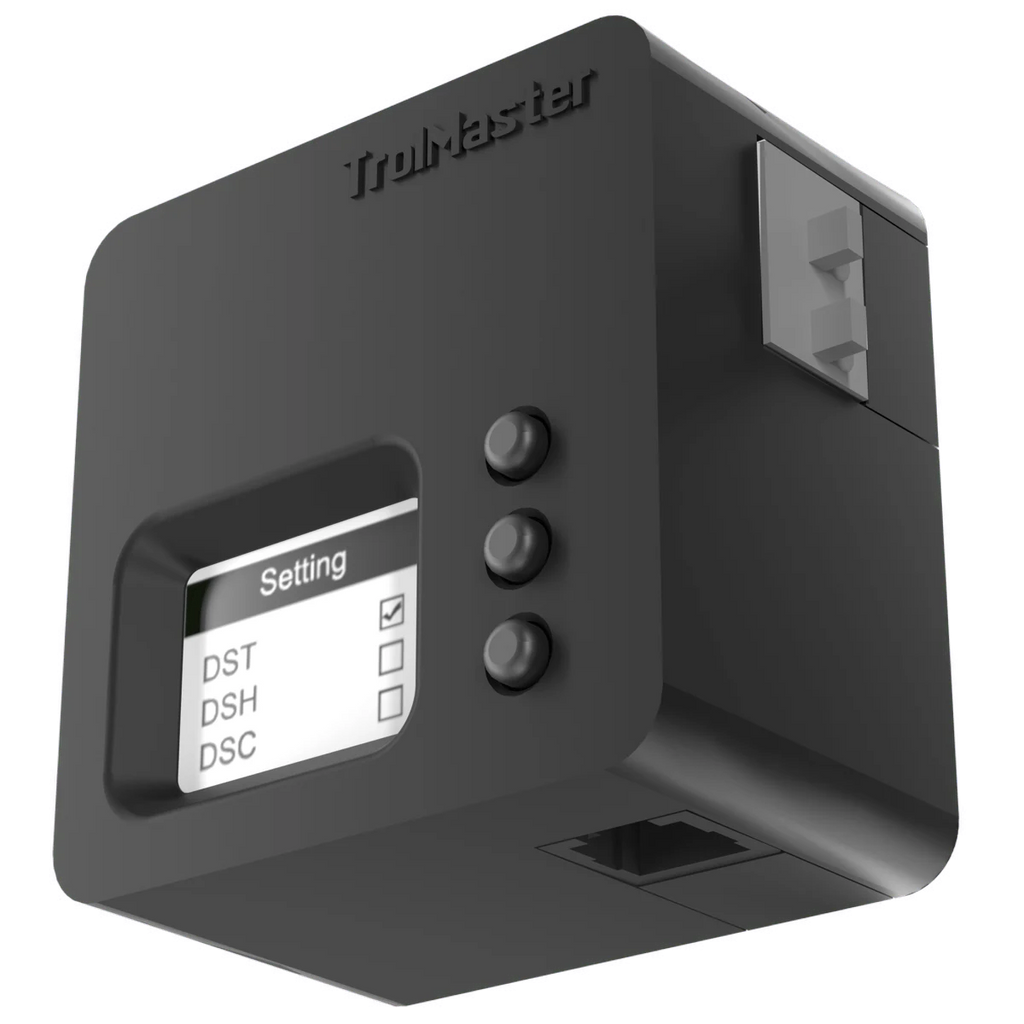

The TrolMaster DSV-1 is a configurable low-voltage output module that brings 12–24V AC/DC devices into the TrolMaster Hydro-X, Hydro-X Pro, and Aqua-X control systems. It can control solenoids, irrigation valves, motorized valves, CO₂ valves, audio/visual alarms, and other low-voltage devices according to temperature, humidity, CO₂, or timer conditions programmed in the controller. The output voltage is selectable at the module, providing flexibility for different low-voltage equipment.
• SKU: DSV-1
• Input Voltage: 100–240VAC, 50/60Hz
• Output Voltage: Selectable 12VDC, 24VDC, 12VAC, or 24VAC
• Maximum DC Output: 0.5A at 12V or 24V DC
• Maximum AC Output: 4.8VA at 12V or 24V AC
• Control Modes: Temperature, Humidity, CO₂, or Timer
• Compatible Controllers: Hydro-X (HCS-1), Hydro-X Pro (HCS-2), Aqua-X
• Connection: RJ12 daisy-chain bus
• Addressing: Independently addressable
• Manual Override: Yes — press and hold the top button to toggle output ON/OFF
• Display: Built-in LCD showing module/output status
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH
• Typical Applications: Irrigation solenoids, motorized valves, CO₂ valves, low-voltage actuators, nutrient-dosing triggers, and audio/visual alarm panels
• Multiple Modules: Multiple DSV-1 units can operate on the same controller bus with independent addresses and control modes
• In the Box: 1× DSV-1 module, 1× 16-ft RJ12 cable, 1× 4-ft RJ12 cable, 1× RJ12 T-splitter
Key Advantage: The DSV-1 fills the gap between TrolMaster automation and low-voltage equipment that cannot be controlled through a standard line-voltage relay. Its selectable AC/DC output and four configurable control modes allow the same module to operate different types of 12–24V devices under environmental or scheduled automation.
