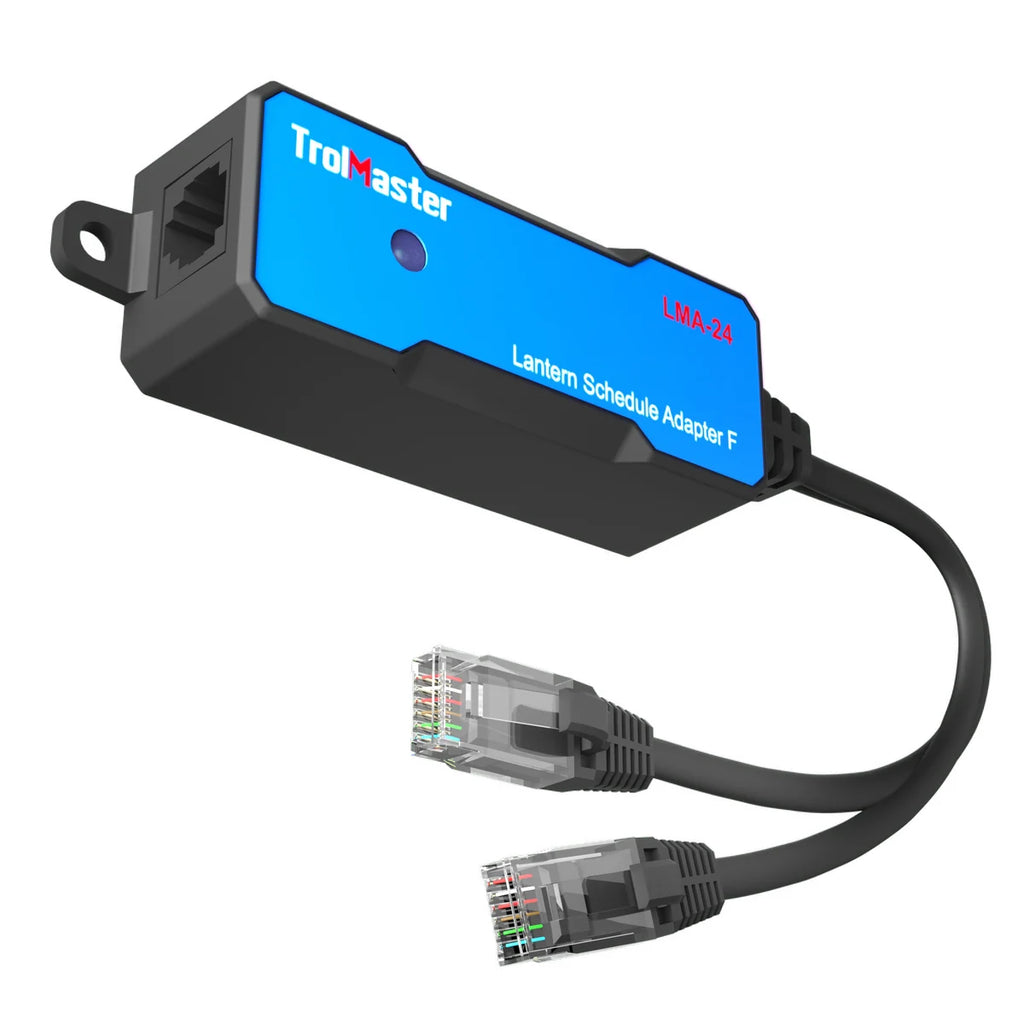

The TrolMaster LMA-24 is a dedicated lantern-photoperiod lighting adapter for 0–10V-controlled HID and LED fixtures, using both lighting channels of a TrolMaster Hydro-X controller to automatically run a split vegetative lighting schedule. The programmed cycle is 12 hours ON → 5.5 hours OFF → 1 hour ON → 5.5 hours OFF, continuously repeating. This provides an automated night-interruption (“lantern”) schedule without requiring separate timers.
• SKU: LMA-24
• Brand: TrolMaster
• Function: Lantern Schedule Lighting Control
• Control Protocol: 0–10V
• Output Voltage: 0–11.5V
• Maximum Output Current: 0.2A
• Input Supply: 240VAC, 50/60Hz
• Compatible Controllers: Hydro-X HCS-1, Hydro-X Pro HCS-2 and Hydro-X Plus HCS-3
• Lighting Channels Used: Both Channel 1 and Channel 2
• Lantern Schedule: 12 hours ON → 5.5 hours OFF → 1 hour ON → 5.5 hours OFF
• Compatible Lighting: Fixtures accepting standard 0–10V control signals
• Compatible HID Examples: Gavita, Nanolux, Luxx, Growers Choice, Illuminar and PL ballasts
• Compatible LED Examples: Fluence, Next Light and Spectrum King
• Dimming: 0–10V output can support dimming where the connected fixture/driver supports it
• Connection: RJ12 to Hydro-X lighting control ports
• Multiple Adapter Expansion: SPH-1 can provide additional RJ12 connections and signal boosting
• Working Temperature: 0–50°C
• Working Humidity: ≤90% RH
• Package Dimensions: 160 × 86 × 86 mm
• Gross Packaged Weight: Approx. 60 g (2.12 oz)
• Independent Lighting Zones: Both Hydro-X lighting channels are occupied by the LMA-24
• Proprietary Protocol Fixtures: Not directly compatible; fixtures using Phantom, Dimlux, SunSystem or other proprietary protocols require the appropriate LMA adapter
Key Advantage: The LMA-24 automates the 12/5.5/1/5.5 lantern photoperiod using standard 0–10V lighting control, making it broadly compatible with commercial HID and LED fixtures while eliminating the need for separate external timers.
