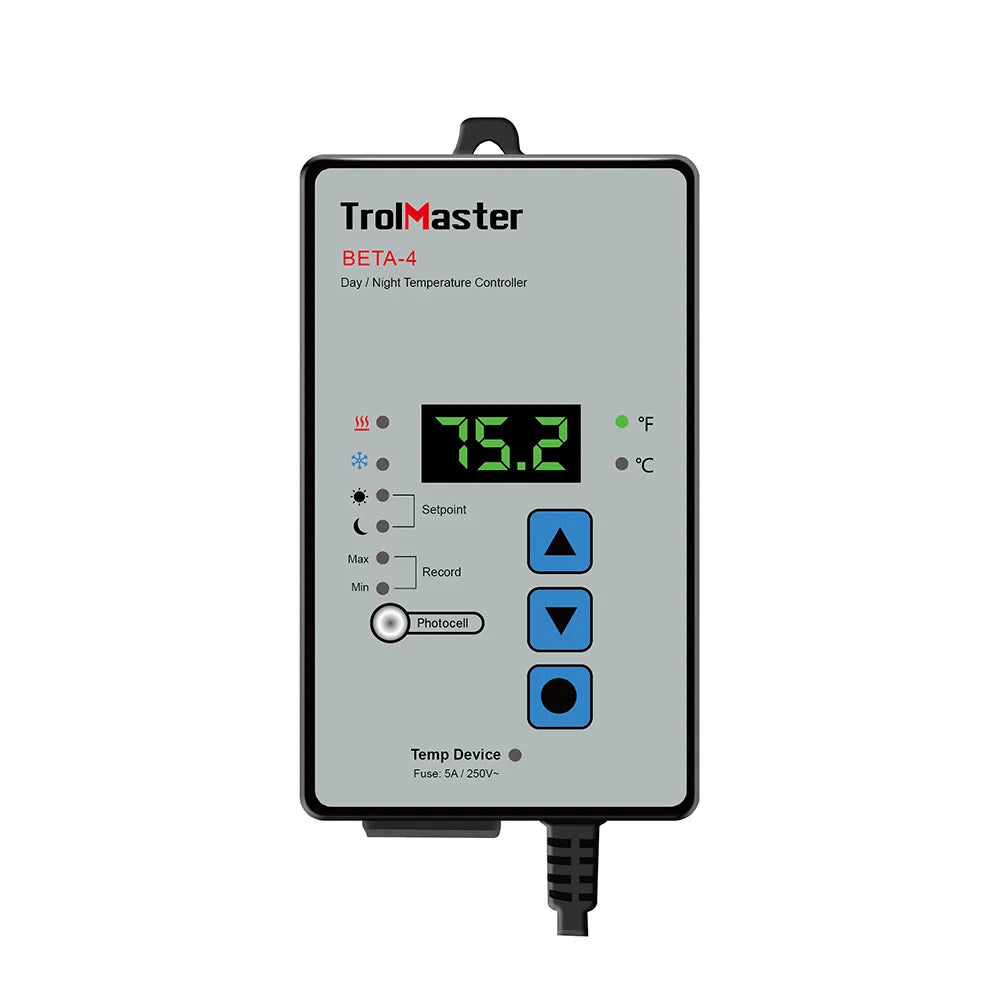

The TrolMaster BETA-4 is a standalone, single-outlet temperature controller designed for cultivation environments requiring separate day and night temperature setpoints. Its built-in photocell automatically detects the light/dark cycle, while the included 16-ft temperature sensor monitors conditions at canopy level. The controller can operate either a heating or cooling device up to 10A, with a 5°F deadband to help prevent short-cycling.
• SKU: BETA-4
• Input Voltage: 120V AC
• Output Switch: Triac
• Maximum Load: 10A
• Fuse Rating: 6A / 250V AC
• Temperature Control Range: 40–100°F
• Temperature Deadband: 5°F
• Temperature Sensor: Included, 16-ft cable
• Day/Night Control: Separate day and night temperature setpoints
• Photocell: Built-in automatic light/dark detection
• Control Mode: Heating or cooling
• Outlet: Single switched outlet
• Compatible Devices: Heaters, portable A/C units, exhaust fans, and other 120V temperature-control equipment
• High-Inrush Load: Devices such as portable A/C units and some heaters should be derated to 7.5A or lower
• Display: LED display showing current temperature, active mode, device status, and recorded maximum/minimum temperature
• Controls: 3-button interface — Home, Up, Down
• Power Cord Length: 1.8 m
• Package Dimensions: 275 × 87 × 94 mm
• Gross Weight: 0.56 kg
• System Integration: Standalone; does not integrate with Hydro-X, Aqua-X, or other networked TrolMaster systems
• Warranty: 3 years
Key Advantage: The BETA-4 provides simple, photocell-aware day/night temperature automation for one 120V device without requiring a full environmental-control system. Its 16-ft sensor can be positioned at canopy height, while the 5°F deadband helps reduce rapid ON/OFF cycling.
