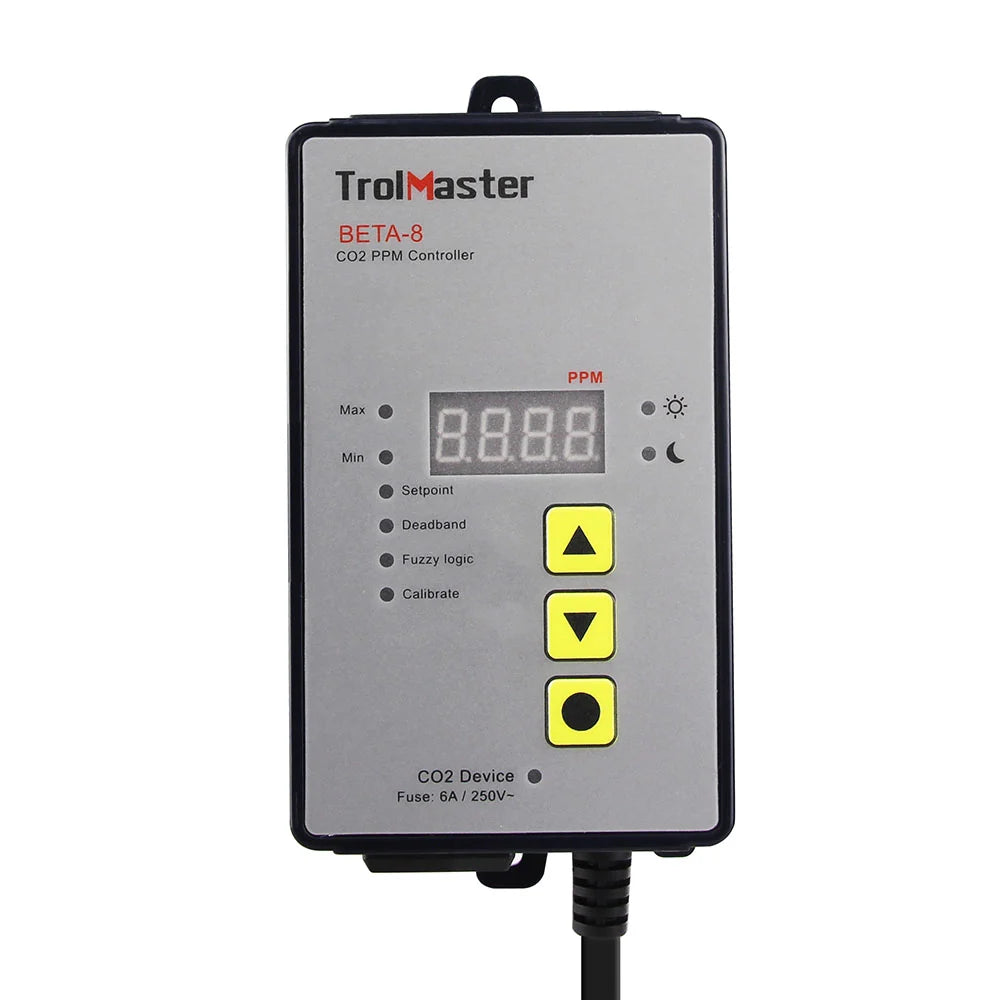

The TrolMaster Beta-8 is a standalone digital CO₂ controller designed to maintain a precise CO₂ PPM setpoint in a sealed or semi-sealed grow room. It works with both CO₂ regulators and CO₂ generators, using a remote NDIR sensor positioned at canopy level to continuously measure CO₂ concentration. The controller uses fuzzy-logic output control to reduce overshoot, an adjustable deadband to fine-tune the target range, and a built-in photocell to automatically suppress CO₂ injection during dark periods.
• SKU: Beta-8
• Input Voltage: 120V AC
• Output Relay Rating: 10A
• Fuse Rating: 6A / 250V~
• CO₂ Control Range: 400–2,000 PPM
• CO₂ Deadband: 20–200 PPM, adjustable
• CO₂ Accuracy: ±50 PPM
• Sensor Technology: NDIR (Non-Dispersive Infrared)
• Remote Sensor Cable: 16 ft (approx. 4.9 m)
• AC Power Cord: 1.8 m
• CO₂ Equipment Compatibility: CO₂ regulators and CO₂ generators
• Control Method: Closed-loop PPM control with relay output
• Fuzzy-Logic Control: Proportional output modulation as CO₂ approaches the setpoint
• Day/Night Control: Built-in photocell automatically suppresses CO₂ injection during dark periods
• PPM Monitoring: Front-panel LED display with minimum/maximum PPM recall
• Sensor Calibration: Field-recalibratable NDIR sensor
• Connectivity: Standalone operation; no network connection or subscription required
• Mounting: Wall or equipment-rack mounting
• Unit Dimensions: 275 × 87 × 94 mm
• Gross Weight: 0.56 kg
• Zone Capacity: One independent CO₂ output/zone per Beta-8
• Multi-Zone Setup: Separate Beta-8 required for each independent CO₂ zone
Key Advantage: The Beta-8 provides a dedicated closed-loop CO₂ control system without requiring a full environmental controller. Its NDIR sensing, adjustable deadband, fuzzy-logic output, and automatic day/night detection are particularly useful for maintaining a stable CO₂ concentration while reducing overshoot and unnecessary CO₂ consumption.
