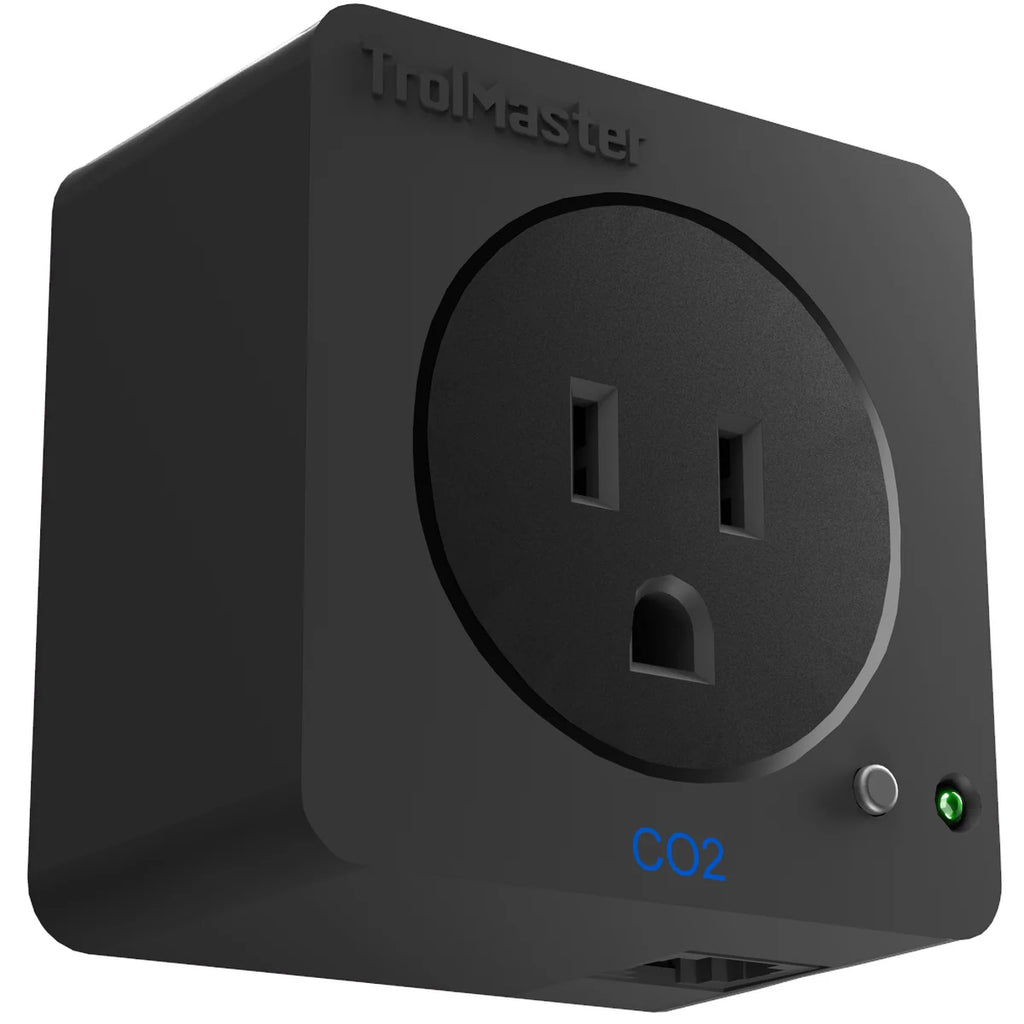

The TrolMaster DSC-1 is a plug-and-play CO₂ relay module designed for the Hydro-X environmental control platform. It provides automated, setpoint-driven switching of CO₂ supplementation or exhaust equipment, including CO₂ generators, tank solenoids, and CO₂-triggered exhaust controls. When paired with a compatible CO₂ sensor such as the MBS-S8, the Hydro-X controller uses live PPM readings to activate or deactivate the connected device according to the programmed CO₂ setpoint.
• SKU: DSC-1
• Function: CO₂ control relay / device station
• Input Voltage: 100–240 VAC, 50/60 Hz
• Output Voltage: 100–240 VAC, 50/60 Hz
• Maximum Output Current: 10A
• Compatible Controllers: Hydro-X HCS-1, Hydro-X Pro HCS-2, Hydro-X Plus HCS-3, Carbon-X
• Compatible CO₂ Equipment: CO₂ generators, tank solenoids, CO₂ controllers with switched outlets, CO₂-triggered exhaust controls
• Communication: RJ12 device bus
• Control: Automatic setpoint-based ON/OFF control
• Manual Override: Yes, via onboard button
• LED Status: Fast-blinking green = unaddressed/disconnected; slow-blinking green = connected/OFF; solid green = connected/ON; blinking red = overload
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH, non-condensing
• Package Dimensions: 85 × 80 × 90 mm
• Gross Weight: 0.34 kg
• Included Cable Set: 1× 16-ft RJ12 cable, 1× 4-ft RJ12 cable, 1× RJ12 T-splitter
• CO₂ Sensor Included: No — compatible CO₂ sensor required for PPM-based closed-loop control
• Relay Configuration: Single relay / single controlled outlet
• Maximum per HCS-1 Zone: Up to 2 CO₂ device stations
Key Advantage: The DSC-1 connects CO₂ equipment directly to the TrolMaster control bus, allowing the controller to switch the equipment based on actual CO₂ PPM readings rather than a simple timer. Because it is a single-relay module, separate DSC-1 units are required when independently controlling both CO₂ injection and CO₂ exhaust equipment.
