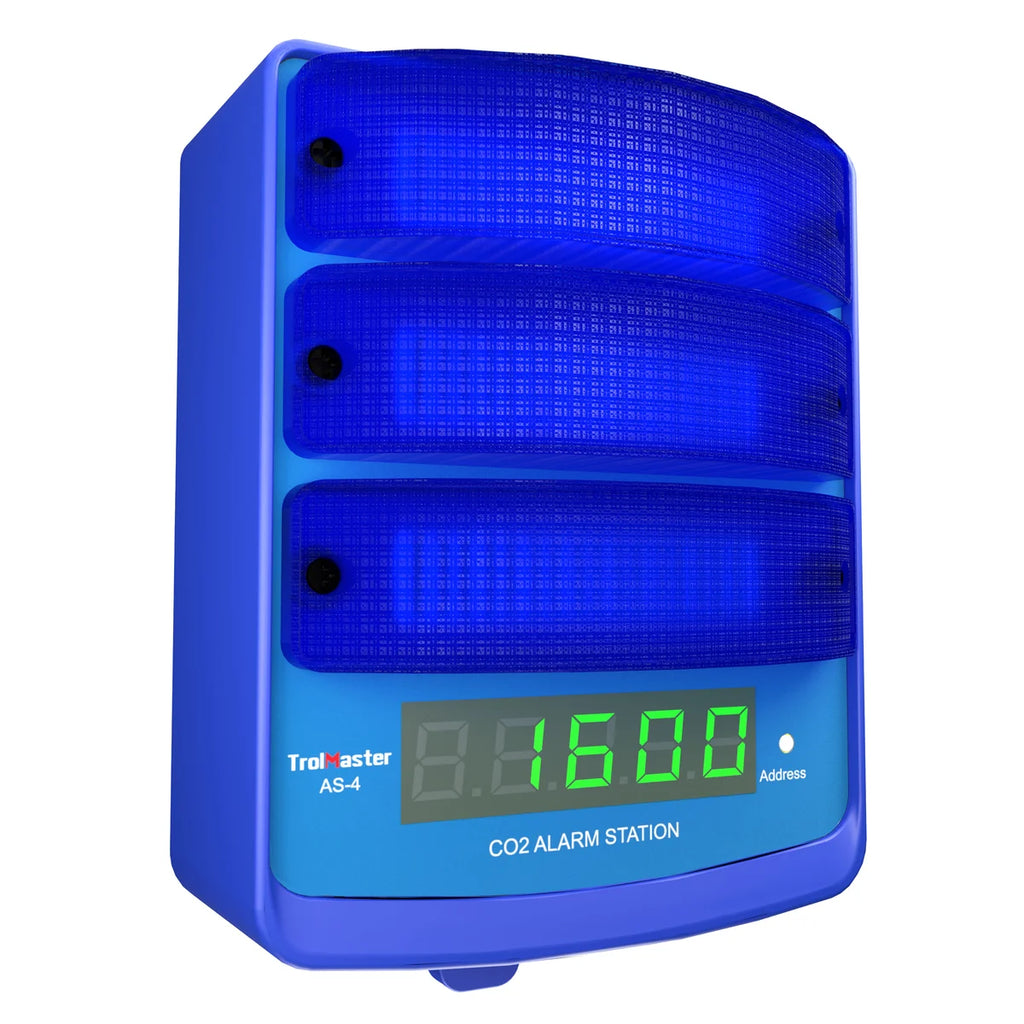

The TrolMaster AS-4 is an audible-visual CO₂ alarm station for the Carbon-X CDA-1 safety and monitoring system. It combines a blue LED strobe, audible alarm, and continuously displayed live CO₂ ppm reading so personnel outside a monitored grow room can immediately assess atmospheric CO₂ conditions. The station connects through RJ12 and is designed to be mounted outside the monitored space, such as on corridor walls, above entry doors, or in adjacent hallways.
• SKU: AS-4
• Brand: TrolMaster
• System Compatibility: TrolMaster Carbon-X CDA-1
• Alarm Type: Audible + blue LED visual strobe
• Display: LCD digital CO₂ ppm readout
• Sensor Channel Linkage: AL-1, AL-2, or both for dual-channel redundancy
• Connection: RJ12
• Power Requirement: SPH-1 Splitter Hub required for power over RJ12
• Included Cable: 16-ft RJ12 cable
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH, non-condensing
• Package Dimensions: 130 × 187 × 88 mm
• CO₂ Reading: Live ppm displayed continuously
• Alarm Activation: Blue LED flashes and audible alarm activates when the CDA-1 configured threshold is exceeded
• Mounting Location: Outside the monitored room, corridor, hallway, or above entry doors
• Standalone Operation: No — requires Carbon-X CDA-1
• Warranty: 3-year manufacturer warranty
Key Advantage: The AS-4 provides three layers of CO₂ awareness in one station—continuous ppm display, blue visual strobe, and audible alarm. It can also be linked to both Carbon-X sensor channels for redundancy, while the blue indicator distinguishes it from the orange AS-3 version for installations where a specific alarm color is required.
