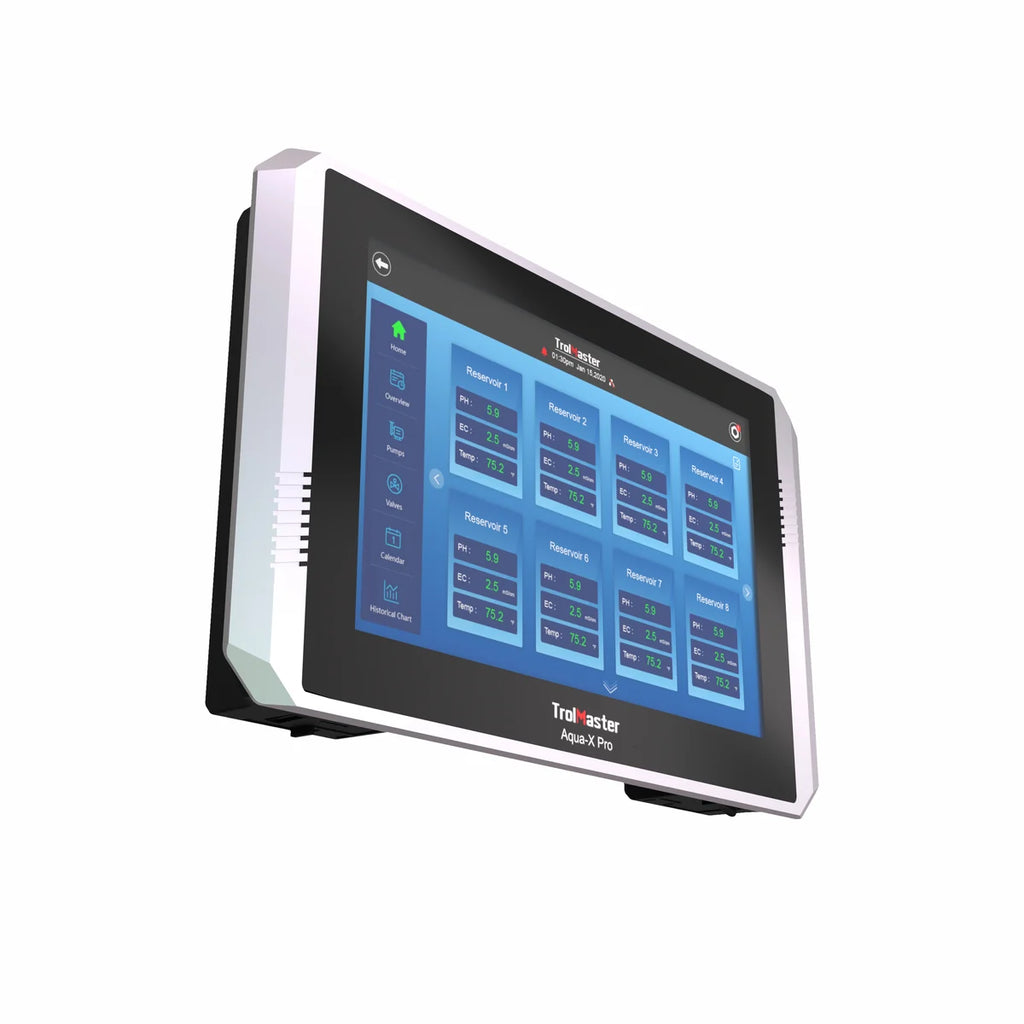

The TrolMaster Aqua-X Pro NFS-2 is a professional-grade, fully modular irrigation and fertigation controller designed for multi-zone commercial cultivation. It can manage up to 300 solenoid valves and 300 pumps from a single controller when paired with the appropriate OA6-series control modules. The included AMP-3 sensor board provides live pH, EC, and water-temperature monitoring, while the 10-inch touchscreen, Ethernet connectivity, TM+ smartphone app, and web portal provide centralized and remote control. The system can also support feed-by-volume and substrate-moisture-based irrigation when paired with optional sensors.
• Model / SKU: NFS-2
• Product Type: Aqua-X Pro Irrigation & Fertigation Controller
• Input Voltage: 100–240VAC, 50/60Hz
• Display: 10" LED touchscreen
• Maximum Solenoid Valves: 300 via OA6-series modules
• Maximum Pumps: 300 via OA6-series modules
• Control Modules: Up to 50 per pump line + 50 per valve line
• Maximum AMP-3 Sensor Boards: 50
• Maximum Sensors / Detectors: Up to 50 combined
• Solenoid Valve Voltage: 24VAC
• Pump Voltage: 120VAC
• Maximum Device Cable Run: 1,000 ft / 300 m
• Included Sensor Board: AMP-3
• AMP-3 Monitoring: pH, EC, and water temperature
• AMP-3 Connection: RJ12 system connection
• Irrigation Modes: Time-based scheduling, feed-by-volume, and feed-on-demand
• Feed-by-Volume: Supported with optional DFM-1 digital flow meter
• Feed-on-Demand: Supported with optional WCS-1/WCS-2 water-content sensors
• Master Pump Link: Allows multiple pumps to be linked with groups of solenoid valves under common schedules
• Calendar Control: Preset irrigation programs for different days and crop phases
• Connectivity: CAT5/6 Ethernet
• Remote Control: TrolMaster TM+ smartphone app and web portal
• Data: Historical pH, EC, and temperature monitoring
• Included: NFS-2 controller, AMP-3 sensor board, two 12-ft RJ12 cables, and mounting plate
• Application: Multi-room, multi-zone irrigation, fertigation, nutrient monitoring, and precision crop steering
Key Advantage: The Aqua-X Pro NFS-2 combines 300-pump/300-valve control capacity with multi-reservoir pH, EC, and temperature monitoring in a single expandable platform. Its 50-module architecture, AMP-3 sensor support, feed-by-volume capability, moisture-triggered irrigation, master-pump linking, and remote app/web control make it suited to large, complex irrigation and fertigation systems.
