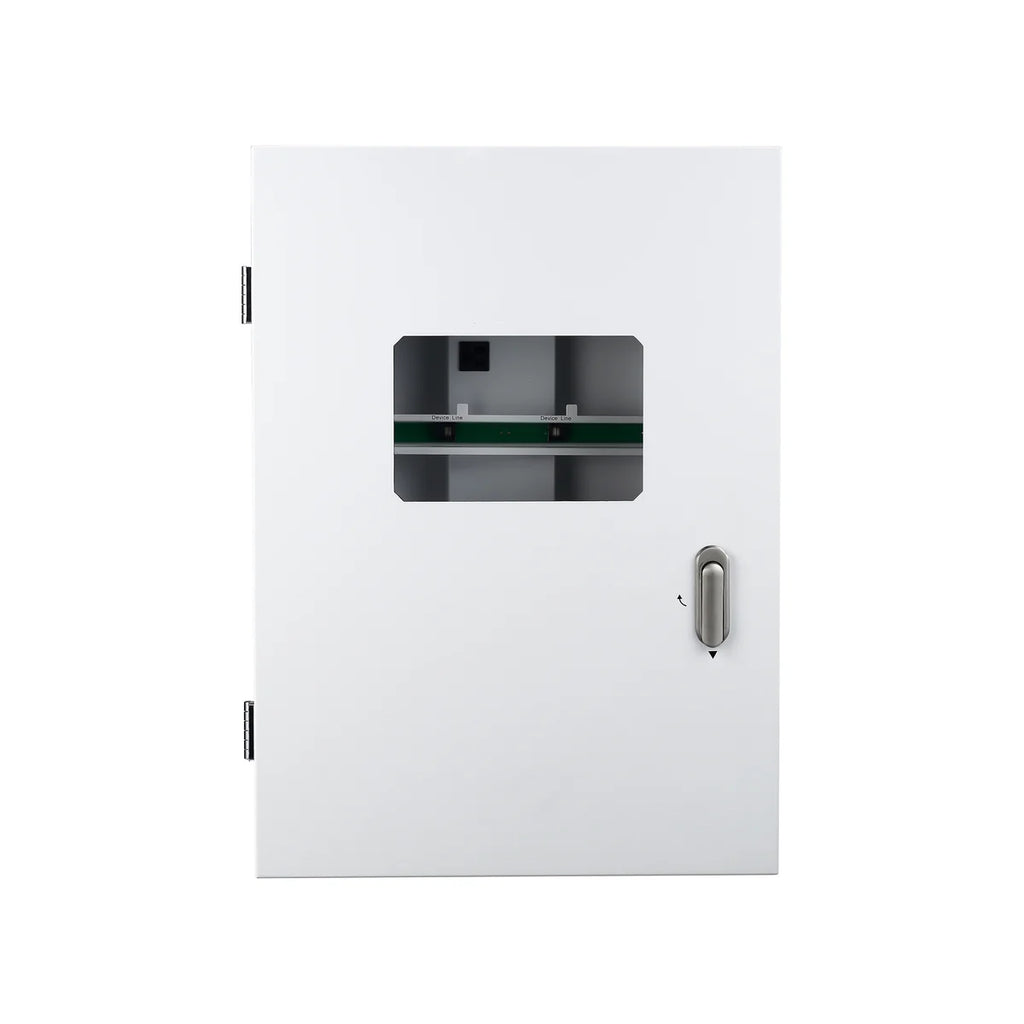

The TrolMaster SCC-3 is a 25-inch industrial-rated modular controller cabinet purpose-built for the Hydro-X Plus (HCS-3) environmental control system. It consolidates the HCS-3 controller, device stations, power modules, and RJ12 wiring into a single IP56-rated enclosure, keeping the control system protected, organized, and easier to maintain. The pre-cut controller opening keeps the Hydro-X Plus touchscreen accessible while the internal wiring remains enclosed.
• Model / SKU: SCC-3
• Compatible Controller: TrolMaster Hydro-X Plus (HCS-3)
• Dimensions: 25" L × 18" W × 6.26" H
• Enclosure Rating: IP56 — NEMA 4X equivalent
• Input Voltage: 120V
• Maximum Amperage: 15A
• Operating Temperature: 32–104°F (0–40°C)
• Power Outlet Configuration: 4 + 1 + 6
• Splitter Board Groups: 5
• Splitter Configuration: 10 ports / 6 ports / 17 ports / 2 × 4-port detachable bars / 6 ports
• RJ12 Capacity: Over 40 aggregate RJ12 ports across five groups
• Controller Opening: Pre-cut opening specifically for the HCS-3 controller
• Cable Management: Integrated RJ12 wiring and power organization
• Construction: Industrial-rated modular enclosure
• Included Long RJ12 Cables: 4
• Included Short RJ12 Cables: 16
• Included OA6 Power Cables: 4
• Included OA6 Screw Set: 10
• Gasket: Included for maintaining the IP56 rating around the controller opening
• Installation: Wall-mounted controller enclosure
• Application: Hydro-X Plus temperature, humidity, CO₂, lighting, and programmable-device installations
Key Advantage: The SCC-3 provides a dedicated, IP56-protected control enclosure with over 40 RJ12 connection points for Hydro-X Plus installations. Its organized splitter layout, integrated power outlets, detachable sections, and included cabling make it easier to install, maintain, and expand a fully loaded HCS-3 control system while keeping the electrical infrastructure protected from the humid cultivation environment.
