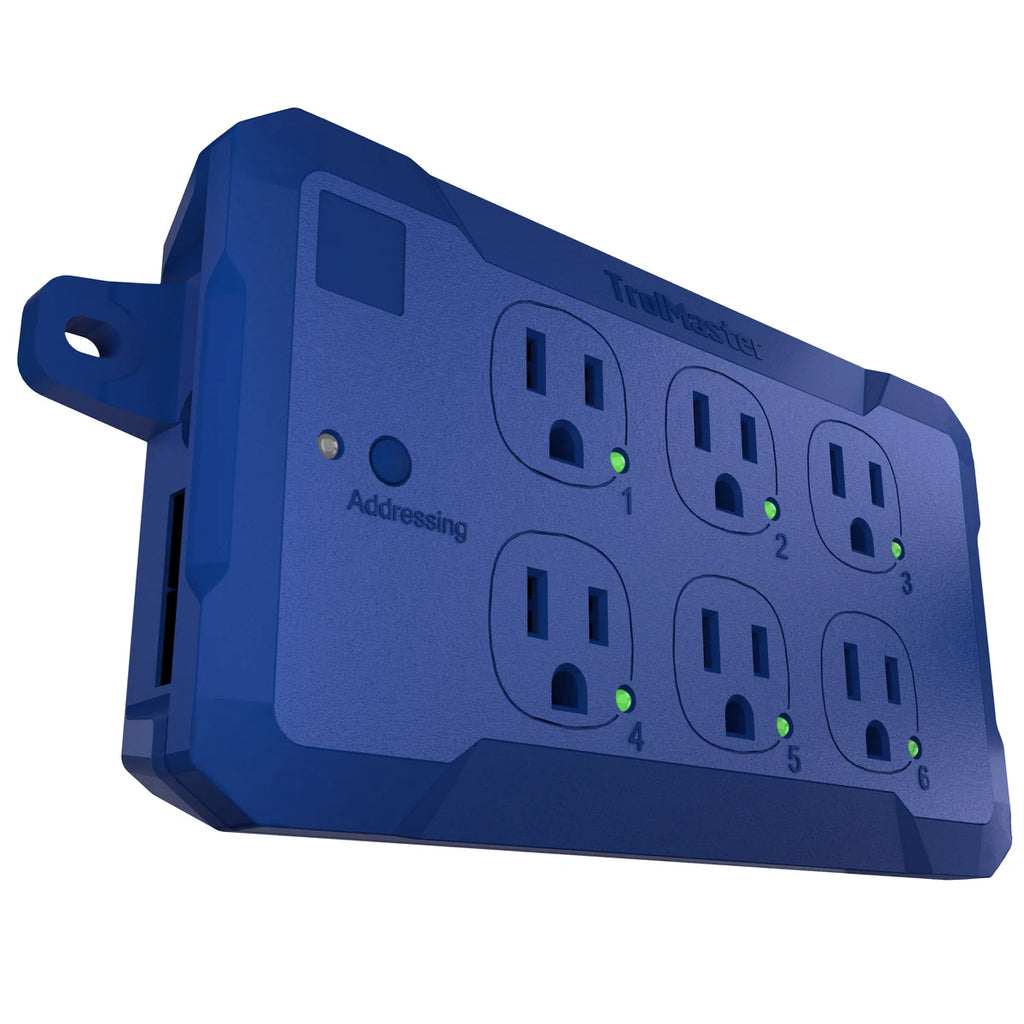

The TrolMaster OA6-110 is a 6-zone control board designed for the Aqua-X Irrigation Control System, providing independent switching of small pumps and solenoid valves. Each of its six outlets supports loads up to 120VAC / 1.5A, with individual LED status indicators. Up to five OA6-110 boards can be daisy-chained to one Aqua-X controller, providing 30 individually controlled outputs across multiple irrigation zones.
• SKU: OA6-110
• Compatible System: TrolMaster Aqua-X Irrigation Control System
• Input Voltage: 120 VAC
• Max Input Current: 9A
• Controlled Outlets: 6 independently controlled outlets
• Output per Outlet: 120VAC / 1.5A maximum
• Maximum Boards: 5 boards per Aqua-X controller
• Maximum Total Outputs: 30 individually controlled outputs
• Connectivity: RJ12 daisy-chain with dual RJ12 sockets
• Status Indicators: Individual LED indicators for each outlet
• Addressing: Built-in addressing button for individual board identification
• Suitable Loads: Small submersible pumps, dosing pumps and solenoid valves
• Working Temperature: 32°F–122°F (0°C–50°C)
• Operating Humidity: ≤90% RH
• Packaging Dimensions: 10.8" L × 6.5" W × 2.4" H (275 × 164 × 62 mm)
• Included: 1× OA6-110 Control Board + 1× 16-ft RJ12 Cable
• Daisy-Chain Expansion: No additional hub required; boards connect directly in series via RJ12
Key Advantage: The OA6-110 provides six independently switched 120V irrigation outputs in one compact module, while allowing up to five boards to be chained to a single Aqua-X controller. This makes it practical for expanding zone-by-zone pump and solenoid control without adding another irrigation controller.
