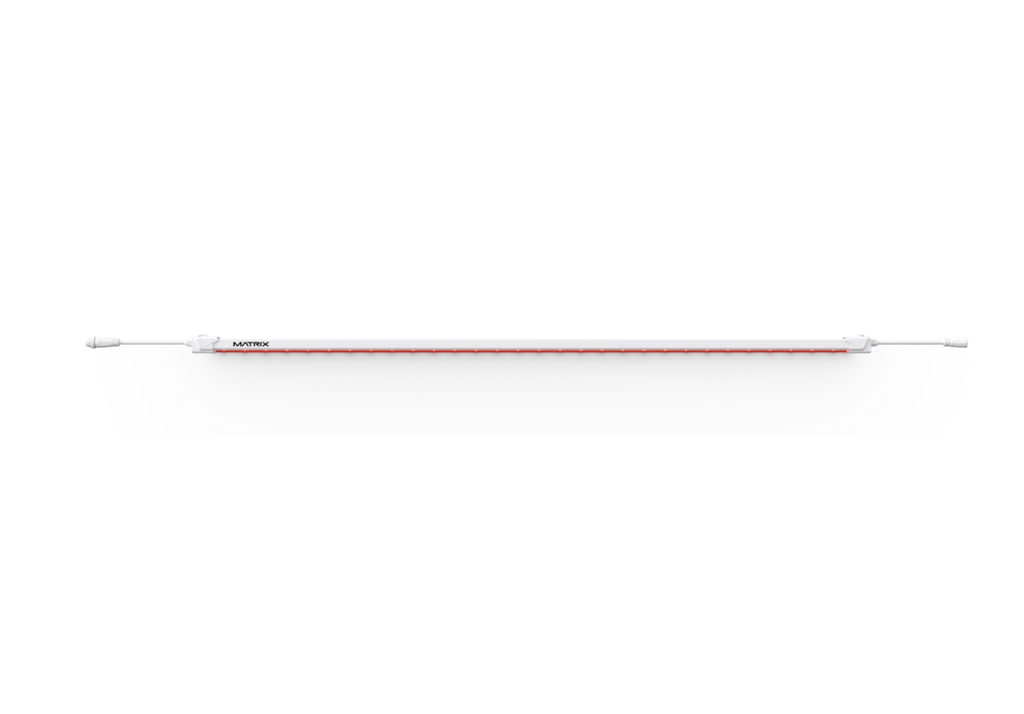

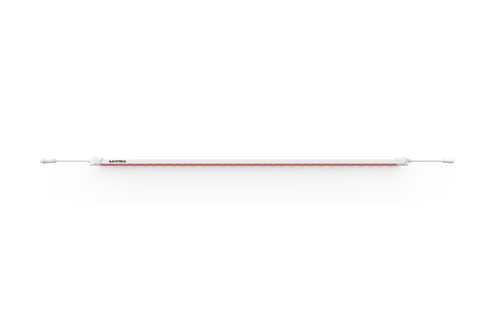

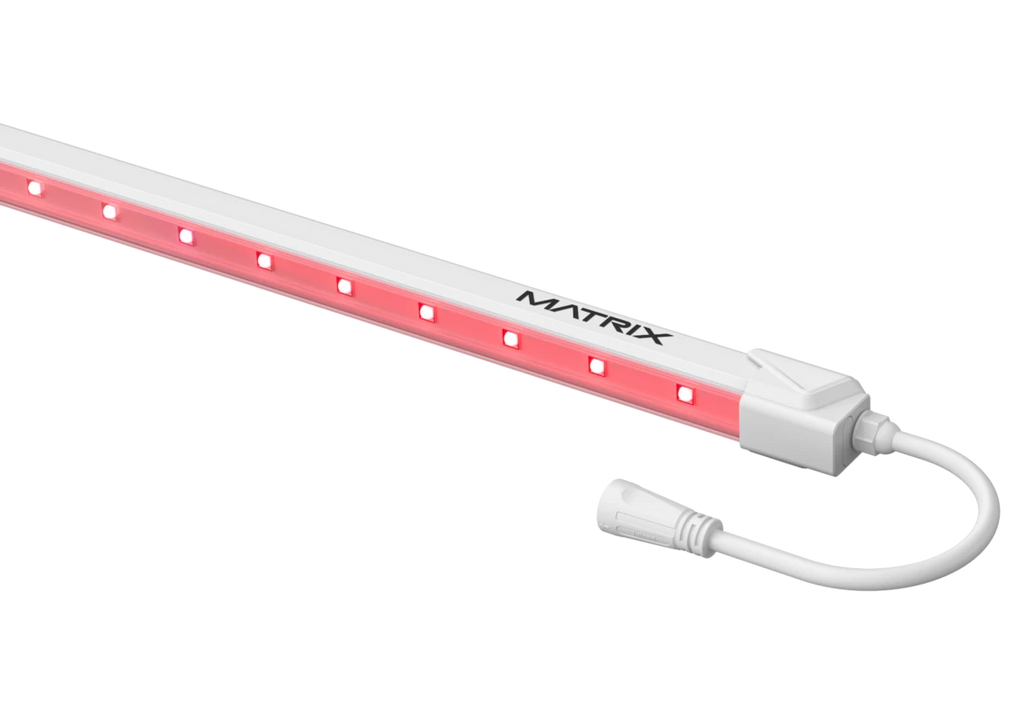

The Matrix FR 18W Far Red Bar is a targeted 730nm far-red supplemental light designed for crop steering, flowering initiation, and End of Day (EOD) treatments. Its narrow 730nm emission provides precise far-red photons for phytochrome conversion, while its IP66-rated construction and daisy-chain capability make it suitable for large-scale commercial deployment.
• System Power: 18W
• Wavelength: 730nm Far Red

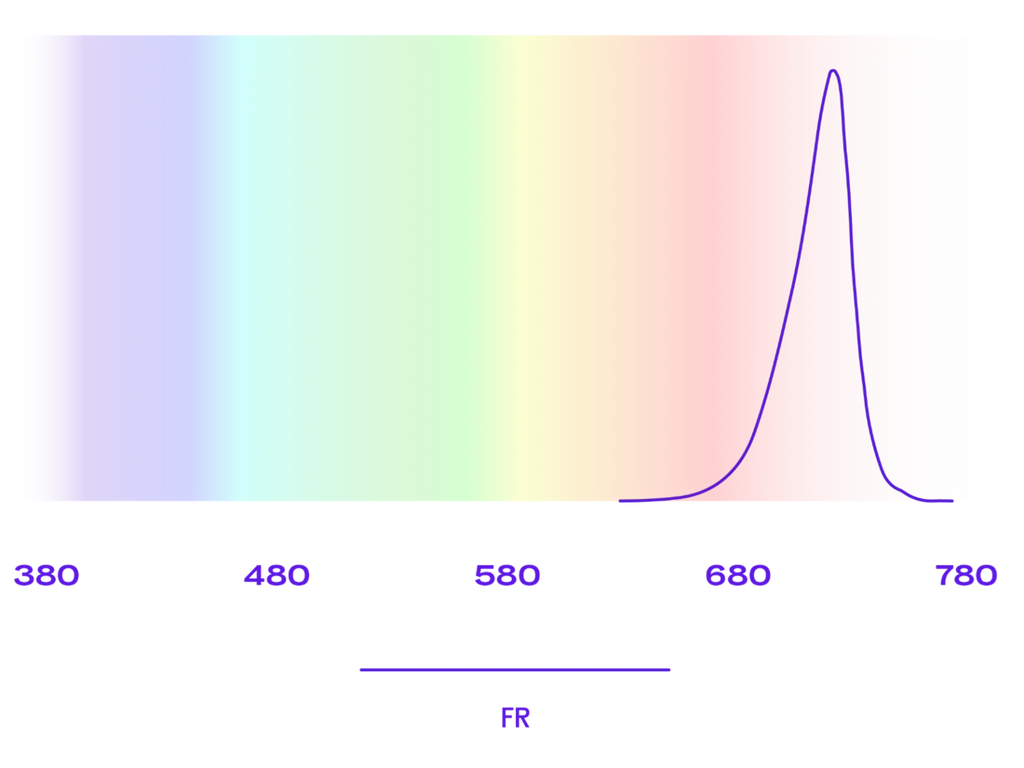

• Spectrum: Narrow-band 730nm far red
• IP Rating: IP66
• Dimming: 0–10V

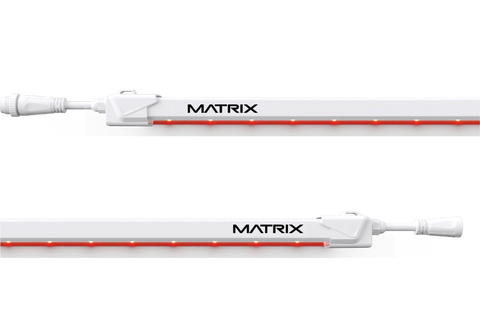

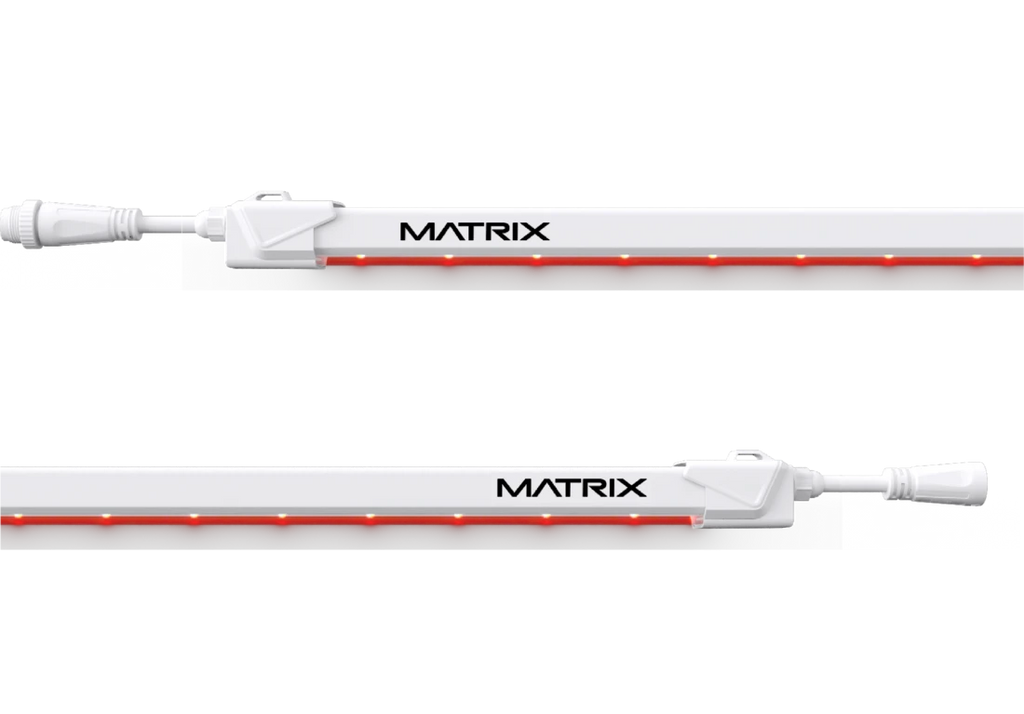

• Daisy Chain: Up to 92 bars
• Weight: 2.07 lbs
• Dimensions: 44.09 × 1.15 × 1.46 in
• Applications: Crop Steering, Flowering, End of Day (EOD) treatments
• Crop Steering: Manipulates phytochrome photoequilibrium to influence vegetative vs. generative growth
• Flowering Control: Supports flowering initiation and flower development through Pfr-to-Pr conversion
• End of Day Treatments: Short far-red bursts after lights-off to simulate natural dusk and promote flowering transitions and crop uniformity
• Construction: Fully sealed IP66 design for commercial growing environments
Key Advantage: Provides precise 730nm far-red supplementation for crop steering and flowering control, with 0–10V dimming and support for up to 92 daisy-chained bars for scalable installations.
