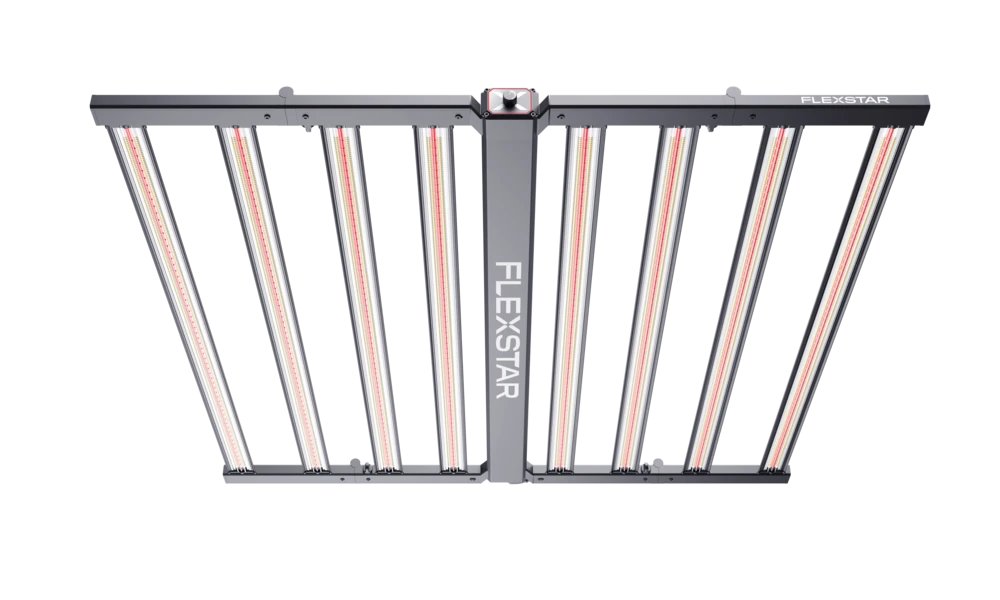

The Flexstar Redline 800W XL is an 8-bar, 4×6 ft commercial LED grow light built around Flexstar’s patented Liquid Optics System (LOS). It delivers 3.2 µmol/J efficacy and up to 2,560 µmol/s PPF, with a fully sealed IP66 body designed for demanding commercial grow-room environments.
• SKU: FLRL-800AR5-XL
• System Power: 800W
• Efficacy (PPE): 3.2 µmol/J
• Max PPF: 2,560 µmol/s
• Coverage: 4 × 6 ft
• Configuration: 8-Bar
• Input Voltage: 120V / 240V / 277V
• Dimming: 0–10V, 25–100%
• Spectrum: Fixed Full Spectrum
• Optical System: Patented Liquid Optics System (LOS)
• Optical Efficiency: 99%
• Thermal Management: Bidirectional silicone-gel passive cooling
• Temperature Reduction: 9–15°F reduction in LED junction temperature
• IP Rating: IP66 — sealed against dust, humidity, pesticide mist, and wash-down
• Rated Lifespan: 54,000 hours Q90 @ 104°F (40°C)
• Control: 0–10V compatible with commercial lighting controllers
• Daisy Chain: Up to 80 fixtures per control channel
• Design: 8-bar XL format for wider 4×6 ft coverage
• Applications: Commercial flowering rooms, large facilities, multi-bay rooms, CO₂-supplemented environments, and multi-tier vertical racks
• Certifications: ETL / DLC / CE / TISI
Key Advantage: Provides 2,560 µmol/s at 3.2 µmol/J across a wider 4×6 ft footprint, combining Flexstar's 99% efficient Liquid Optics System, passive cooling, IP66 protection, and simple 0–10V control.
