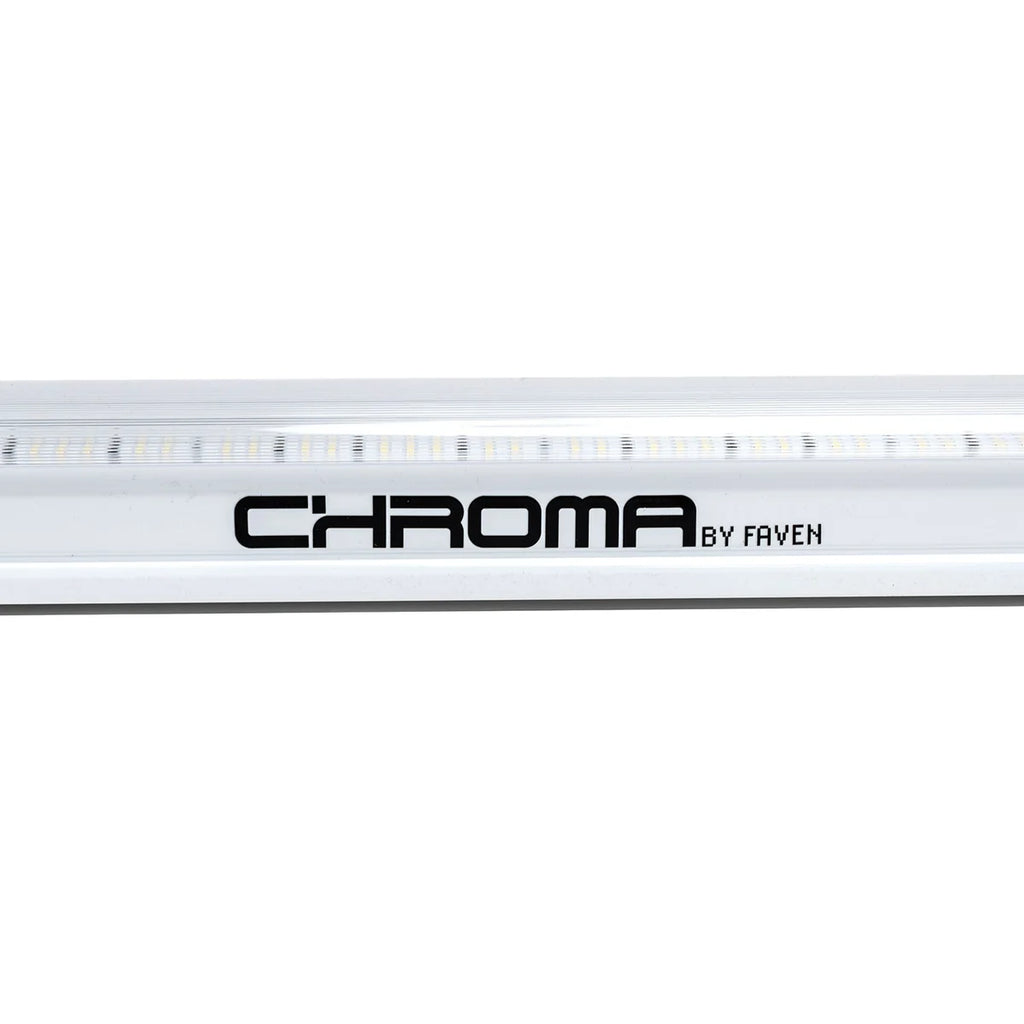

The Faven Chroma 3.0 is a commercial-grade, spectrum-tunable under-canopy LED bar designed to deliver PAR directly to lower bud sites that overhead fixtures cannot reach effectively. It provides 120W of primary spectrum output plus an independent 15W far-red channel, with six programmable spectrum recipes from R4–R9 and red content ranging from 40% to 90%. The fixture is IP66-rated and designed for scalable commercial cultivation.
• SKU: 10-010602-485
• Primary Power: 120W
• Far-Red Channel: 15W — independently controlled
• Total Power: 120W + 15W Far Red
• Efficacy: Up to 2.9 µmol/J
• Spectrum Recipes: R4, R5, R6, R7, R8, R9
• Red Spectrum Range: 40%–90%
• Far-Red Wavelength: Approximately 700–750nm
• Dimensions: 46″ L × 2.9″ W × 3.3″ H
• Input Voltage: 120–277V
• IP Rating: IP66
• Daisy Chain: Up to 17 fixtures/circuit at 240V; 20 fixtures/circuit at 277V
• Control: Dual-driver RS485 protocol
• Controller Compatibility: GrowFlux, Faven CX2, approved RS485 adapters, and 0–10V systems
• Far-Red Control: Fully independent; can operate before lights-on, after lights-off, or alongside any R4–R9 recipe
• Mounting: Faven adjustable stands — 8″, 10″, or 12″ heights
• Applications: Lower-canopy lighting, commercial flower production, multi-tier vertical grows, single-canopy benched rooms, and rolling-bench setups
• Certifications: ETL / DLC / CE / FCC
• Warranty: 5 years
• Controllers: Sold separately
• Power Cords: Sold separately
• Mounting Accessories: Sold separately
Key Advantage: Combines six repeatable spectrum recipes, independently controlled far red, and up to 2.9 µmol/J efficiency in a compact under-canopy bar, allowing commercial growers to target lower bud sites and apply stage-specific spectrum and far-red treatments without changing the primary overhead lighting system.
